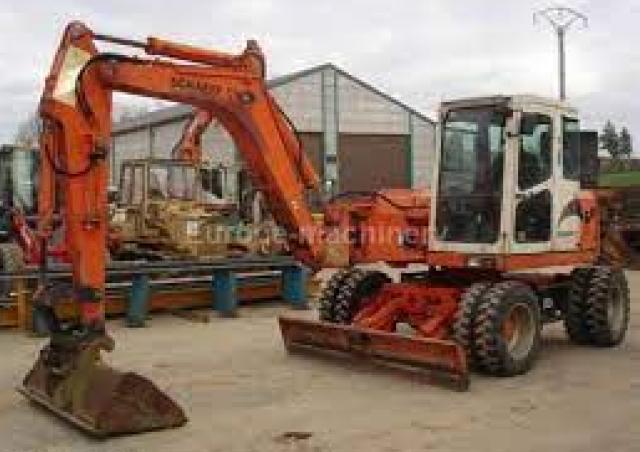

HML 31 Terex-Schaeff Excavator Specs & Dimensions - (1996 - 2001)

Terex-Schaeff is the manufacturer of the wheel excavator model HML 31. Find and download detailed specs and data sheets for this m…

Terex-Schaeff is the manufacturer of the wheel excavator model HML 31. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this HML 31 8.12t machine can provide 53kW or 71 horse power for the wheel excavator. The HML 31 is categorised in the smallest machine segment in the wheel excavators category. The model's dimensions are 5.7m x 2.44m x 3.49m. The bucket of HML 31 has a capacity of 0,38m³ which is average for this type of machine.

Aircondition, Material Handling Excavator and Quick hitch mech. Are not provided on this model as of 2001. There are more detailed specifications and machine descriptions available in the original Terex-Schaeff HML 31 specs data sheet. Download a free data sheet in German from LECTURA Specs.

This model can be acquired for a list price between €87000 and €111000. Production of the HML 31 stopped in 2001. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Terex-Schaeff currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Terex-Schaeff HML 31 specs data sheet on LECTURA Specs today!

Wheel Excavators Terex-Schaeff HML 31

Technical specs - HML 31 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.12 t
Standard tyres
8.25-20
Bucket capacity
0.38 m³
Boom
MB
Transport length
5.7 m
Transport width
2.44 m
Transport height
3.49 m
Dredging depth
3.9 m
Tear-out force
25 kN
Model series
HML
Engine manuf.
Deutz
Engine type
BF4M1012E
Engine power
53 kW
Displacement
3.2 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, max. reach horizontal, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, max. reach horizontal, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex-Schaeff HML 31 FAQ

When was the Terex-Schaeff HML 31 manufactured?

The Terex-Schaeff HML 31 was manufactured from 1996 to 2001.

How much does the Terex-Schaeff HML 31 weigh?

The Terex-Schaeff HML 31 weighs 8.12 tons.

What are the transport dimensions of the Terex-Schaeff HML 31 wheel excavator?

The Terex-Schaeff HML 31 has a transport length of 5.7 meters, a transport width of 2.44 meters, and a transport height of 3.49 meters.

What is the standard tyre size of the Terex-Schaeff HML 31?

The Terex-Schaeff HML 31 is equipped with standard tyres sized 8.25-20.

What is the excavation performance of the Terex-Schaeff HML 31 wheel excavator?

The Terex-Schaeff HML 31 has a dredging depth of 3.9 meters and is equipped with a Monobloc boom.

What is the tear-out force of the Terex-Schaeff HML 31 wheel excavator?

The Terex-Schaeff HML 31 wheel excavator has a tear-out force of 25 kN, which is a measure of force rather than power rating.

What is the bucket capacity of the Terex-Schaeff HML 31 wheel excavator?

The Terex-Schaeff HML 31 has a bucket capacity of 0.38 cubic meters.

How much is a Terex-Schaeff HML 31 Wheel excavator (1996u20132001) worth?

The residual value of the Terex-Schaeff HML 31 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
