HML 22 GA Terex-Schaeff Excavator Specs & Dimensions - (1997 - 2003)

The HML 22 GA mini excavator model is manufactured by Terex-Schaeff. Find and download detailed specs and data sheets for this mac…

The HML 22 GA mini excavator model is manufactured by Terex-Schaeff. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Perkins engine, this HML 22 GA 5.9t machine can provide 44kW or 59 horse power for the mini excavator. This Terex-Schaeff mini excavator belongs to the biggest machine segment in the mini excavators category. The bucket of HML 22 GA has a capacity of 0.27m³ which is average for this type of machine.

Rubber track, Quick hitch mech. And Quick hitch hydr. Are not provided on this model as of 2003. There are more detailed specifications and machine descriptions available in the original Terex-Schaeff HML 22 GA specs data sheet. You can download it for free in German on LECTURA Specs.

The production stopped in 2003, where this HML 22 GA was available at a new list price between €77000 and €98000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Terex-Schaeff currently produces other mini excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Terex-Schaeff HML 22 GA specs data sheet on LECTURA Specs today!

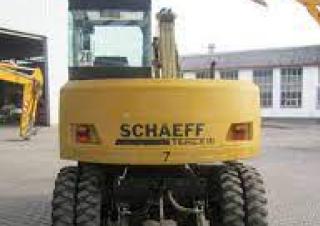

Wheel Excavators Terex-Schaeff HML 22 GA

Technical specs - HML 22 GA Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.9 t
Standard tyres
8.25-20
Bucket capacity min.
0.095 m³
Bucket capacity max.
0.27 m³
Model series
HML
Engine manuf.
Perkins
Engine type
704.30
Engine power
44 kW

More technical details, like: bucket capacity, boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside...

More technical details, like: bucket capacity, boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex-Schaeff HML 22 GA FAQ

When was the Terex-Schaeff HML 22 GA manufactured?

The Terex-Schaeff HML 22 GA was manufactured from 1997 to 2003.

How much does the Terex-Schaeff HML 22 GA weigh?

The Terex-Schaeff HML 22 GA weighs 5.9 tons.

What are the undercarriage tyre specifications of the Terex-Schaeff HML 22 GA wheel excavator?

The Terex-Schaeff HML 22 GA is equipped with standard tyres sized 8.25-20.

What are the bucket capacity specifications of the Terex-Schaeff HML 22 GA wheel excavator?

The Terex-Schaeff HML 22 GA has a bucket capacity ranging from 0.1 to 0.27 cubic meters.

How much is a Terex-Schaeff HML 22 GA Wheel excavator (1997u20132003) worth?

The residual value of the Terex-Schaeff HML 22 GA depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
