HML 21 Terex-Schaeff Excavator Specs & Dimensions - (1995 - 1997)

The HML 21 mini excavator model is manufactured by Terex-Schaeff. Find and download detailed specs and data sheets for this machin…

The HML 21 mini excavator model is manufactured by Terex-Schaeff. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this HML 21 5.1t machine can provide 38kW or 50 horse power for the mini excavator. This Terex-Schaeff mini excavator belongs to the biggest machine segment in the mini excavators category. The bucket of HML 21 has a capacity of 0.2m³ which is average for this type of machine.

Aircondition, Quick hitch mech. And Track adaption are not provided on this model as of 1997. There are more detailed specifications and machine descriptions available in the original Terex-Schaeff HML 21 specs data sheet. Available in German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

The production stopped in 1997, where this HML 21 was available at a new list price between €62000 and €79000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other mini excavators, which range from up to are produced by Terex-Schaeff. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Terex-Schaeff HML 21 specs data sheet on LECTURA Specs today!

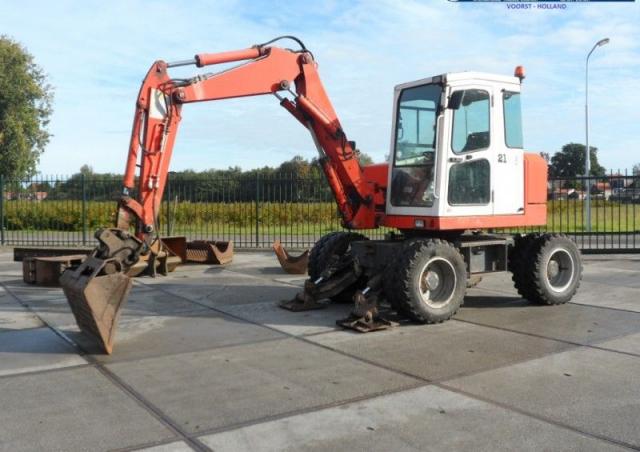

Wheel Excavators Terex-Schaeff HML 21

Technical specs - HML 21 Terex-Schaeff

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.1 t
Standard tyres
12/18/2015
Bucket capacity
0.2 m³
Model series
HML
Engine manuf.
Deutz
Engine type
F4L1011
Engine power
38 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, number of articulated booms, engine manufacturer, rated speed, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, tailswing radius, cab height, ground clearance, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, fuel tank, slew speed, max bucket breakout, mono boom, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Terex-Schaeff HML 21 FAQ

When was the Terex-Schaeff HML 21 manufactured?

The Terex-Schaeff HML 21 was manufactured from 1995 to 1997.

How much does the Terex-Schaeff HML 21 weigh?

The Terex-Schaeff HML 21 weighs 5.1 tons.

What are the undercarriage specifications of the Terex-Schaeff HML 21 wheel excavator?

The Terex-Schaeff HML 21 wheel excavator has standard tyres of size 12/18/2015.

What is the bucket capacity of the Terex-Schaeff HML 21 wheel excavator?

The Terex-Schaeff HML 21 wheel excavator has a bucket capacity of 0.2 cubic meters.

How much is a Terex-Schaeff HML 21 Wheel excavator (1995u20131997) worth?

The residual value of the Terex-Schaeff HML 21 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
