SWEL80 Sinoway Excavator Specs & Dimensions - (2018 - 2026)

Weight: 9.5t – Bucket capacity: 0.35m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 6.932m – Transport width:…

Weight: 9.5t – Bucket capacity: 0.35m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 6.932m – Transport width: 2.238m

Check out detailed dimensions, specifications, information and technical data for Sinoway SWEL80 excavator manufactured between 2018 - 2026. Get more in-depth insight with Sinoway SWEL80 digger specifications. See information, like: Weight: 9.5t – Bucket capacity: 0.35m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 6.932m – Transport width: 2.238m and more.

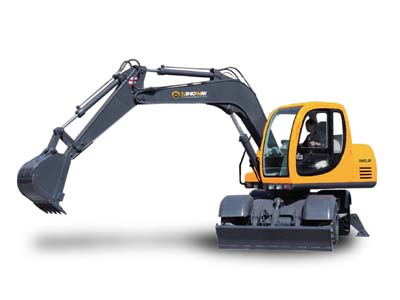

Wheel Excavators Sinoway SWEL80

Technical specs - SWEL80 Sinoway

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.5 t
Bucket capacity
0.35 m³
Boom
MB
Outrigger stabilisers
2 2/4-fold
Transport length
6.932 m
Transport width
2.238 m
Transport height
2.9 m
Max. Reach horizontal
6.5 m
Dredging depth
3.93 m
Tear-out force
58 kN
Travel speed
20 km/h
Model series
SWEL
Engine manuf.
Cummins
Engine type
4BTAA3.9
Engine power
75 kW
Displacement
3.9 l
No. of cylinders
4

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sinoway SWEL80 FAQ

When was the Sinoway SWEL80 manufactured?

The Sinoway SWEL80 was first produced in 2018.

How much does the Sinoway SWEL80 wheel excavator weigh?

The Sinoway SWEL80 wheel excavator weighs 9.5 tons.

What are the transport dimensions of the Sinoway SWEL80 wheel excavator?

The Sinoway SWEL80 has a transport length of 6.93 meters, a transport width of 2.24 meters, and a transport height of 2.9 meters.

What is the travel speed of the Sinoway SWEL80 wheel excavator?

The Sinoway SWEL80 has a travel speed of 20 km/h.

What type of outrigger stabilisers does the Sinoway SWEL80 wheel excavator have?

The Sinoway SWEL80 wheel excavator is equipped with 2-fold outrigger stabilisers.

What are the excavation performance specifications of the Sinoway SWEL80 wheel excavator?

The Sinoway SWEL80 has a dredging depth of 3.93 meters, a maximum horizontal reach of 6.5 meters, and is equipped with a monobloc boom.

What are the power ratings of the Sinoway SWEL80 wheel excavator?

The source data does not provide any power ratings for the Sinoway SWEL80 wheel excavator.

What is the bucket capacity of the Sinoway SWEL80 wheel excavator?

The Sinoway SWEL80 wheel excavator has a bucket capacity of 0.35 cubic meters.

How much is a Sinoway SWEL80 Wheel excavator (2018u20132025) worth?

The residual value of the Sinoway SWEL80 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
