835 M-special Sennebogen Excavator Specs & Dimensions - (2007 - 2013)

Manufactured by Sennebogen, this is the 835 M-special wheel excavator. Find and download detailed specs and data sheets for this m…

Manufactured by Sennebogen, this is the 835 M-special wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this 835 M-special 48t machine can provide 186kW or 249 horse power for the wheel excavator. The Sennebogen 835 M-special can be grouped in the biggest machine segment in the wheel excavators category. The bucket capacity of 835 M-special is 1m³, which is above average for this type of machine.

The 835 M-special is manufactured and distributed with Overload alert and Material Handling Excavator. It has been sold without air Aircondition, Track guidance and Quick hitch hydr. As of 2013. There are more detailed specifications and machine descriptions available in the original Sennebogen 835 M-special specs data sheet. Download a free data sheet in German and English from LECTURA Specs.

The production stopped in 2013, where this 835 M-special was available at a new list price between €639000 and €813000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 14 other wheel excavators, which range from 16.9t up to 165t are produced by Sennebogen. Of these, 850 M, 821 M and also 825 M are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Sennebogen 835 M-special specs data sheet on LECTURA Specs today!

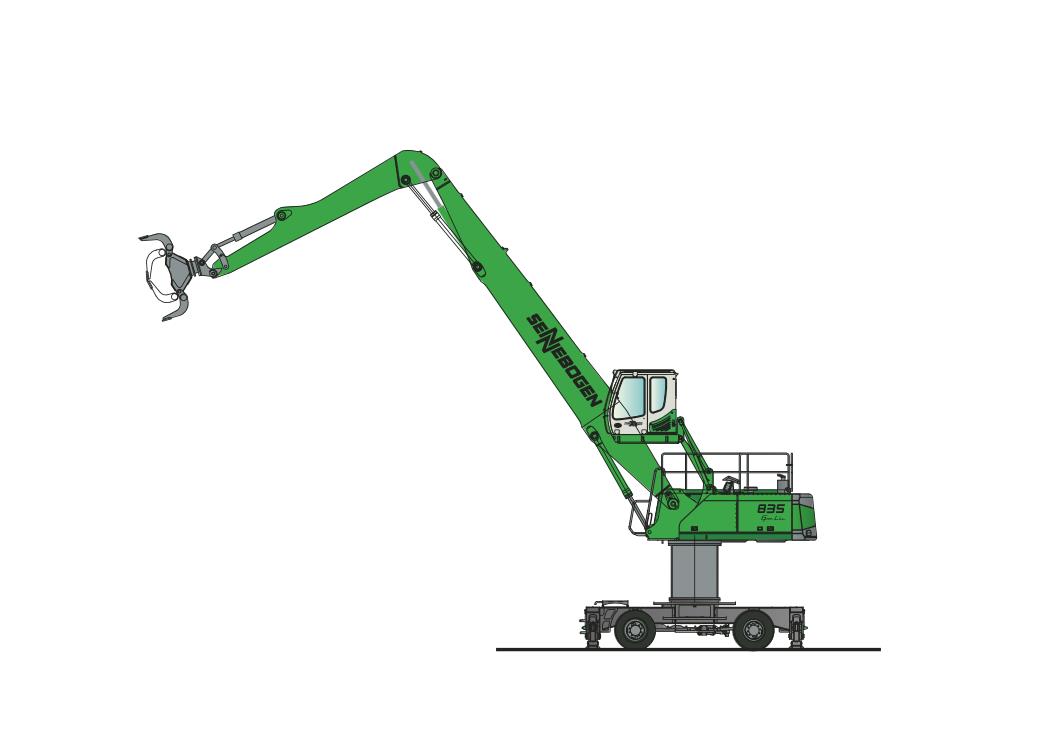

Wheel Excavators Sennebogen 835 M-special

Visit Sennebogen live at

Technical specs - 835 M-special Sennebogen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
48 t
Standard tyres
12.00-20
Bucket capacity
1 m³
Boom
UA
Outrigger stabilisers
2/4 2/4-fold
Max. Reach horizontal
21 m
Model series
M
Engine manuf.
Deutz
Engine type
TCD2013 L06 2V
Engine power
186 kW
Displacement
7.1 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sennebogen 835 M-special FAQ

When was the Sennebogen 835 M-special manufactured?

The Sennebogen 835 M-special was manufactured from 2007 to 2013.

How much does the Sennebogen 835 M-special weigh?

The Sennebogen 835 M-special weighs 48 tons.

What are the undercarriage specifications of the Sennebogen 835 M-special wheel excavator?

The Sennebogen 835 M-special is equipped with standard tyres sized 12.00-20 and features 2/4-fold outrigger stabilisers.

What is the maximum horizontal reach and boom type of the Sennebogen 835 M-special?

The Sennebogen 835 M-special has a maximum horizontal reach of 21 meters and is equipped with a material handling boom.

What is the bucket capacity of the Sennebogen 835 M-special wheel excavator?

The Sennebogen 835 M-special has a bucket capacity of 1 cubic meter.

How much is a Sennebogen 835 M-special Wheel excavator (2007u20132013) worth?

The residual value of the Sennebogen 835 M-special depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
