830 M Sennebogen Excavator Specs & Dimensions - (2011 - 2019)

Model rating
5,00 / 10

The 830 M wheel excavator model is manufactured by Sennebogen. Find and download detailed specs and data sheets for this machine h…

The 830 M wheel excavator model is manufactured by Sennebogen. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 151kW or 202 horse power, delivered from its powerful Cummins engine to the 37t 830 M machine. The 830 M is categorised in the biggest machine segment in the wheel excavators category. The 830 M’s size is 3m x 5.73m x 3.4m. The bucket of 830 M has a capacity of 0,6m³ which is average for this type of machine.

The Sennebogen 830 M has been equipped and sold with Cabin adjustment, Aircondition and Material Handling Excavator. Blade, Diesel particulate filter and Quick hitch hydr. Are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Sennebogen 830 M specs data sheet. Available in German and English, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

The production is still going in 2017, where this 830 M is available at a new list price between €425000 and €542000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Sennebogen models of this type on LECTURA Specs are the 821 M, 850 M and 825 M, and 13 other wheel excavators, which currently range from 16.9t up to 165t are also available. Ranked in the LECTURA index at #51, this 830 M wheel excavator has models that date from 2011 to 2017. Want more detailed specifications? Download the latest Sennebogen 830 M specs data sheet on LECTURA Specs today!

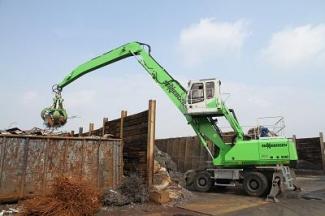

Wheel Excavators Sennebogen 830 M

Visit Sennebogen live at

Technical specs - 830 M Sennebogen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
37 t
Standard tyres
12.00-20
Bucket capacity
0.6 m³
Boom
UA
Outrigger stabilisers
2/4 2/4-fold
Transport length
5.73 m
Transport width
3 m
Transport height
3.4 m
Max. Reach horizontal
17 m
Travel speed
20 km/h
Model series
M
Engine manuf.
Cummins
Engine type
QSB6.7-C203
Engine power
151 kW

More technical details, like: bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
Yes
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sennebogen 830 M FAQ

When was the Sennebogen 830 M manufactured?

The Sennebogen 830 M was manufactured from 2011 to 2019.

How much does the Sennebogen 830 M weigh?

The Sennebogen 830 M weighs 37 tons.

What are the transport dimensions of the Sennebogen 830 M wheel excavator?

The Sennebogen 830 M has a transport length of 5.73 meters, a transport width of 3 meters, and a transport height of 3.4 meters.

What is the travel speed of the Sennebogen 830 M wheel excavator?

The Sennebogen 830 M has a travel speed of 20 km/h.

What are the undercarriage specifications of the Sennebogen 830 M wheel excavator?

The Sennebogen 830 M is equipped with 12.00-20 standard tyres and features 2-fold or 4-fold outrigger stabilisers.

What is the maximum horizontal reach of the Sennebogen 830 M wheel excavator?

The Sennebogen 830 M wheel excavator has a maximum horizontal reach of 17 meters and is equipped with a material handling boom.

What is the bucket capacity of the Sennebogen 830 M wheel excavator?

The Sennebogen 830 M wheel excavator has a bucket capacity of 0.6 cubic meters.

How much is a Sennebogen 830 M Wheel excavator (2011u20132019) worth?

The residual value of the Sennebogen 830 M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
