821 M Sennebogen Excavator Specs & Dimensions - (1997 - 2008)

The 821 M wheel excavator model is manufactured by Sennebogen. Find and download detailed specs and data sheets for this machine h…

The 821 M wheel excavator model is manufactured by Sennebogen. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this 821 M 22t machine can provide 104kW or 139 horse power for the wheel excavator. This Sennebogen wheel excavator belongs to the biggest machine segment in the wheel excavators category. The bucket capacity of 821 M is 0,6m³, which is above average for this type of machine.

The 821 M is manufactured and distributed with Material Handling Excavator and Overload alert. It has been sold without air Quick hitch hydr., Aircondition and Track guidance as of 2008. There are more detailed specifications and machine descriptions available in the original Sennebogen 821 M specs data sheet.

This model can be acquired for a list price between €198000 and €252000. Production of the 821 M stopped in 2008. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 14 other wheel excavators, which range from 16.9t up to 165t are produced by Sennebogen. Of these, 821 M, 825 M and also 850 M are the most frequently visited on LECTURA Specs. Throughout the production cycle of this 821 M wheel excavator, there have been around 14 models that average a price of €57000 for an age of 11 years Want more detailed specifications? Download the latest Sennebogen 821 M specs data sheet on LECTURA Specs today!

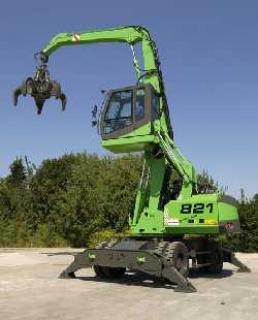

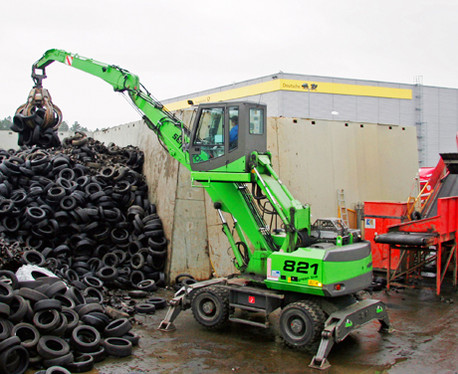

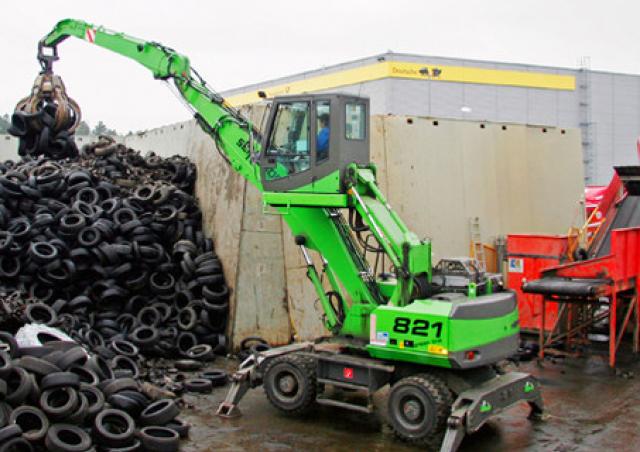

Wheel Excavators Sennebogen 821 M
Wheel Excavators Sennebogen 821 M
Wheel Excavators Sennebogen 821 M
Wheel Excavators Sennebogen 821 M

Visit Sennebogen live at

Technical specs - 821 M Sennebogen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Standard tyres
10.00-20
Bucket capacity
0.6 m³
Boom
VA/UA
Outrigger stabilisers
2/4 2/4-fold
Travel speed
20 km/h
Model series
M
Engine manuf.
Deutz
Engine type
TCD2013 L04 2V
Engine power
104 kW

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside...

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Sennebogen 821 M FAQ

When was the Sennebogen 821 M manufactured?

The Sennebogen 821 M was manufactured from 1997 to 2008.

How much does the Sennebogen 821 M weigh?

The Sennebogen 821 M weighs 22 tons.

What is the travel speed of the Sennebogen 821 M wheel excavator?

The Sennebogen 821 M has a travel speed of 20 km/h.

What are the undercarriage specifications of the Sennebogen 821 M wheel excavator?

The Sennebogen 821 M wheel excavator is equipped with 10.00-20 standard tyres and has 2/4-fold outrigger stabilisers.

What boom features related to excavation performance does the Sennebogen 821 M wheel excavator have?

The Sennebogen 821 M has a material handling boom and an adjustable boom.

What is the bucket capacity of the Sennebogen 821 M wheel excavator?

The Sennebogen 821 M wheel excavator has a bucket capacity of 0.6 cubic meters.

How much is a Sennebogen 821 M Wheel excavator (1997u20132008) worth?

The residual value of the Sennebogen 821 M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
