735 M-HD Sennebogen Excavator Specs & Dimensions - (2005 - 2019)

Manufactured by Sennebogen, this is the 735 M-HD wheel excavator. Find and download detailed specs and data sheets for this machin…

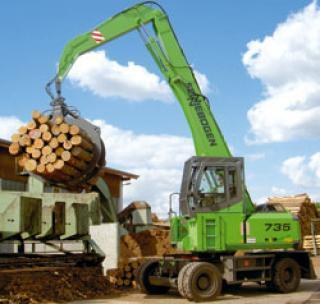

Manufactured by Sennebogen, this is the 735 M-HD wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Sennebogen 735 M-HD is a 38.5t machine with Deutz engine which powers this model with up to 186kW or 249 horse power. The 735 M-HD is categorised in the biggest machine segment in the wheel excavators category. The model's dimensions are 5.75m x 3.6m x 4.7m.

Since 2005, this model has included Overload alert and Material Handling Excavator. It does not include Aircondition, Cabin adjustment and Diesel particulate filter. There are more detailed specifications and machine descriptions available in the original Sennebogen 735 M-HD specs data sheet. Download a free data sheet in German and English from LECTURA Specs.

This model can be acquired for a list price between €531000 and €676000. Production of the 735 M-HD continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 13 other wheel excavators, which range from 16.9t up to 165t are produced by Sennebogen. Of these, 821 M, 825 M and also 850 M are the most frequently visited on LECTURA Specs. Ranked in the LECTURA index at #59, this 735 M-HD wheel excavator has models that date from 2005 to 2017. Want more detailed specifications? Download the latest Sennebogen 735 M-HD specs data sheet on LECTURA Specs today!

Wheel Excavators Sennebogen 735 M-HD

Visit Sennebogen live at

Technical specs - 735 M-HD Sennebogen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
38.5 t
Standard tyres
12.00-24
Boom
UA
Transport length
5.75 m
Transport width
3.6 m
Transport height
4.7 m
Max. Reach horizontal
12.5 m
Travel speed
20 km/h
Model series
M
Engine manuf.
Deutz
Engine type
TCD2013 L06 2V
Engine power
186 kW
Displacement
7.1 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., outrigger stabilisers, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., outrigger stabilisers, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sennebogen 735 M-HD FAQ

When was the Sennebogen 735 M-HD manufactured?

The Sennebogen 735 M-HD was manufactured from 2005 to 2019.

How much does the Sennebogen 735 M-HD weigh?

The Sennebogen 735 M-HD weighs 38.5 tons.

What are the transport dimensions of the Sennebogen 735 M-HD wheel excavator?

The Sennebogen 735 M-HD has a transport length of 5.75 meters, a transport width of 3.6 meters, and a transport height of 4.7 meters.

What is the travel speed of the Sennebogen 735 M-HD wheel excavator?

The Sennebogen 735 M-HD has a travel speed of 20 km/h.

What are the undercarriage specifications of the Sennebogen 735 M-HD wheel excavator?

The Sennebogen 735 M-HD wheel excavator is equipped with standard tyres sized 12.00-24.

What is the maximum horizontal reach and boom type of the Sennebogen 735 M-HD?

The Sennebogen 735 M-HD has a maximum horizontal reach of 12.5 meters and is equipped with a material handling boom.

How much is a Sennebogen 735 M-HD Wheel excavator (2005u20132019) worth?

The residual value of the Sennebogen 735 M-HD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
