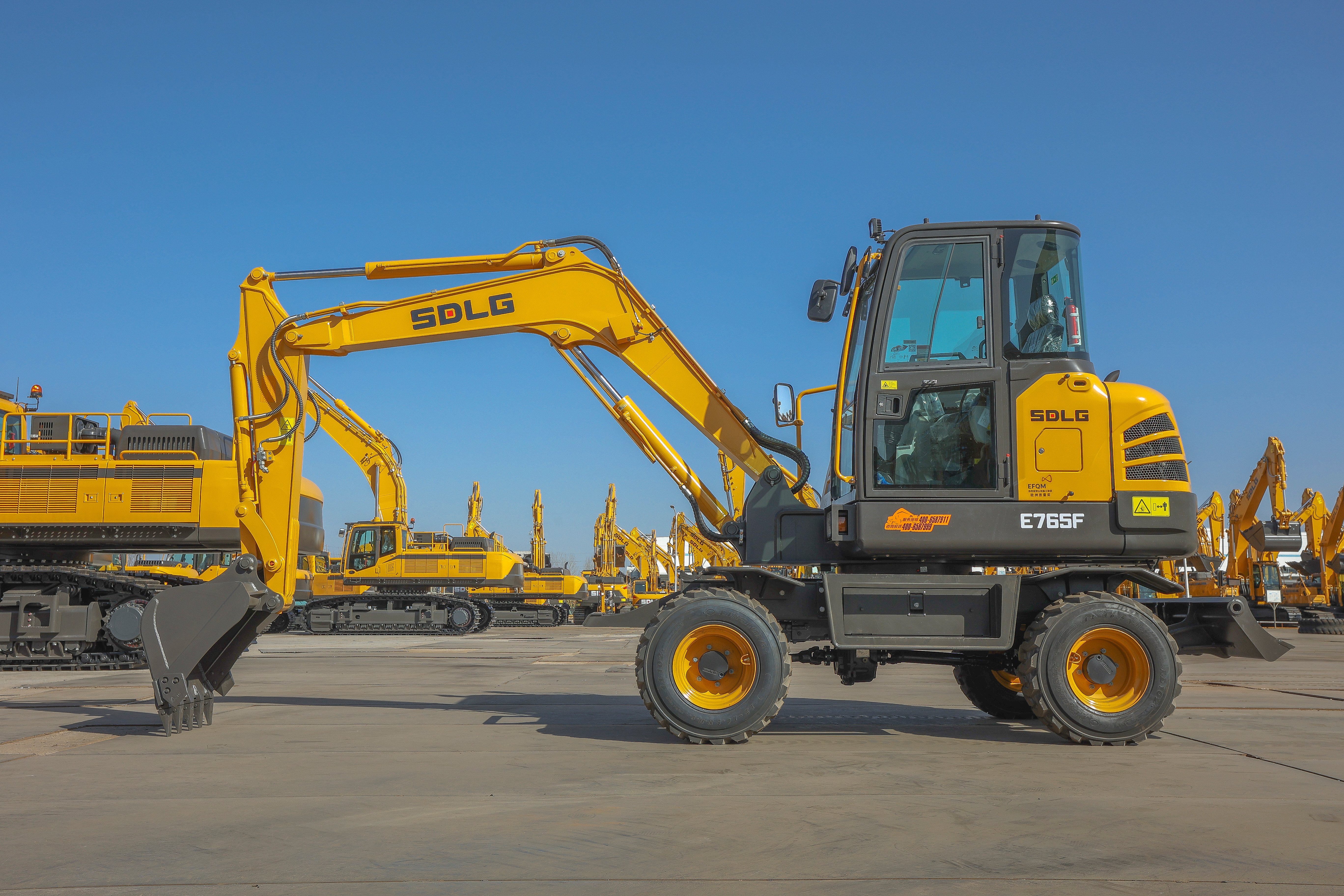

E765F SDLG Excavator Specs & Dimensions - (2026 - 2026)

Weight: 5.7t – Bucket capacity: 0.21m³ – Transport length: 6.045m – Transport width: 1.92m – Transport height: 2.92m – Dredging de…

Weight: 5.7t – Bucket capacity: 0.21m³ – Transport length: 6.045m – Transport width: 1.92m – Transport height: 2.92m – Dredging depth: 3.495m

Check out detailed dimensions, specifications, information and technical data for SDLG E765F excavator manufactured between 2026 - 2026. Get more in-depth insight with SDLG E765F digger specifications. See information, like: Weight: 5.7t – Bucket capacity: 0.21m³ – Transport length: 6.045m – Transport width: 1.92m – Transport height: 2.92m – Dredging depth: 3.495m and more.

Technical specs - E765F SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.7 t
Bucket capacity
0.21 m³
Transport length
6.045 m
Transport width
1.92 m
Transport height
2.92 m
Dredging depth
3.495 m
Travel speed
30 km/h
Model series
F
Engine manuf.
Yanmar
Engine type
4TNV98-EXSLGC
Engine power
39 kW
Displacement
3.319 l
No. of cylinders
4
Cylinder bore x stroke
98x110 mm
Emission level
China Tier 3

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh...

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No
