SY155W Sany Excavator Specs & Dimensions - (2018 - 2020)

Weight: 13.5t – Standard tyres: 10.00-20-16PR – Bucket capacity: 0.58m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport …

Weight: 13.5t – Standard tyres: 10.00-20-16PR – Bucket capacity: 0.58m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 7.69m

Check out detailed dimensions, specifications, information and technical data for Sany SY155W excavator manufactured between 2018 - 2020. Get more in-depth insight with Sany SY155W digger specifications. See information, like: Weight: 13.5t – Standard tyres: 10.00-20-16PR – Bucket capacity: 0.58m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 7.69m and more.

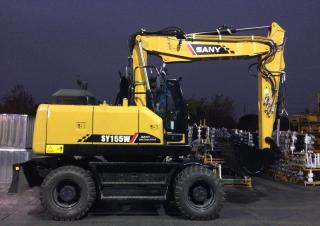

Wheel Excavators Sany SY155W
Wheel Excavators Sany SY155W
Wheel Excavators Sany SY155W
Wheel Excavators Sany SY155W

Visit Sany live at

Technical specs - SY155W Sany

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.5 t
Standard tyres
10.00-20-16PR
Bucket capacity
0.58 m³
Boom
MB
Outrigger stabilisers
2 2/4-fold
Transport length
7.69 m
Transport width
2.49 m
Transport height
3.2 m
Max. Reach horizontal
7.96 m
Dredging depth
4.8 m
Tear-out force
102.3 kN
Turning radius inside
2.31 m
Travel speed
37 km/h
Model series
SY
Engine manuf.
Isuzu
Engine type
4HK1
Engine power
120 kW
Dimension lxwxh
1033x929x1040 mm
Revolutions at max torque
2000 rpm
No. of cylinders
4
Emission level
Tier 3

More technical details, like: bucket capacity min., bucket capacity max., bucket width, dipper length, turning radius outside, displacement, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sany SY155W FAQ

When was the Sany SY155W manufactured?

The Sany SY155W was manufactured from 2018 to 2020.

How much does the Sany SY155W wheel excavator weigh?

The Sany SY155W wheel excavator weighs 13.5 tons.

What are the transport dimensions of the Sany SY155W wheel excavator?

The Sany SY155W has a transport length of 7.69 meters, a transport width of 2.49 meters, and a transport height of 3.2 meters.

What is the travel speed of the Sany SY155W wheel excavator?

The Sany SY155W wheel excavator has a travel speed of 37 km/h.

What are the undercarriage specifications of the Sany SY155W wheel excavator?

The Sany SY155W wheel excavator is equipped with 10.00-20-16PR standard tyres and has 2 outrigger stabilisers.

What is the inside turning radius of the Sany SY155W wheel excavator?

The Sany SY155W wheel excavator has an inside turning radius of 2.31 meters.

What are the excavation performance specifications of the Sany SY155W wheel excavator?

The Sany SY155W wheel excavator has a dredging depth of 4.8 meters, a maximum horizontal reach of 7.96 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Sany SY155W wheel excavator?

The Sany SY155W wheel excavator has a tear-out force of 102.3 kN.

What is the bucket capacity of the Sany SY155W wheel excavator?

The bucket capacity of the Sany SY155W wheel excavator is 0.58 cubic meters.

How much is a Sany SY155W Wheel excavator (2018u20132020) worth?

The residual value of the Sany SY155W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
