REX60W RHINO Excavator Specs & Dimensions - (2017 - 2026)

Weight: 5.98t – Standard tyres: 12-16.5 – Bucket capacity: 0.25m³ – Boom: MB – Transport length: 5.598m – Transport width: 2.035m…

Weight: 5.98t – Standard tyres: 12-16.5 – Bucket capacity: 0.25m³ – Boom: MB – Transport length: 5.598m – Transport width: 2.035m

Check out detailed dimensions, specifications, information and technical data for RHINO REX60W excavator manufactured between 2017 - 2026. Get more in-depth insight with RHINO REX60W digger specifications. See information, like: Weight: 5.98t – Standard tyres: 12-16.5 – Bucket capacity: 0.25m³ – Boom: MB – Transport length: 5.598m – Transport width: 2.035m and more.

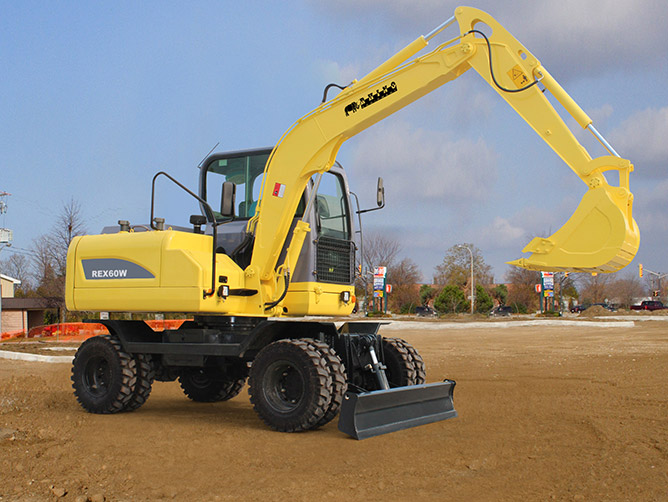

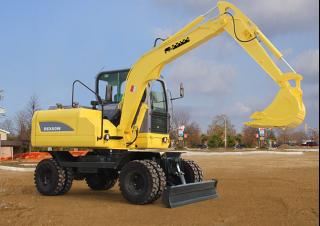

Wheel Excavators RHINO REX60W

Technical specs - REX60W RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.98 t
Standard tyres
12-16.5
Bucket capacity
0.25 m³
Boom
MB
Transport length
5.598 m
Transport width
2.035 m
Transport height
2.905 m
Max. Reach horizontal
5.776 m
Dredging depth
2.857 m
Tear-out force
58 kN
Model series
REX
Engine manuf.
RHINO
Engine type
A498BPG
Engine power
45 kW
Displacement
3.2 l
No. of cylinders
4
Cylinder bore x stroke
75x345 mm
Emission level
Tier 3

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, revolutions at max torque, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

RHINO REX60W FAQ

When was the RHINO REX60W manufactured?

The RHINO REX60W was first produced in 2017.

How much does the RHINO REX60W weigh?

The RHINO REX60W weighs 5.98 tons.

What are the transport dimensions of the RHINO REX60W wheel excavator?

The RHINO REX60W has a transport length of 5.6 meters, a transport width of 2.04 meters, and a transport height of 2.91 meters.

What are the standard tyre specifications of the RHINO REX60W wheel excavator?

The RHINO REX60W wheel excavator has standard tyres sized 12-16.5.

What are the excavation performance specifications of the RHINO REX60W wheel excavator?

The RHINO REX60W has a dredging depth of 2.857 meters, a maximum horizontal reach of 5.776 meters, and is equipped with a monobloc boom.

What is the tear-out force of the RHINO REX60W wheel excavator?

The RHINO REX60W wheel excavator has a tear-out force of 58 kN.

What is the bucket capacity of the RHINO REX60W wheel excavator?

The RHINO REX60W wheel excavator has a bucket capacity of 0.25 cubic meters.

How much is a RHINO REX60W Wheel excavator (2017u20132025) worth?

The residual value of the RHINO REX60W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
