PP150W-IX PowerPlus Excavator Specs & Dimensions - (2017 - 2026)

Weight: 13.5t – Standard tyres: 8.25-20-14PR – Bucket capacity: 0.6m³ – Transport length: 7.51m – Transport width: 2.5m – Transpor…

Weight: 13.5t – Standard tyres: 8.25-20-14PR – Bucket capacity: 0.6m³ – Transport length: 7.51m – Transport width: 2.5m – Transport height: 3.08m

Check out detailed dimensions, specifications, information and technical data for PowerPlus PP150W-IX excavator manufactured between 2017 - 2026. Get more in-depth insight with PowerPlus PP150W-IX digger specifications. See information, like: Weight: 13.5t – Standard tyres: 8.25-20-14PR – Bucket capacity: 0.6m³ – Transport length: 7.51m – Transport width: 2.5m – Transport height: 3.08m and more.

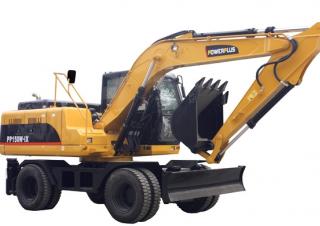

Wheel Excavators PowerPlus PP150W-IX

Technical specs - PP150W-IX PowerPlus

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.5 t
Standard tyres
8.25-20-14PR
Bucket capacity
0.6 m³
Transport length
7.51 m
Transport width
2.5 m
Transport height
3.08 m
Max. Reach horizontal
7.59 m
Dredging depth
4.46 m
Tear-out force
85 kN
Model series
PP
Engine manuf.
Cummins
Engine type
4BTAA3.9-C125
Engine power
93.2 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

PowerPlus PP150W-IX FAQ

When was the PowerPlus PP150W-IX manufactured?

The PowerPlus PP150W-IX was first produced in 2017.

How much does the PowerPlus PP150W-IX weigh?

The PowerPlus PP150W-IX weighs 13.5 tons.

What are the transport dimensions of the PowerPlus PP150W-IX wheel excavator?

The PowerPlus PP150W-IX has a transport length of 7.51 meters, a transport width of 2.5 meters, and a transport height of 3.08 meters.

What are the standard tyres of the PowerPlus PP150W-IX wheel excavator?

The PowerPlus PP150W-IX wheel excavator is equipped with standard tyres sized 8.25-20-14PR.

What are the dredging depth and maximum horizontal reach of the PowerPlus PP150W-IX wheel excavator?

The PowerPlus PP150W-IX has a dredging depth of 4.46 meters and a maximum horizontal reach of 7.59 meters.

What is the tear-out force of the PowerPlus PP150W-IX wheel excavator?

The PowerPlus PP150W-IX wheel excavator has a tear-out force of 85 kN.

What is the bucket capacity of the PowerPlus PP150W-IX wheel excavator?

The bucket capacity of the PowerPlus PP150W-IX wheel excavator is 0.6 cubic meters.
