MH 6.5 O&K Excavator Specs & Dimensions - (2000 - 2004)

O&K is the manufacturer of the wheel excavator model MH 6.5. Find and download detailed specs and data sheets for this machine…

O&K is the manufacturer of the wheel excavator model MH 6.5. Find and download detailed specs and data sheets for this machine here.

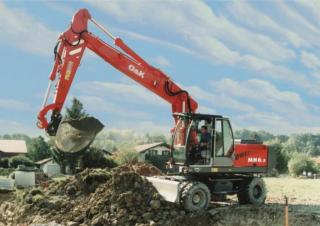

This wheel excavator is built to provide up to 123kW or 164 horse power, delivered from its powerful Deutz engine to the 22.1t MH 6.5 machine. This O&K wheel excavator belongs to the biggest machine segment in the wheel excavators category. The MH 6.5’s size is 2.75m x 10.31m x 3.14m. The bucket of MH 6.5 has a capacity of 0,5m³ which is average for this type of machine.

It does not include Diesel particulate filter, Cabin adjustment and Overload alert. There are more detailed specifications and machine descriptions available in the original O&K MH 6.5 specs data sheet. You can download it for free in German on LECTURA Specs.

The production stopped in 2004, where this MH 6.5 was available at a new list price between €214000 and €273000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, other wheel excavators, which range from up to are produced by O&K. Of these, are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest O&K MH 6.5 specs data sheet on LECTURA Specs today!

Wheel Excavators O&K MH 6.5

Technical specs - MH 6.5 O&K

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22.1 t
Standard tyres
10.00-20
Bucket capacity
0.5 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
10.31 m
Transport width
2.75 m
Transport height
3.14 m
Max. Reach horizontal
12.8 m
Dredging depth
6 m
Model series
MH
Engine manuf.
Deutz
Engine type
BF6M1013E
Engine power
123 kW
Displacement
7.146 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity min., bucket capacity max., tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

O&K MH 6.5 FAQ

When was the O&K MH 6.5 manufactured?

The O&K MH 6.5 was manufactured from 2000 to 2004.

How much does the O&K MH 6.5 wheel excavator weigh?

The O&K MH 6.5 wheel excavator weighs 22.1 tons.

What are the transport dimensions of the O&K MH 6.5 wheel excavator?

The O&K MH 6.5 has a transport length of 10.31 meters, a transport width of 2.75 meters, and a transport height of 3.14 meters.

What are the undercarriage specifications of the O&K MH 6.5 wheel excavator?

The O&K MH 6.5 wheel excavator is equipped with 10.00-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the O&K MH 6.5 wheel excavator?

The O&K MH 6.5 wheel excavator has a dredging depth of 6 meters, a maximum horizontal reach of 12.8 meters, and features an adjustable boom.

What is the bucket capacity of the O&K MH 6.5 wheel excavator?

The O&K MH 6.5 wheel excavator has a bucket capacity of 0.5 cubic meters.

How much is a O&K MH 6.5 Wheel excavator (2000u20132004) worth?

The residual value of the O&K MH 6.5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
