714 MW * Mecalac Excavator Specs & Dimensions - (2003 - 2010)

Model rating
4,17 / 10

The 714 MW * wheel excavator model is manufactured by Mecalac. Find and download detailed specs and data sheets for this machine h…

The 714 MW * wheel excavator model is manufactured by Mecalac. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this 714 MW * 13t machine can provide 88kW or 118 horse power for the wheel excavator. This Mecalac wheel excavator belongs to the smallest machine segment in the wheel excavators category. The 714 MW *’s size is 2.5m x 4m x 3.13m. The bucket of 714 MW * has a capacity of 0,63m³ which is average for this type of machine.

Since 2003, this model has included Overload alert and Blade. It has been sold without air Track guidance, Quick hitch mech. And Quick hitch hydr. As of 2010. There are more detailed specifications and machine descriptions available in the original Mecalac 714 MW * specs data sheet. You can download it for free in Spanish, Italian, English and French on LECTURA Specs.

This model can be acquired for a list price between €127000 and €161000. Production of the 714 MW * stopped in 2010. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Mecalac currently produces 2 other wheel excavators, which range from 9.7t up to 13.3t - the most visited on LECTURA Specs are 714 MW e, 12 MTX. Currently, 2 models of the 714 MW * wheel excavator exist, at an average sale value of €92800 at 11 years of age. Want more detailed specifications? Download the latest Mecalac 714 MW * specs data sheet on LECTURA Specs today!

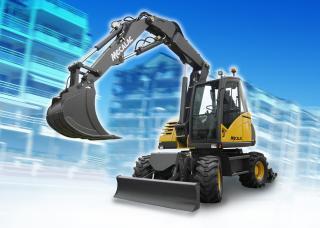

Wheel Excavators Mecalac 714 MW *

Technical specs - 714 MW * Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13 t
Standard tyres
10.00-20
Bucket capacity
0.63 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
4 m
Transport width
2.5 m
Transport height
3.13 m
Max. Reach horizontal
8.9 m
Dredging depth
5 m
Tear-out force
6.2 kN
Bucket width
1 m
Model series
MW
Engine manuf.
Deutz
Engine type
BF4M2012C
Engine power
88 kW
Displacement
3.192 l
Revolutions at max torque
2300 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 714 MW * FAQ

When was the Mecalac 714 MW * manufactured?

The Mecalac 714 MW * was manufactured from 2003 to 2010.

How much does the Mecalac 714 MW * weigh?

The Mecalac 714 MW * weighs 13 tons.

What are the transport dimensions of the Mecalac 714 MW * wheel excavator?

The Mecalac 714 MW * has a transport length of 4 meters, a transport width of 2.5 meters, and a transport height of 3.13 meters.

What are the undercarriage specifications of the Mecalac 714 MW * wheel excavator?

The Mecalac 714 MW * wheel excavator is equipped with 10.00-20 standard tyres and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Mecalac 714 MW * wheel excavator?

The Mecalac 714 MW * wheel excavator has an adjustable boom, a maximum horizontal reach of 8.9 meters, and a dredging depth of 5 meters.

What is the tear-out force of the Mecalac 714 MW * wheel excavator?

The Mecalac 714 MW * wheel excavator has a tear-out force of 6.2 kN.

What are the bucket specifications of the Mecalac 714 MW * wheel excavator?

The Mecalac 714 MW * wheel excavator has a bucket capacity of 0.63 cubic meters and a bucket width of 1 meter.

How much is a Mecalac 714 MW * Wheel excavator (2003u20132010) worth?

The residual value of the Mecalac 714 MW * depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
