14 MBX Mecalac Excavator Specs & Dimensions - (2002 - 2008)

The 14 MBX wheel excavator model is manufactured by Mecalac. Find and download detailed specs and data sheets for this machine her…

The 14 MBX wheel excavator model is manufactured by Mecalac. Find and download detailed specs and data sheets for this machine here.

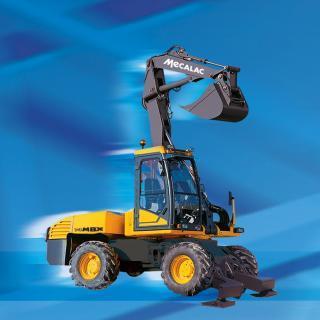

The Mecalac 14 MBX is a 13.32t machine with Cummins engine which powers this model with up to 82kW or 109 horse power. The Mecalac 14 MBX can be grouped in the smallest machine segment in the wheel excavators category. The model's dimensions are 6.1m x 2.49m x 3.22m. The bucket of 14 MBX has a capacity of 0,5m³ which is average for this type of machine.

The Mecalac 14 MBX has been equipped and sold with Overload alert. It does not include Blade, Track guidance and Cabin adjustment. There are more detailed specifications and machine descriptions available in the original Mecalac 14 MBX specs data sheet. You can download it for free in German on LECTURA Specs.

The production stopped in 2008, where this 14 MBX was available at a new list price between €132000 and €168000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Mecalac models of this type on LECTURA Specs are the 12 MTX and 714 MW e, and 2 other wheel excavators, which currently range from 9.7t up to 13.3t are also available. Currently, 2 models of the 14 MBX wheel excavator exist, at an average sale value of €17800 at 12 years of age. Want more detailed specifications? Download the latest Mecalac 14 MBX specs data sheet on LECTURA Specs today!

Wheel Excavators Mecalac 14 MBX

Technical specs - 14 MBX Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.32 t
Standard tyres
18x22.5
Bucket capacity
0.5 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
6.1 m
Transport width
2.49 m
Transport height
3.22 m
Max. Reach horizontal
7.825 m
Dredging depth
4.65 m
Tear-out force
4.6 kN
Bucket width
0.95 m
Model series
MBX
Engine manuf.
Cummins
Engine type
4BTA3.9C
Engine power
82 kW
Displacement
3.922 l
Revolutions at max torque
1300 rpm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, total number of dippers - mono...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, total number of dippers - mono, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 14 MBX FAQ

When was the Mecalac 14 MBX manufactured?

The Mecalac 14 MBX was manufactured from 2002 to 2008.

How much does the Mecalac 14 MBX wheel excavator weigh?

The Mecalac 14 MBX wheel excavator weighs 13.32 tons.

What are the transport dimensions of the Mecalac 14 MBX wheel excavator?

The Mecalac 14 MBX has a transport length of 6.1 meters, a transport width of 2.49 meters, and a transport height of 3.22 meters.

What are the undercarriage specifications of the Mecalac 14 MBX wheel excavator?

The Mecalac 14 MBX is equipped with standard tyres sized 18x22.5 and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Mecalac 14 MBX wheel excavator?

The Mecalac 14 MBX has a dredging depth of 4.65 meters, a maximum horizontal reach of 7.825 meters, and features an adjustable boom.

What power rating information is available for the Mecalac 14 MBX wheel excavator?

The source data does not provide any power rating information for the Mecalac 14 MBX wheel excavator.

What are the specifications of the primary work tool on the Mecalac 14 MBX wheel excavator?

The primary work tool of the Mecalac 14 MBX has a bucket capacity of 0.5 cubic meters and a bucket width of 0.95 meters.

How much is a Mecalac 14 MBX Wheel excavator (2002u20132008) worth?

The residual value of the Mecalac 14 MBX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
