12MTX Mecalac Excavator Specs & Dimensions - (2016 - 2021)

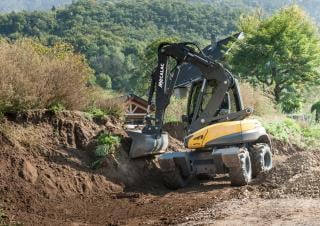

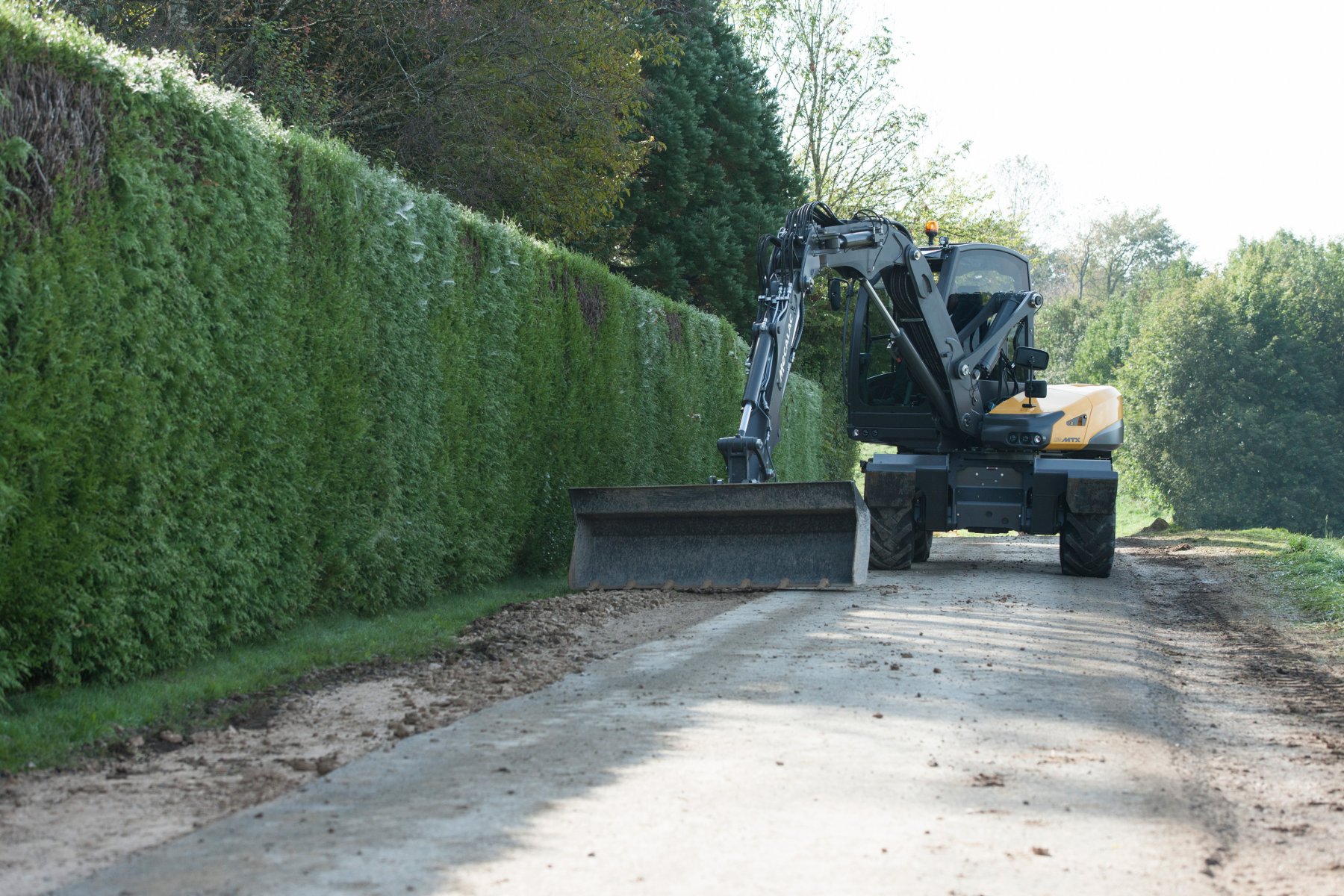

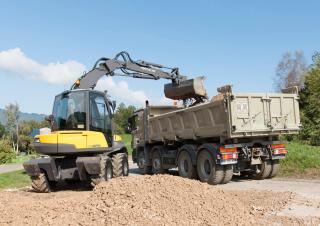

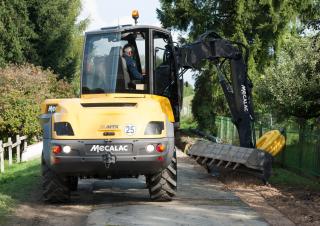

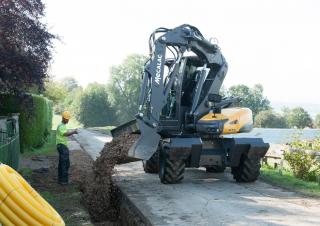

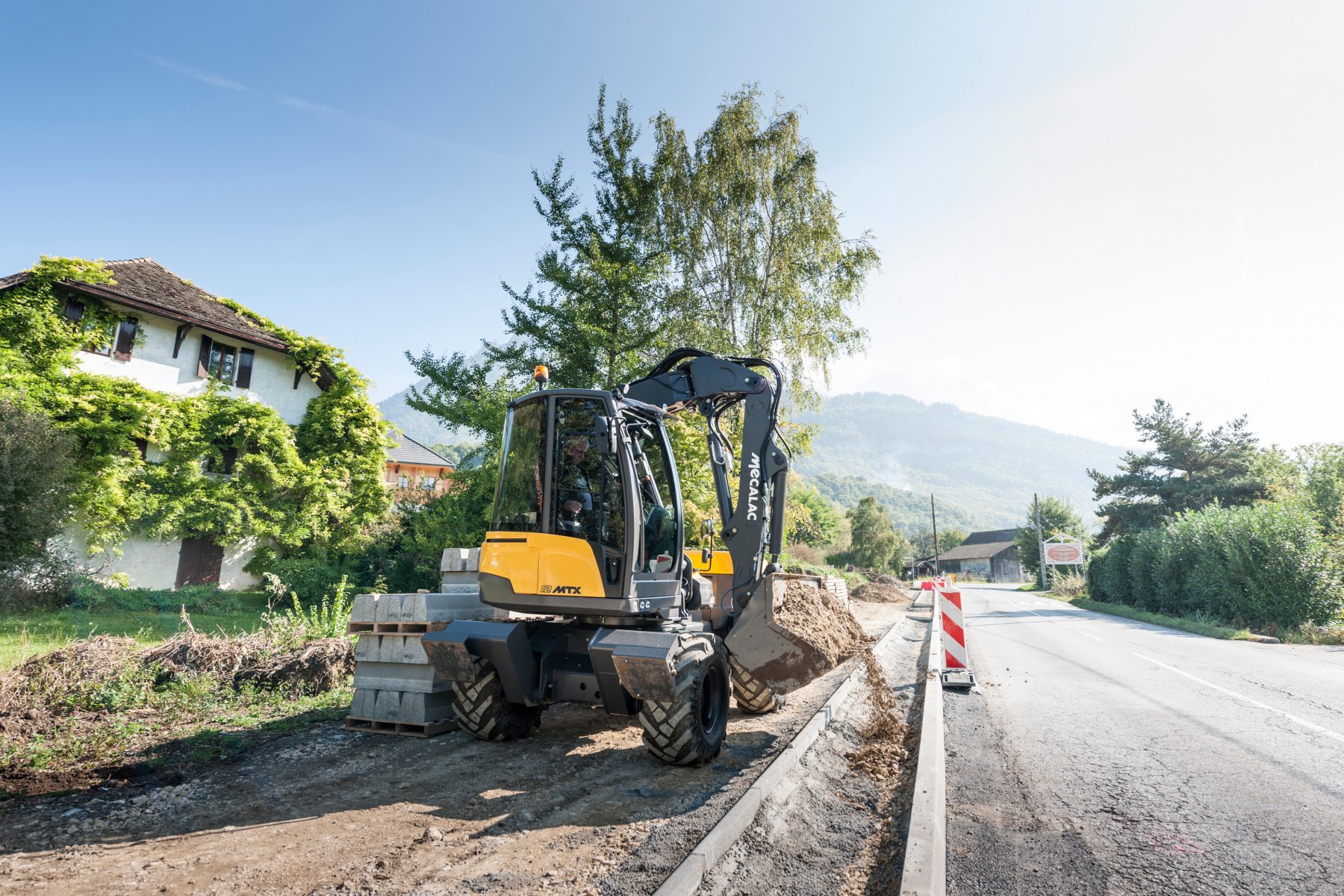

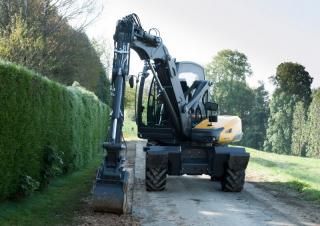

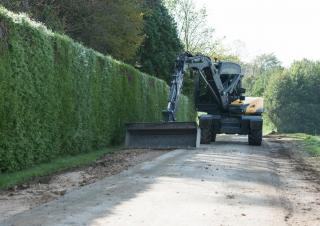

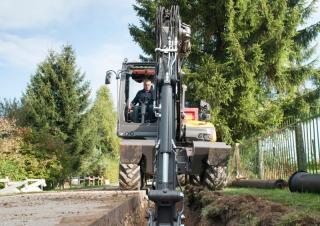

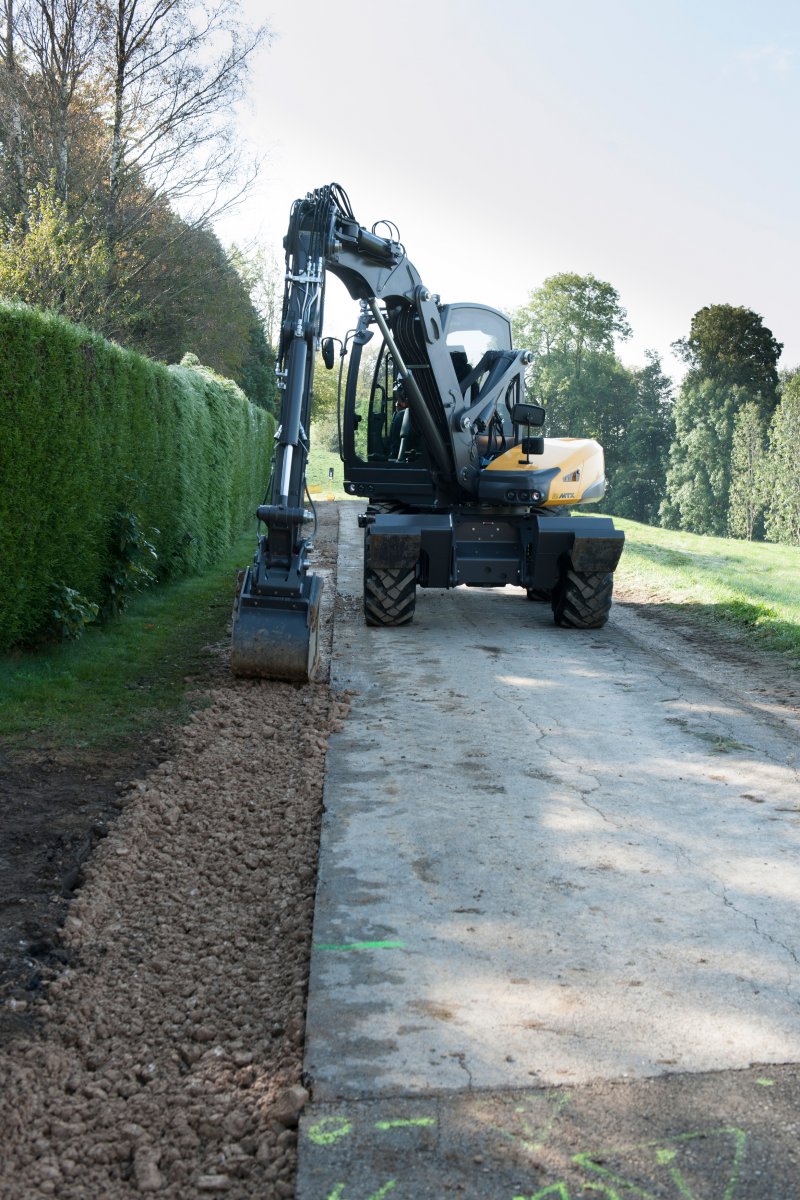

Manufactured by Mecalac, this is the 12 MTX wheel excavator. Find and download detailed specs and data sheets for this machine her…

Manufactured by Mecalac, this is the 12 MTX wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this 12 MTX 9.7t machine can provide 85kW or 113 horse power for the wheel excavator. The 12 MTX is categorised in the smallest machine segment in the wheel excavators category. The 12 MTX’s size is 2.38m x 4.6m x 3.46m. The bucket capacity of 12 MTX is 0,41m³, which is above average for this type of machine.

Quick hitch mech., Diesel particulate filter and Blade are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original Mecalac 12 MTX specs data sheet.

This model can be acquired for a list price between €151000 and €193000. Production of the 12 MTX continues in 2017. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Mecalac models of this type on LECTURA Specs are the 714 MW e, and 1 other wheel excavators, which currently range from 13.3t up to 13.3t are also available. Ranked in the LECTURA index at #85, this 12 MTX wheel excavator has models that date from 2016 to 2017. Want more detailed specifications? Download the latest Mecalac 12 MTX specs data sheet on LECTURA Specs today!

12MTX

Years of manufacture: 2016—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 12MTX Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.7 t

Standard tyres: 405/70-20

Bucket capacity: 0.565 m³

Outrigger stabilisers: 2 2/4-fold

Transport length: 4.6 m

Transport width: 2.25 m

Transport height: 3.06 m

Max. Reach horizontal: 7.125 m

Dredging depth: 4.1 m

Tear-out force: 34 kN

Bucket width: 1.2 m

Turning radius inside: 2.63 m

Turning radius outside: 4.91 m

Travel speed: 32 km/h

Model series: MTX

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 85 kW

Displacement: 3.6 l

Revolutions at max torque: 1600 rpm

Max. torque: 460 Nm

No. of cylinders: 4

Emission level: Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., boom, dipper length, dimension lxwxh, cylinder bore x stroke, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, telematics available, emission rating, engine manufacturer, engine model, auto idle, engine auto shut off, rated speed, engine output - net, engine torque, torque speed, transmission type, number of tyres - standard, tyre size - standard, service brake type, service brake actuation, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, overall width - stabilisers down, dump clearance height - articulated boom, dig depth - articulated boom, fuel tank, min capacity, max capacity, slew speed, sound level external, dipper standard, boost tearout artic, max bucket breakout, mono boom, max bucket breakout, artic boom, number of main pumps, transmission pump, main pumps - maximum flow, transmission pump flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Blade: No
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Track guidance: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Download datasheets (PDF)

Mecalac 12MTX FAQ

When was the Mecalac 12MTX manufactured?

The Mecalac 12MTX was manufactured from 2016 to 2021.

How much does the Mecalac 12MTX wheel excavator weigh?

The Mecalac 12MTX wheel excavator weighs 9.7 tons.

What are the transport dimensions of the Mecalac 12MTX wheel excavator?

The Mecalac 12MTX has a transport length of 4.6 meters, a transport width of 2.25 meters, and a transport height of 3.06 meters.

What is the travel speed of the Mecalac 12MTX wheel excavator?

The Mecalac 12MTX has a travel speed of 32 km/h.

What are the undercarriage specifications of the Mecalac 12MTX wheel excavator?

The Mecalac 12MTX is equipped with standard tyres sized 405/70-20 and has 2 outrigger stabilisers.

What are the maneuverability specifications of the Mecalac 12MTX wheel excavator?

The Mecalac 12MTX has an outside turning radius of 4.91 meters and an inside turning radius of 2.63 meters.

What are the excavation performance specifications of the Mecalac 12MTX wheel excavator?

The Mecalac 12MTX has a dredging depth of 4.1 meters and a maximum horizontal reach of 7.125 meters.

What is the tear-out force of the Mecalac 12MTX wheel excavator?

The Mecalac 12MTX has a tear-out force of 34 kN.

What are the specifications of the primary work tool bucket on the Mecalac 12MTX?

The primary work tool bucket of the Mecalac 12MTX has a capacity of 0.565 cubic meters and a width of 1.2 meters.

How much is a Mecalac 12MTX Wheel excavator (2016u20132021) worth?

The residual value of the Mecalac 12MTX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
