12 MTX Mecalac Excavator Specs & Dimensions - (2015 - 2016)

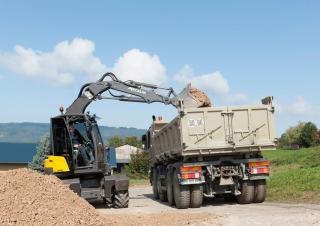

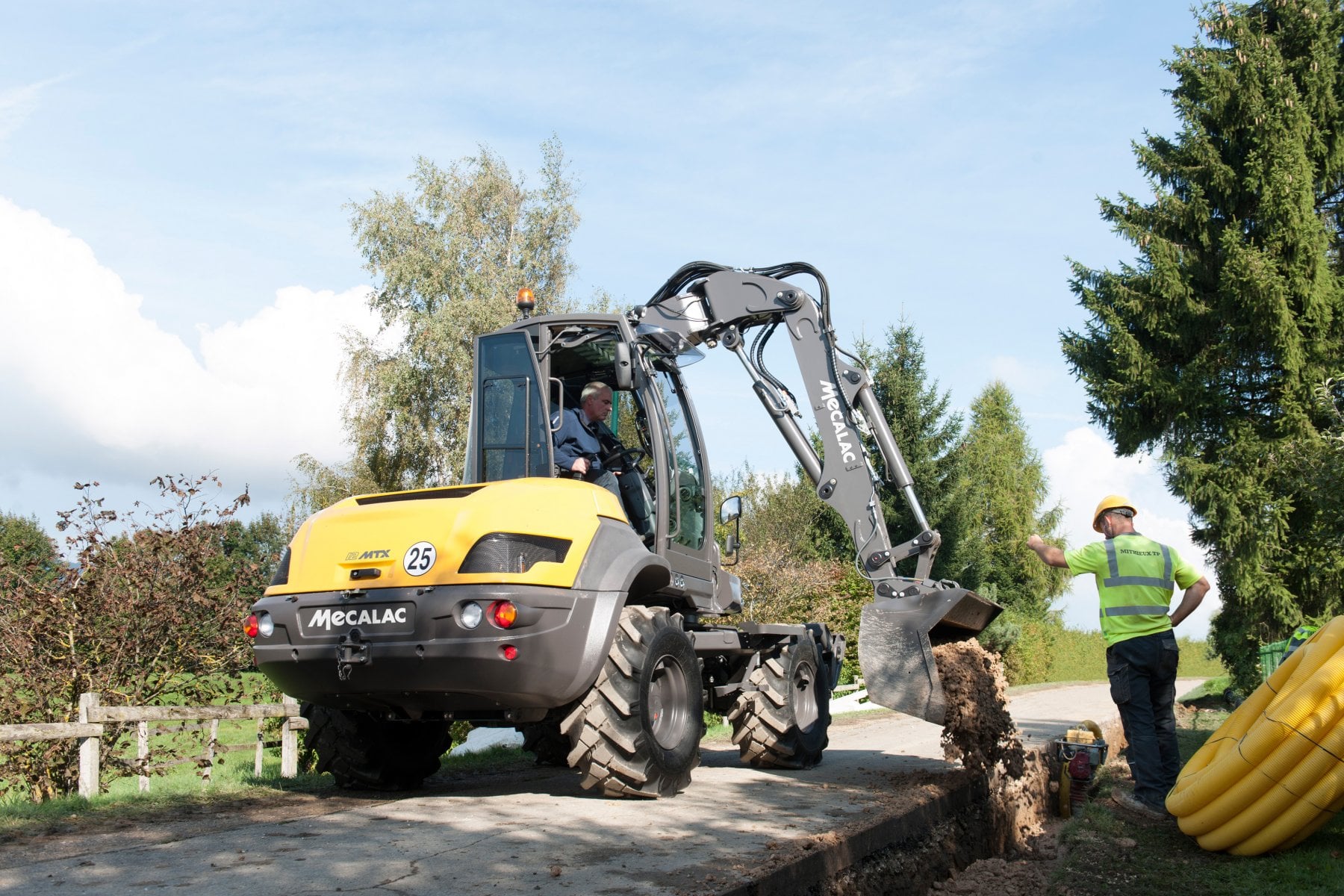

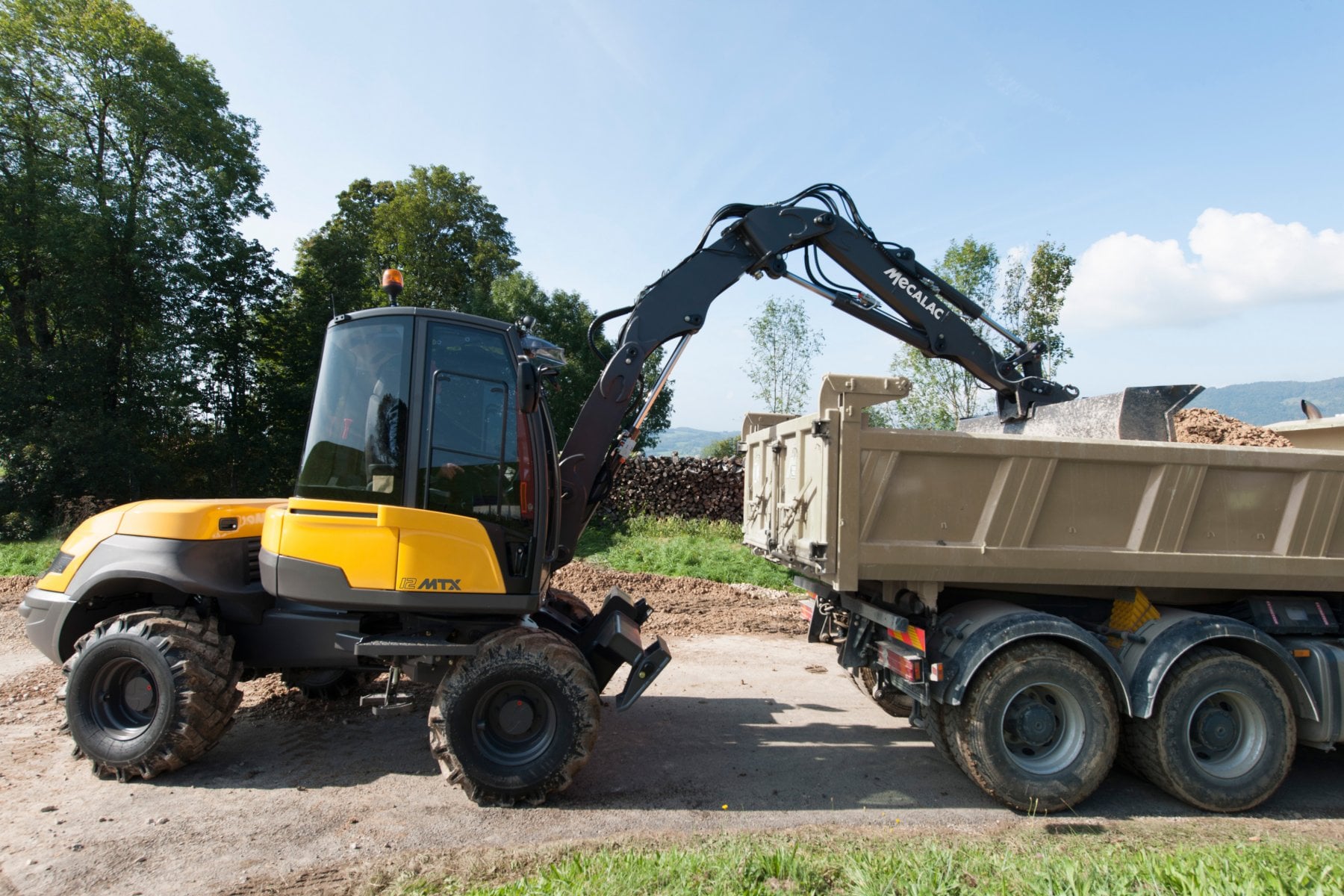

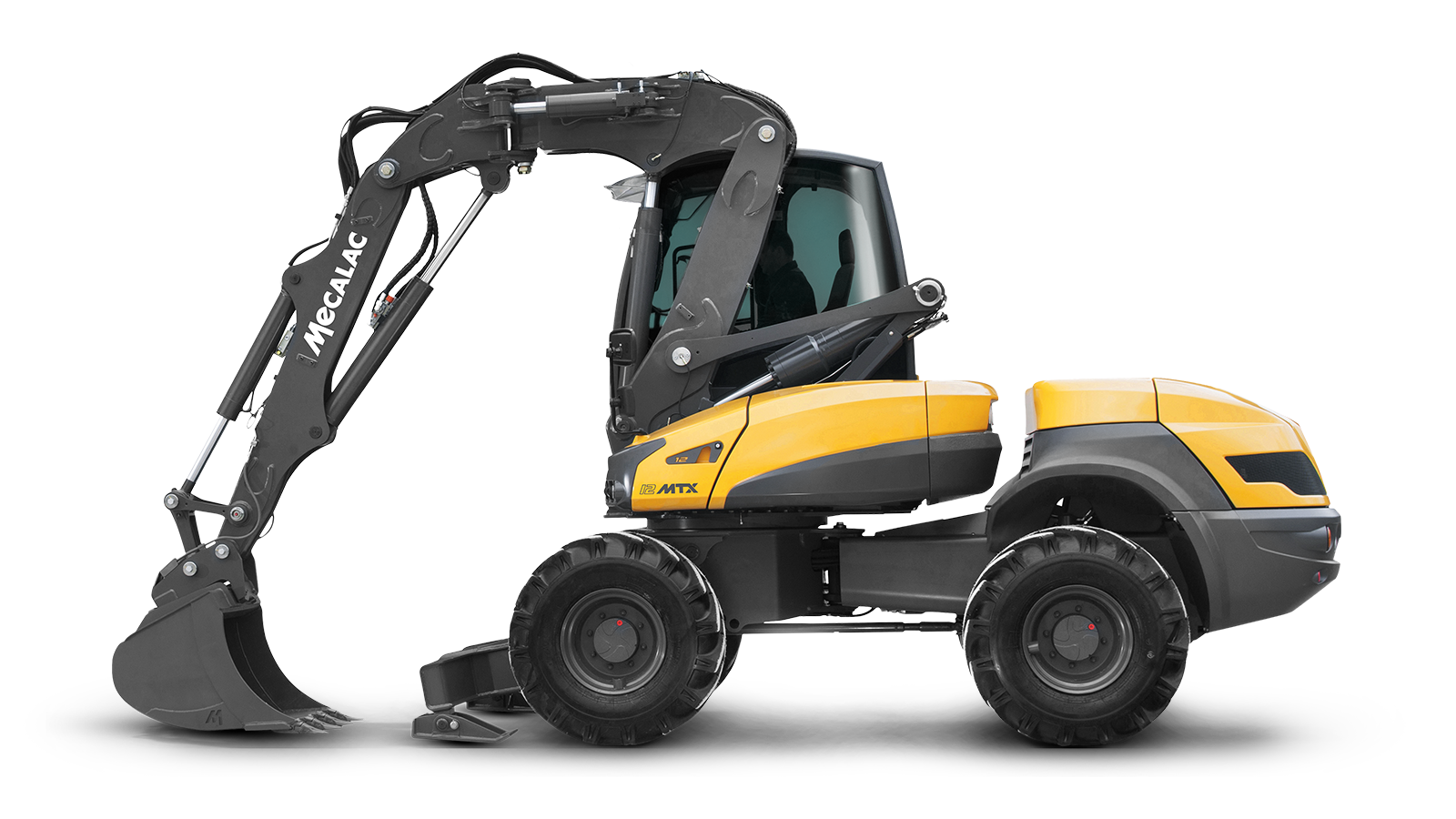

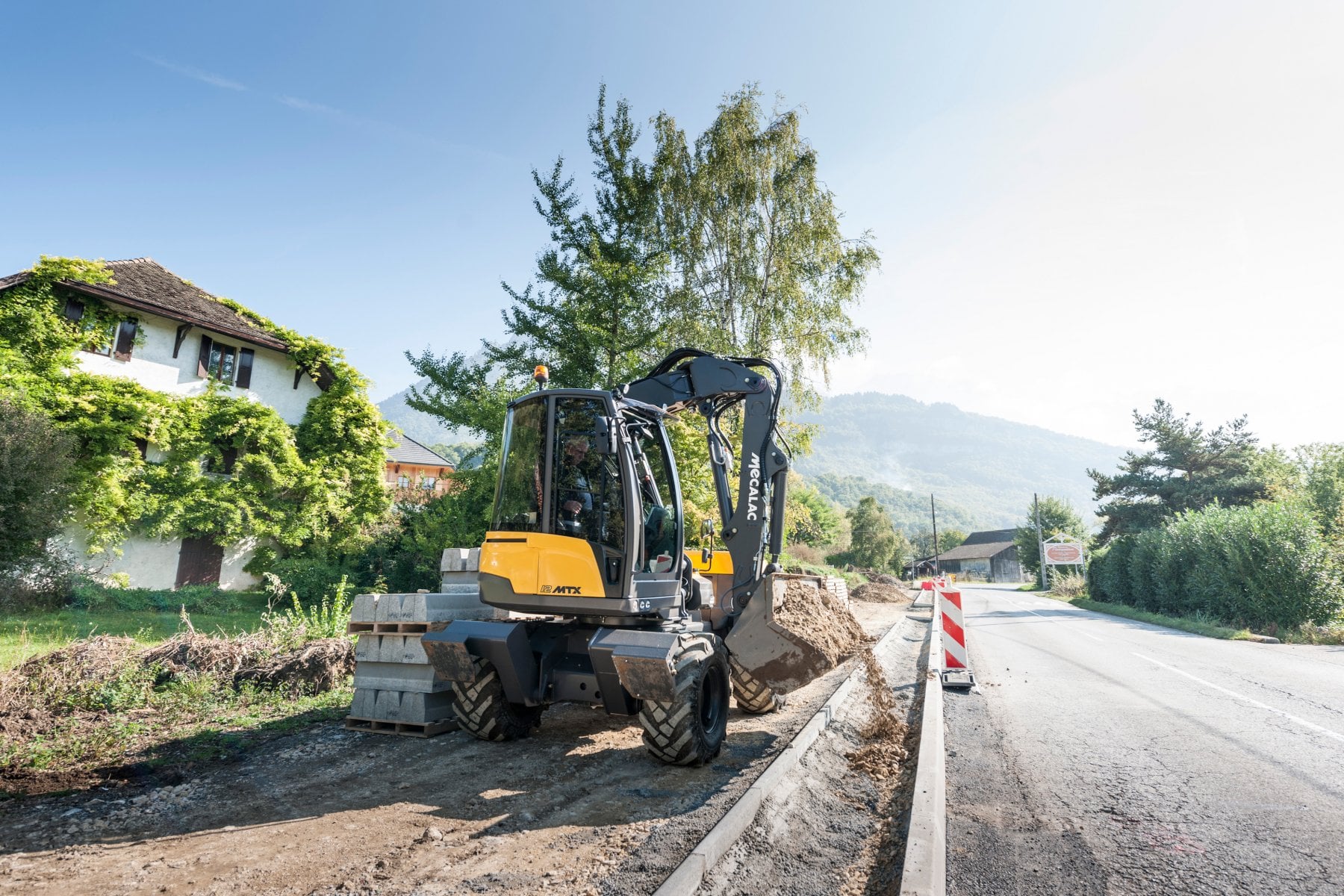

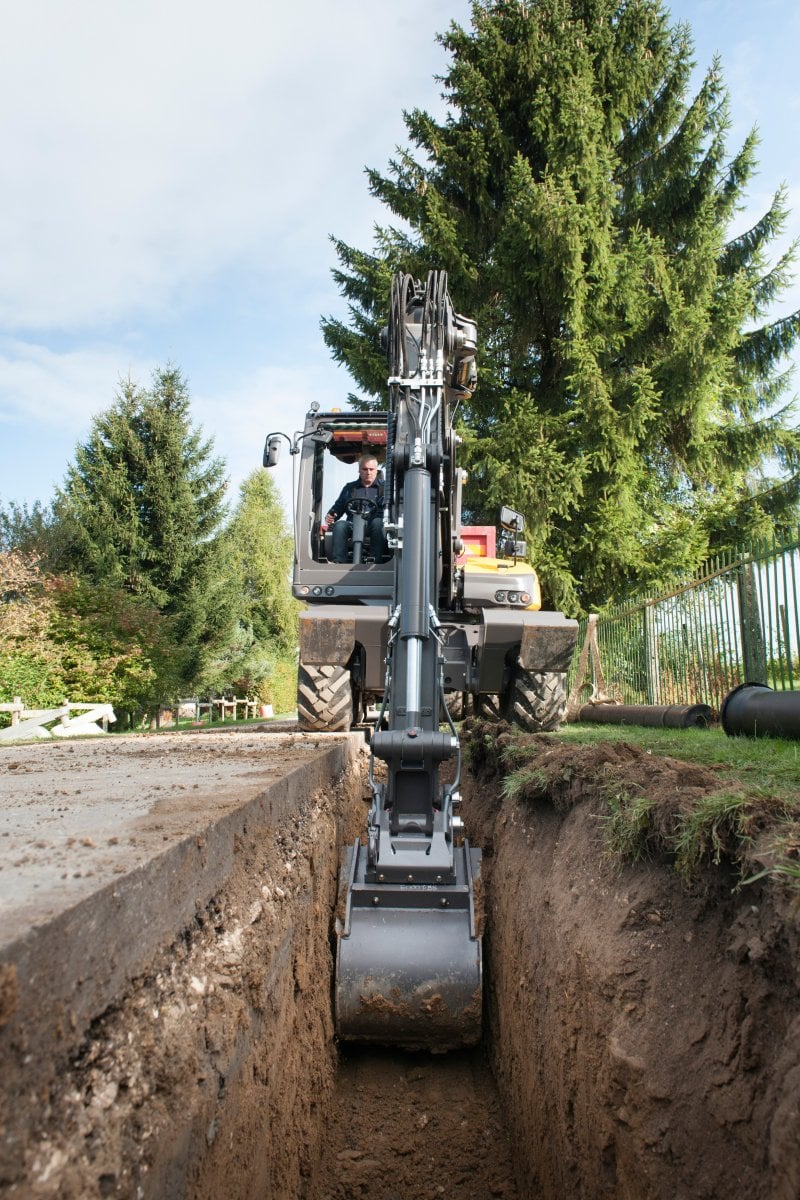

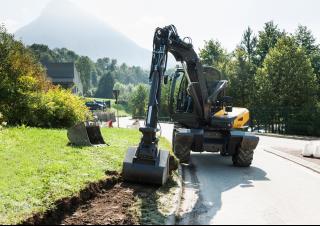

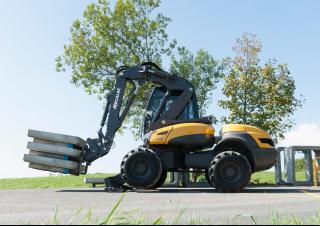

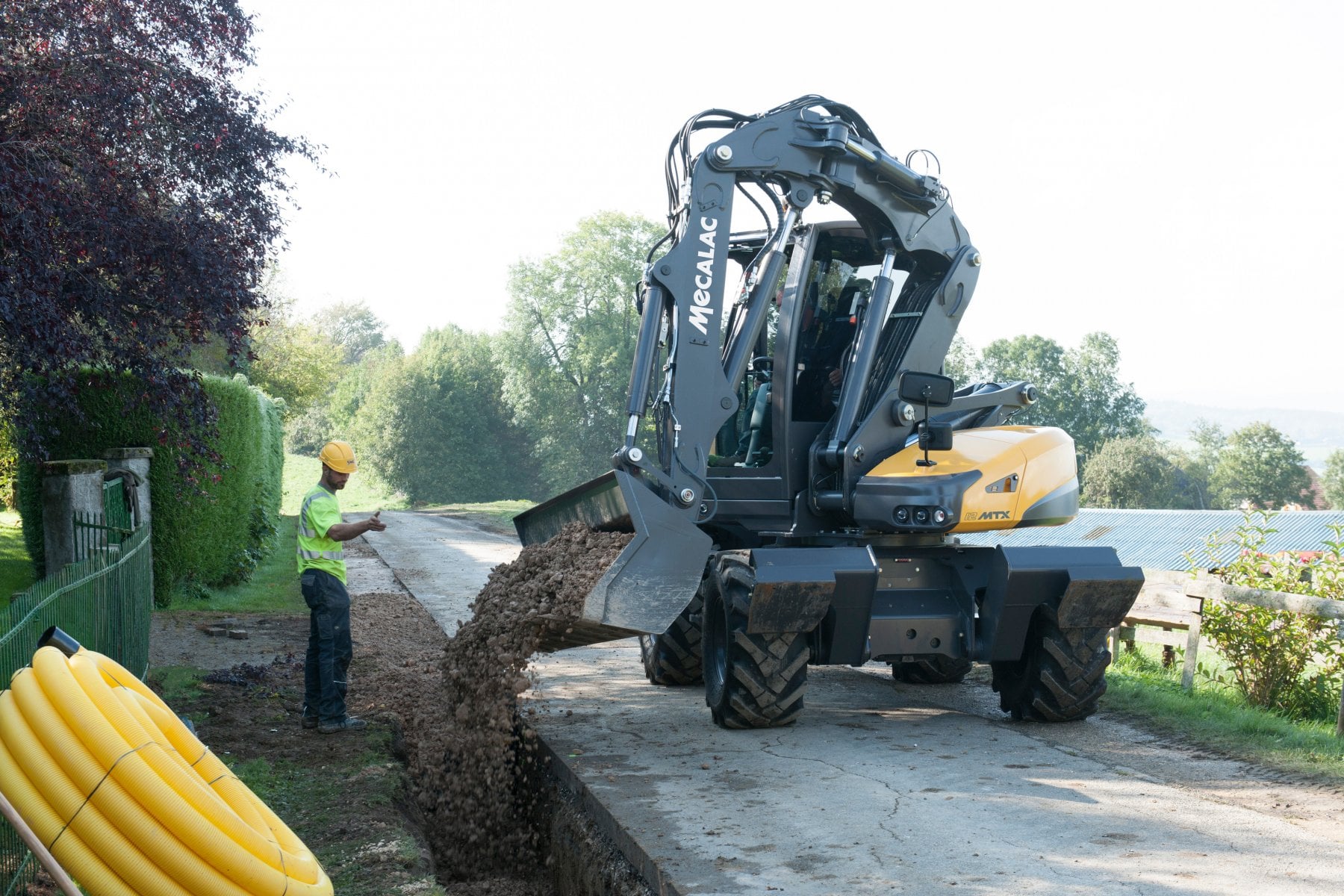

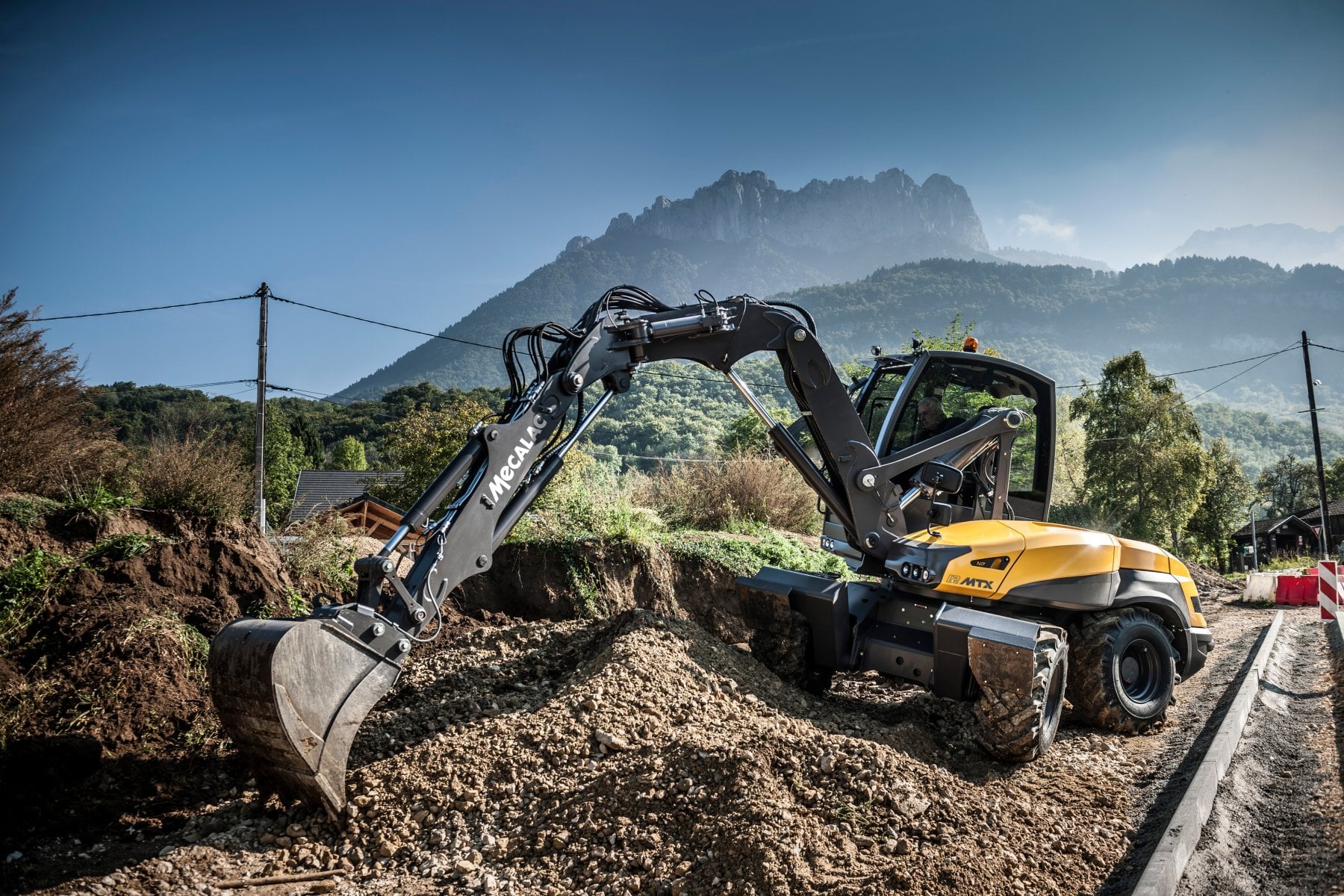

Manufactured by Mecalac, this is the 12 MTX wheel excavator. Find and download detailed specs and data sheets for this machine her…

Manufactured by Mecalac, this is the 12 MTX wheel excavator. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this 12 MTX 9.7t machine can provide 80kW or 107 horse power for the wheel excavator. The 12 MTX is categorised in the smallest machine segment in the wheel excavators category. The 12 MTX’s size is 2.25m x 4.62m x 3.46m. The bucket capacity of 12 MTX is 0,41m³, which is above average for this type of machine.

The Mecalac 12 MTX has been equipped and sold with Overload alert and Quick hitch hydr.. It has been sold without air Blade, Quick hitch mech. And Diesel particulate filter as of 2016. There are more detailed specifications and machine descriptions available in the original Mecalac 12 MTX specs data sheet.

This model can be acquired for a list price between €148000 and €189000. Production of the 12 MTX stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 2 other wheel excavators, which range from 9.7t up to 13.3t are produced by Mecalac. Of these, 12 MTX and also 714 MW e are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Mecalac 12 MTX specs data sheet on LECTURA Specs today!

12 MTX

Years of manufacture: 2015—2016

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 12 MTX Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.7 t

Standard tyres: 405/70-20

Bucket capacity: 0.41 m³

Boom: VA/SKA

Outrigger stabilisers: 2 2/4-fold

Transport length: 4.62 m

Transport width: 2.25 m

Transport height: 3.46 m

Max. Reach horizontal: 7.125 m

Dredging depth: 4.15 m

Tear-out force: 34 kN

Bucket width: 0.9 m

Model series: MTX

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 80 kW

Displacement: 3.6 l

Revolutions at max torque: 1800 rpm

Emission level: IIIB

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, telematics available, emission rating, engine manufacturer, engine model, auto idle, engine auto shut off, rated speed, engine output - net, engine torque, torque speed, transmission type, number of tyres - standard, tyre size - standard, service brake type, service brake actuation, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, overall width - stabilisers down, dump clearance height - articulated boom, dig depth - articulated boom, fuel tank, min capacity, max capacity, slew speed, sound level external, dipper standard, boost tearout artic, max bucket breakout, mono boom, max bucket breakout, artic boom, number of main pumps, transmission pump, main pumps - maximum flow, transmission pump flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Blade: No
Cabin adjustment: No
Overload alert: Yes
Material Handling Excavator: No
Track guidance: No
Aircondition: No
Quick hitch hydr.: Yes
Quick hitch mech.: No

Mecalac 12 MTX FAQ

When was the Mecalac 12 MTX manufactured?

The Mecalac 12 MTX was manufactured from 2015 to 2016.

How much does the Mecalac 12 MTX wheel excavator weigh?

The Mecalac 12 MTX wheel excavator weighs 9.7 tons.

What are the transport dimensions of the Mecalac 12 MTX wheel excavator?

The Mecalac 12 MTX has a transport length of 4.62 meters, a transport width of 2.25 meters, and a transport height of 3.46 meters.

What are the undercarriage specifications of the Mecalac 12 MTX wheel excavator?

The Mecalac 12 MTX is equipped with standard tyres sized 405/70-20 and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Mecalac 12 MTX wheel excavator?

The Mecalac 12 MTX has a dredging depth of 4.15 meters, a maximum horizontal reach of 7.125 meters, and features a lateral articulated, adjustable boom.

What is the tear-out force of the Mecalac 12 MTX?

The Mecalac 12 MTX has a tear-out force of 34 kN.

What are the bucket specifications of the Mecalac 12 MTX wheel excavator?

The Mecalac 12 MTX wheel excavator has a bucket capacity of 0.41 cubic meters and a bucket width of 0.9 meters.

How much is a Mecalac 12 MTX Wheel excavator (2015u20132016) worth?

The residual value of the Mecalac 12 MTX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
