12 MTX Mecalac Excavator Specs & Dimensions - (2008 - 2015)

Manufactured by Mecalac, this is the 12 MTX wheel excavator. Find and download detailed specs and data sheets for this machine her…

Manufactured by Mecalac, this is the 12 MTX wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Mecalac 12 MTX is a 9.44t machine with Cummins engine which powers this model with up to 82kW or 109 horse power. The Mecalac 12 MTX can be grouped in the smallest machine segment in the wheel excavators category. The 12 MTX’s size is 2.33m x 4.45m x 3.03m. The bucket of 12 MTX has a capacity of 0,42m³ which is average for this type of machine.

The 12 MTX is manufactured and distributed with Overload alert and Quick hitch hydr.. It has been sold without air Material Handling Excavator, Cabin adjustment and Aircondition as of 2015. There are more detailed specifications and machine descriptions available in the original Mecalac 12 MTX specs data sheet. Download a free data sheet in Italian, French, Spanish and English from LECTURA Specs.

The production stopped in 2015, where this 12 MTX was available at a new list price between €148000 and €188000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Mecalac currently produces 2 other wheel excavators, which range from 9.7t up to 13.3t - the most visited on LECTURA Specs are 714 MW e, 12 MTX. Throughout the production cycle of this 12 MTX wheel excavator, there have been around 2 models that average a price of €36600 for an age of 6 years Want more detailed specifications? Download the latest Mecalac 12 MTX specs data sheet on LECTURA Specs today!

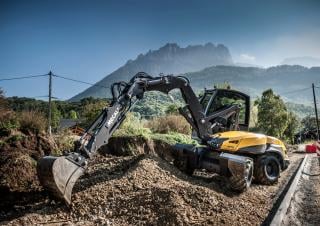

Wheel Excavators Mecalac 12 MTX
Wheel Excavators Mecalac 12 MTX
Wheel Excavators Mecalac 12 MTX
Wheel Excavators Mecalac 12 MTX
Wheel Excavators Mecalac 12 MTX
Wheel Excavators Mecalac 12 MTX

Technical specs - 12 MTX Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.44 t
Standard tyres
405/70-20
Bucket capacity
0.42 m³
Boom
VA/SKA
Outrigger stabilisers
2 2/4-fold
Transport length
4.45 m
Transport width
2.33 m
Transport height
3.03 m
Max. Reach horizontal
6.86 m
Dredging depth
4.05 m
Tear-out force
31 kN
Bucket width
0.9 m
Model series
MTX
Engine manuf.
Cummins
Engine type
4BT4.5C
Engine power
82 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm
Emission level
IIIA

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, total number of dippers - mono, number of articulated booms...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, total number of dippers - mono, number of articulated booms, total number of dippers - articulated, telematics available, emission rating, engine manufacturer, engine model, auto idle, engine auto shut off, rated speed, engine output - net, engine torque, torque speed, transmission type, number of tyres - standard, tyre size - standard, service brake type, service brake actuation, overall width, machine width - maximum, wheelbase, tailswing radius, cab height, ground clearance, overall width - stabilisers down, dump clearance height - articulated boom, dig depth - articulated boom, fuel tank, min capacity, max capacity, slew speed, sound level external, dipper standard, boost tearout artic, max bucket breakout, mono boom, max bucket breakout, artic boom, number of main pumps, transmission pump, main pumps - maximum flow, transmission pump flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 12 MTX FAQ

When was the Mecalac 12 MTX manufactured?

The Mecalac 12 MTX was manufactured from 2008 to 2015.

How much does the Mecalac 12 MTX weigh?

The Mecalac 12 MTX weighs 9.44 tons.

What are the transport dimensions of the Mecalac 12 MTX wheel excavator?

The Mecalac 12 MTX has a transport length of 4.45 meters, a transport width of 2.33 meters, and a transport height of 3.03 meters.

What are the undercarriage specifications of the Mecalac 12 MTX wheel excavator?

The Mecalac 12 MTX is equipped with standard tyres sized 405/70-20 and has 2 outrigger stabilisers.

What are the excavation performance specifications of the Mecalac 12 MTX wheel excavator?

The Mecalac 12 MTX wheel excavator has a dredging depth of 4.05 meters, a maximum horizontal reach of 6.86 meters, and features a lateral articulated and adjustable boom.

What is the tear-out force of the Mecalac 12 MTX wheel excavator?

The Mecalac 12 MTX wheel excavator has a tear-out force of 31 kN.

What are the specifications of the primary work tool on the Mecalac 12 MTX wheel excavator?

The primary work tool of the Mecalac 12 MTX has a bucket capacity of 0.42 cubic meters and a bucket width of 0.9 meters.
