A 924 Litronic Liebherr Excavator Specs & Dimensions - (2012 - 2016)

Model rating
4,00 / 10

Liebherr is the manufacturer of the wheel excavator model A 924 Litronic. Find and download detailed specs and data sheets for thi…

Liebherr is the manufacturer of the wheel excavator model A 924 Litronic. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Liebherr engine, this A 924 Litronic 23.7t machine can provide 140kW or 187 horse power for the wheel excavator. The A 924 Litronic is categorised in the biggest machine segment in the wheel excavators category. The A 924 Litronic’s size is 2.75m x 10.05m x 3.21m. The bucket capacity of A 924 Litronic is 1,15m³, which is above average for this type of machine.

The Liebherr A 924 Litronic has been equipped and sold with Diesel particulate filter, Overload alert and Aircondition. Track guidance, Material Handling Excavator and Quick hitch hydr. Are not provided on this model as of 2016. There are more detailed specifications and machine descriptions available in the original Liebherr A 924 Litronic specs data sheet. Available in German, English and French, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €340000 and €433000. Production of the A 924 Litronic stopped in 2016. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 12 other wheel excavators, which range from 11.8t up to 27.1t are produced by Liebherr. Of these, A 916 Litronic, A 914 Litronic and also A 914 Compact Litronic are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Liebherr A 924 Litronic specs data sheet on LECTURA Specs today!

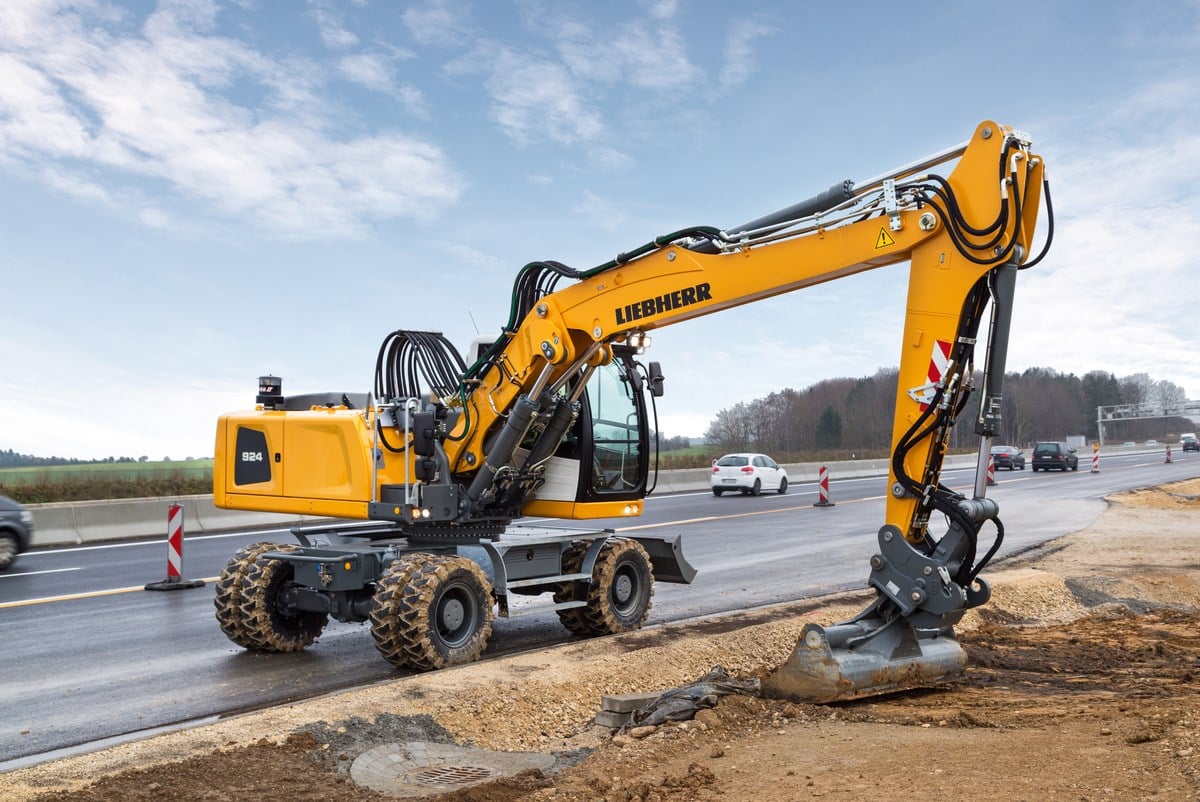

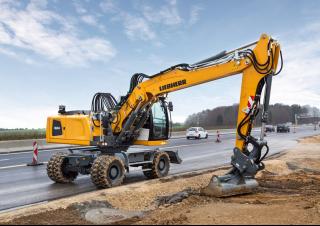

Wheel Excavators Liebherr A 924 Litronic
Wheel Excavators Liebherr A 924 Litronic
Wheel Excavators Liebherr A 924 Litronic
Wheel Excavators Liebherr A 924 Litronic

Visit Liebherr live at

Technical specs - A 924 Litronic Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.7 t
Standard tyres
11.00-20
Bucket capacity
1.15 m³
Boom
VA
Outrigger stabilisers
4 2/4-fold
Transport length
10.05 m
Transport width
2.75 m
Transport height
3.21 m
Max. Reach horizontal
10.05 m
Dredging depth
6.5 m
Tear-out force
119.9 kN
Bucket width
1.25 m
Travel speed
20 km/h
Model series
A
Engine manuf.
Liebherr
Engine type
D934
Engine power
140 kW
Displacement
7 l
Revolutions at max torque
1800 rpm
Emission level
IIIB

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms...

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 924 Litronic FAQ

When was the Liebherr A 924 Litronic manufactured?

The Liebherr A 924 Litronic was manufactured from 2012 to 2016.

How much does the Liebherr A 924 Litronic weigh?

The Liebherr A 924 Litronic weighs 23.7 tons.

What are the transport dimensions of the Liebherr A 924 Litronic wheel excavator?

The Liebherr A 924 Litronic has a transport length of 10.05 meters, a transport width of 2.75 meters, and a transport height of 3.21 meters.

What is the travel speed of the Liebherr A 924 Litronic wheel excavator?

The Liebherr A 924 Litronic has a travel speed of 20 km/h.

What are the undercarriage specifications of the Liebherr A 924 Litronic wheel excavator?

The Liebherr A 924 Litronic is equipped with standard tyres sized 11.00-20 and has 4 outrigger stabilisers.

What are the excavation performance specifications of the Liebherr A 924 Litronic wheel excavator?

The Liebherr A 924 Litronic has a dredging depth of 6.5 meters, a maximum horizontal reach of 10.05 meters, and features an adjustable boom.

What is the tear-out force of the Liebherr A 924 Litronic wheel excavator?

The Liebherr A 924 Litronic wheel excavator has a tear-out force of 119.9 kN.

What are the specifications of the bucket on the Liebherr A 924 Litronic wheel excavator?

The bucket of the Liebherr A 924 Litronic has a capacity of 1.15 cubic meters and a width of 1.25 meters.

How much is a Liebherr A 924 Litronic Wheel excavator (2012u20132016) worth?

The residual value of the Liebherr A 924 Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
