Hydradig 110W JCB Excavator Specs & Dimensions - (2017 - 2021)

The Hydradic 110 W wheel excavator model is manufactured by JCB. Find and download detailed specs and data sheets for this machine…

The Hydradic 110 W wheel excavator model is manufactured by JCB. Find and download detailed specs and data sheets for this machine here.

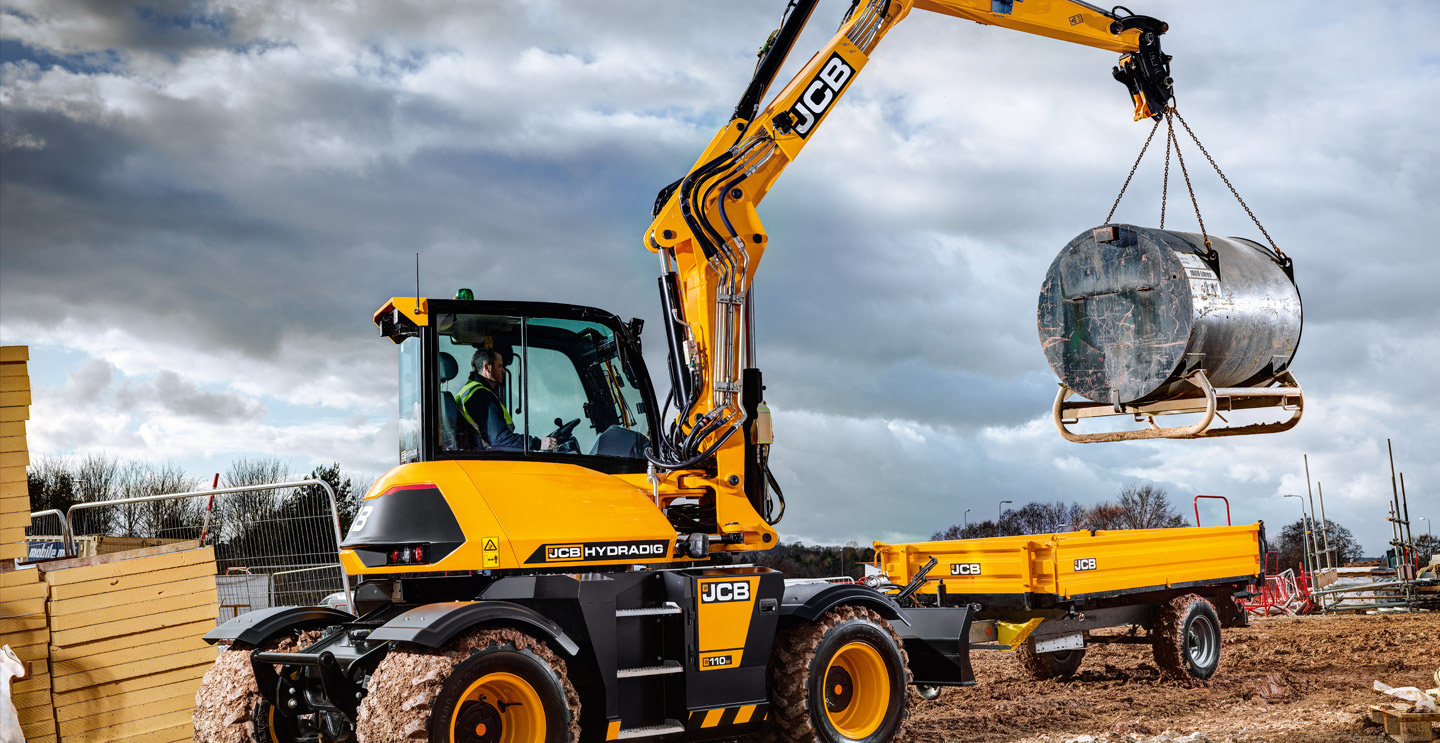

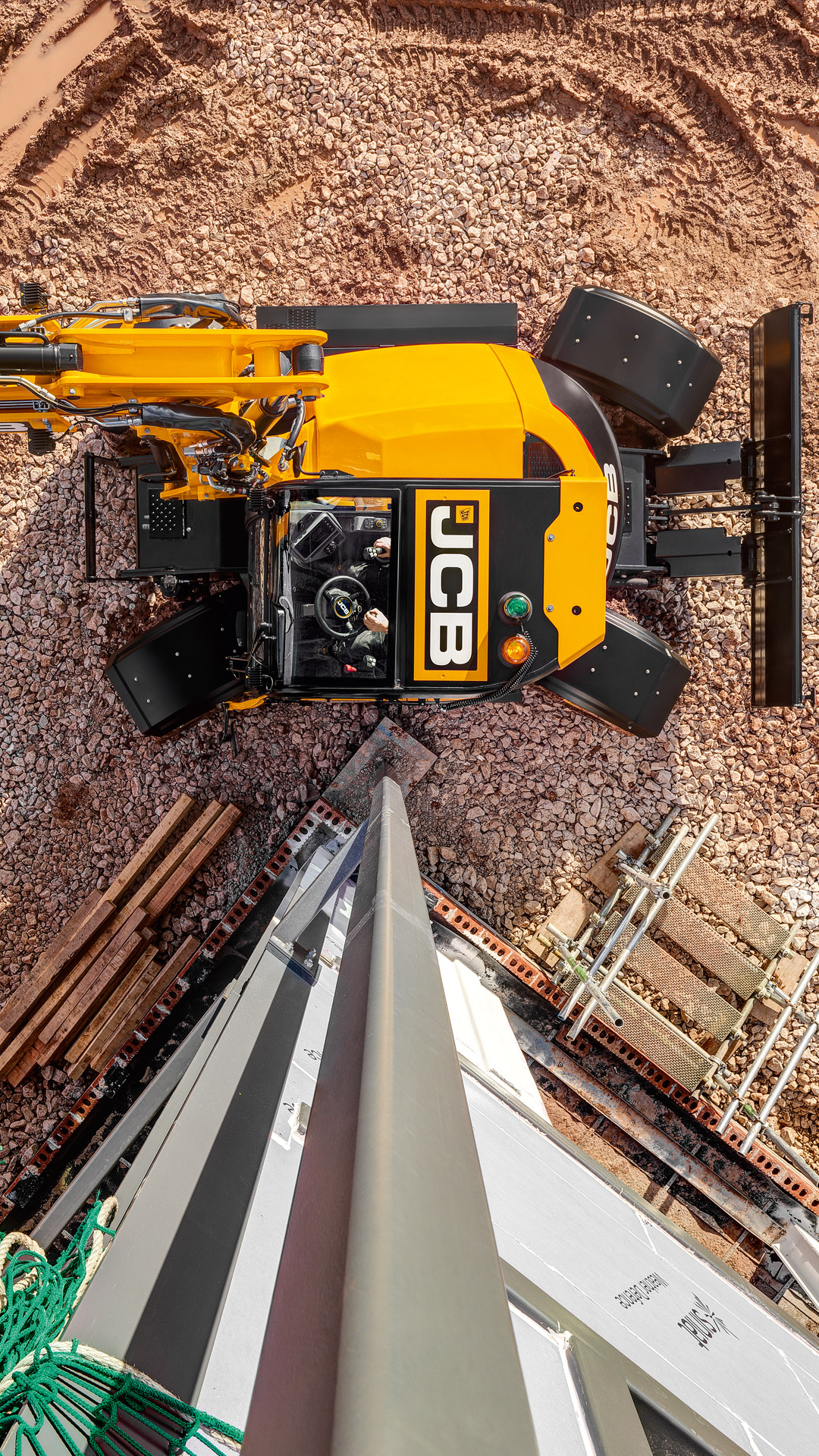

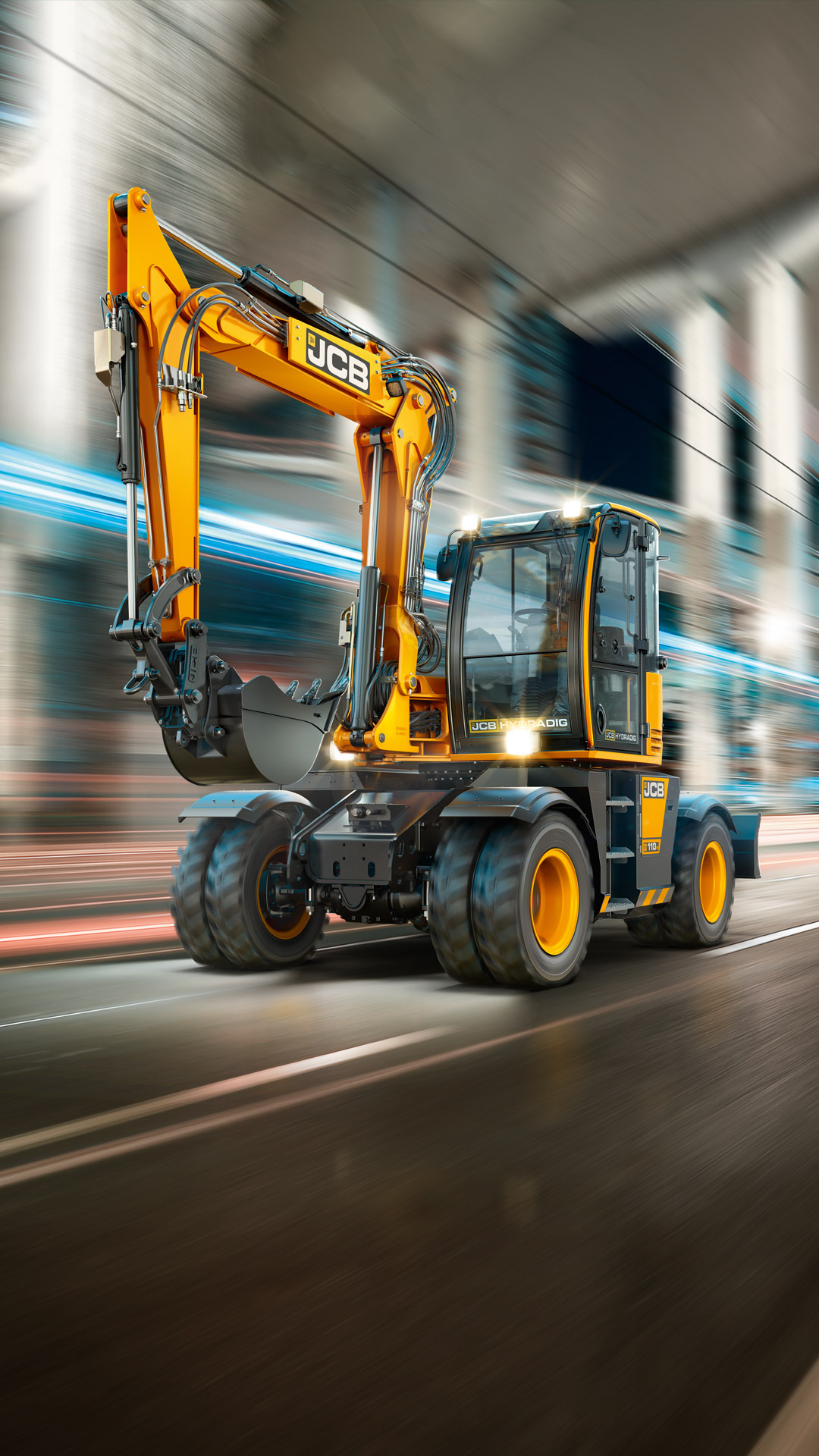

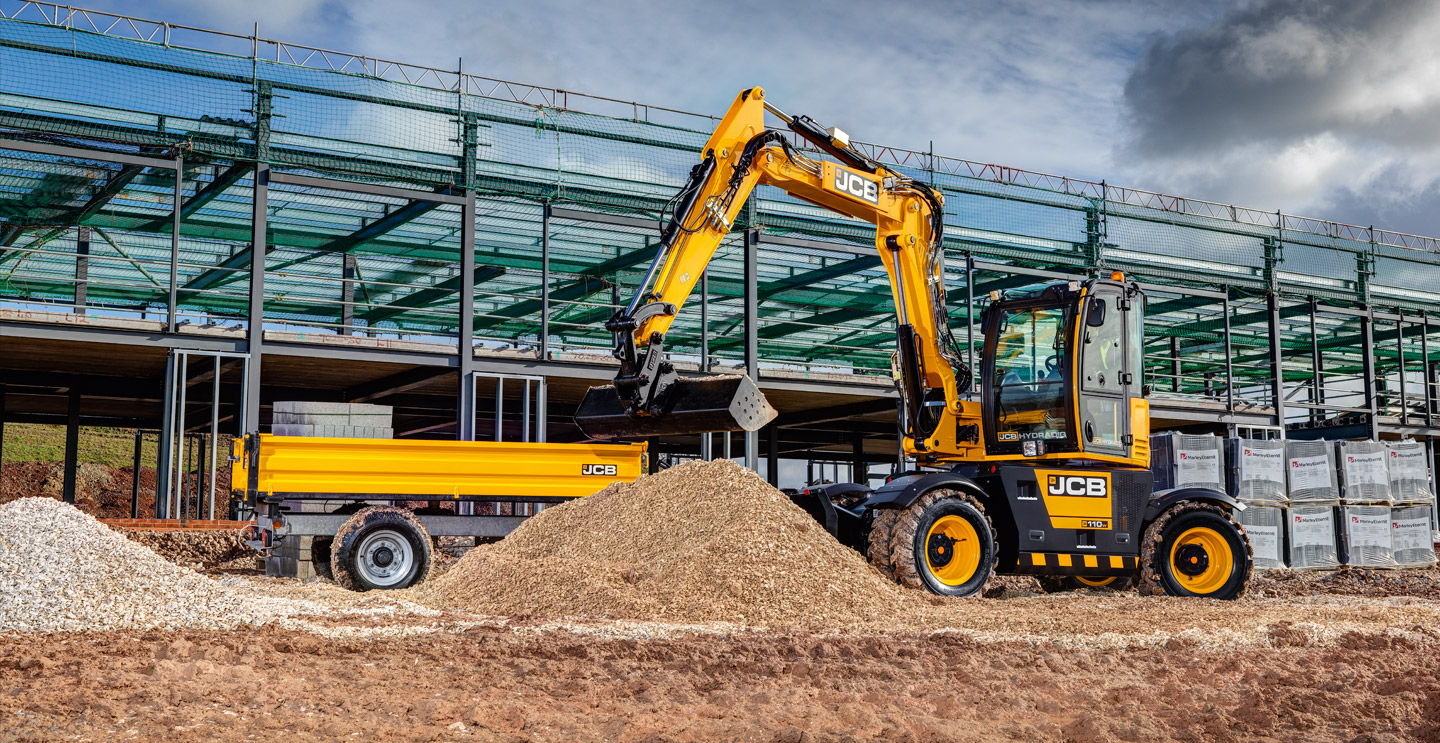

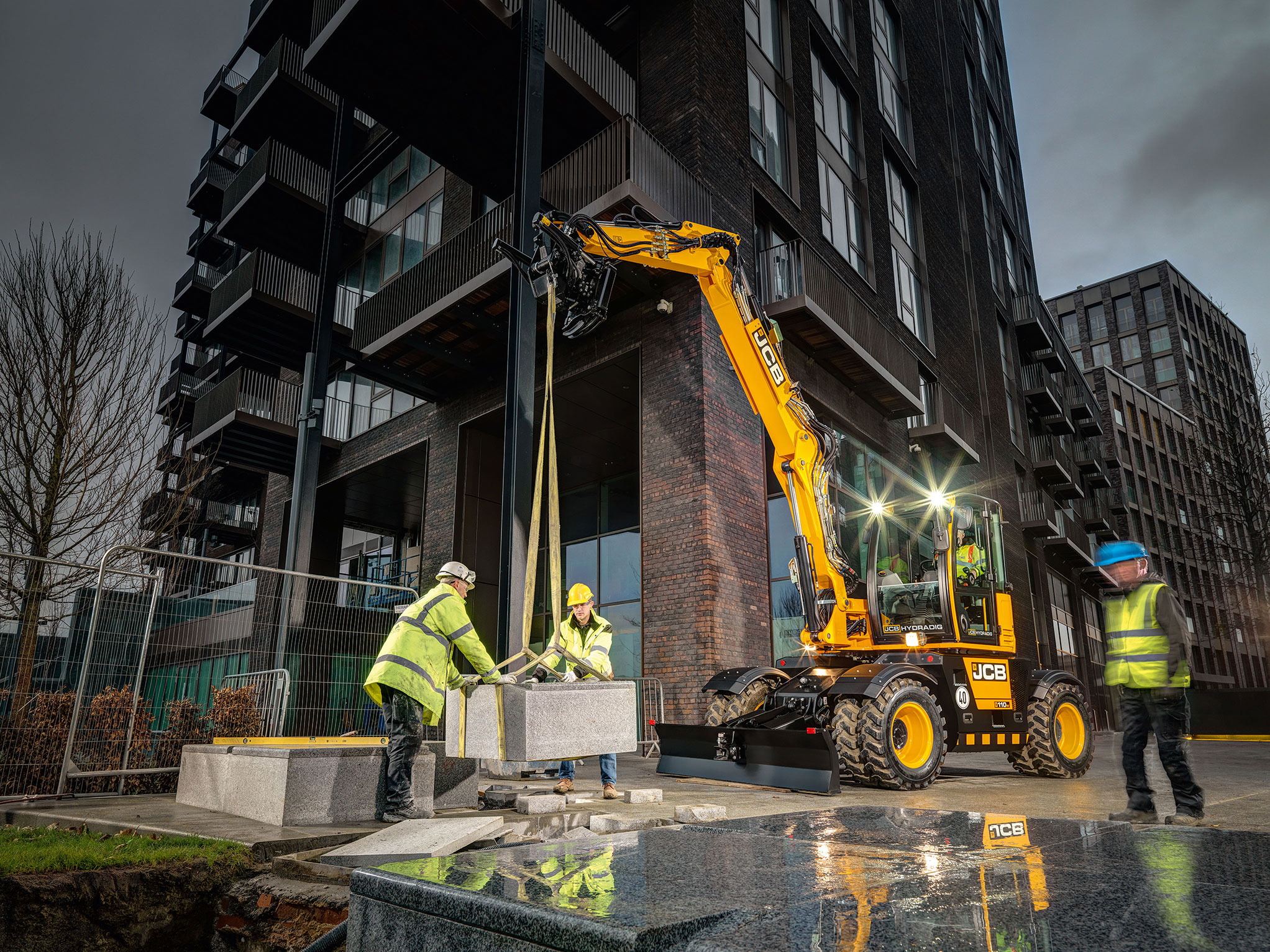

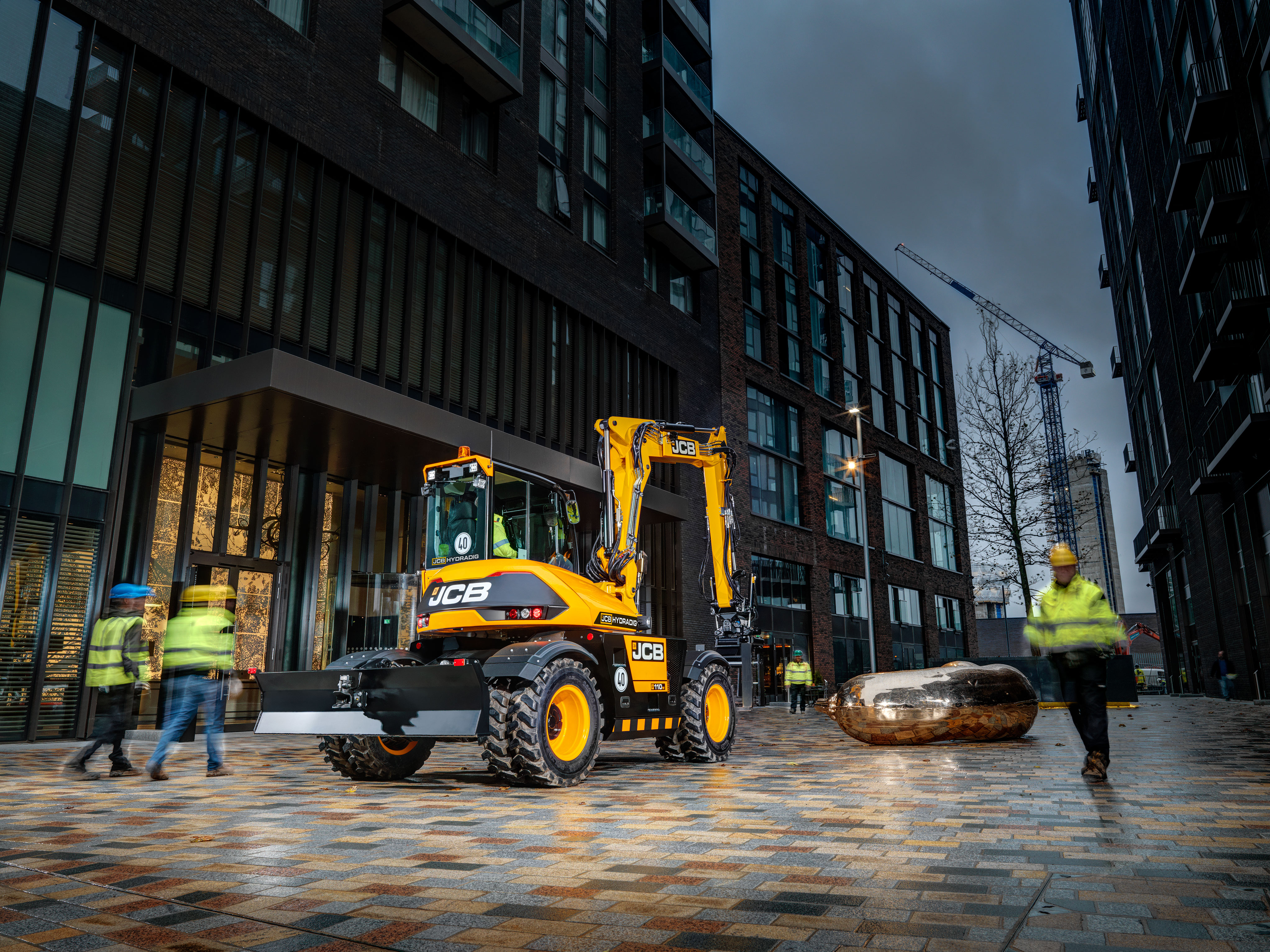

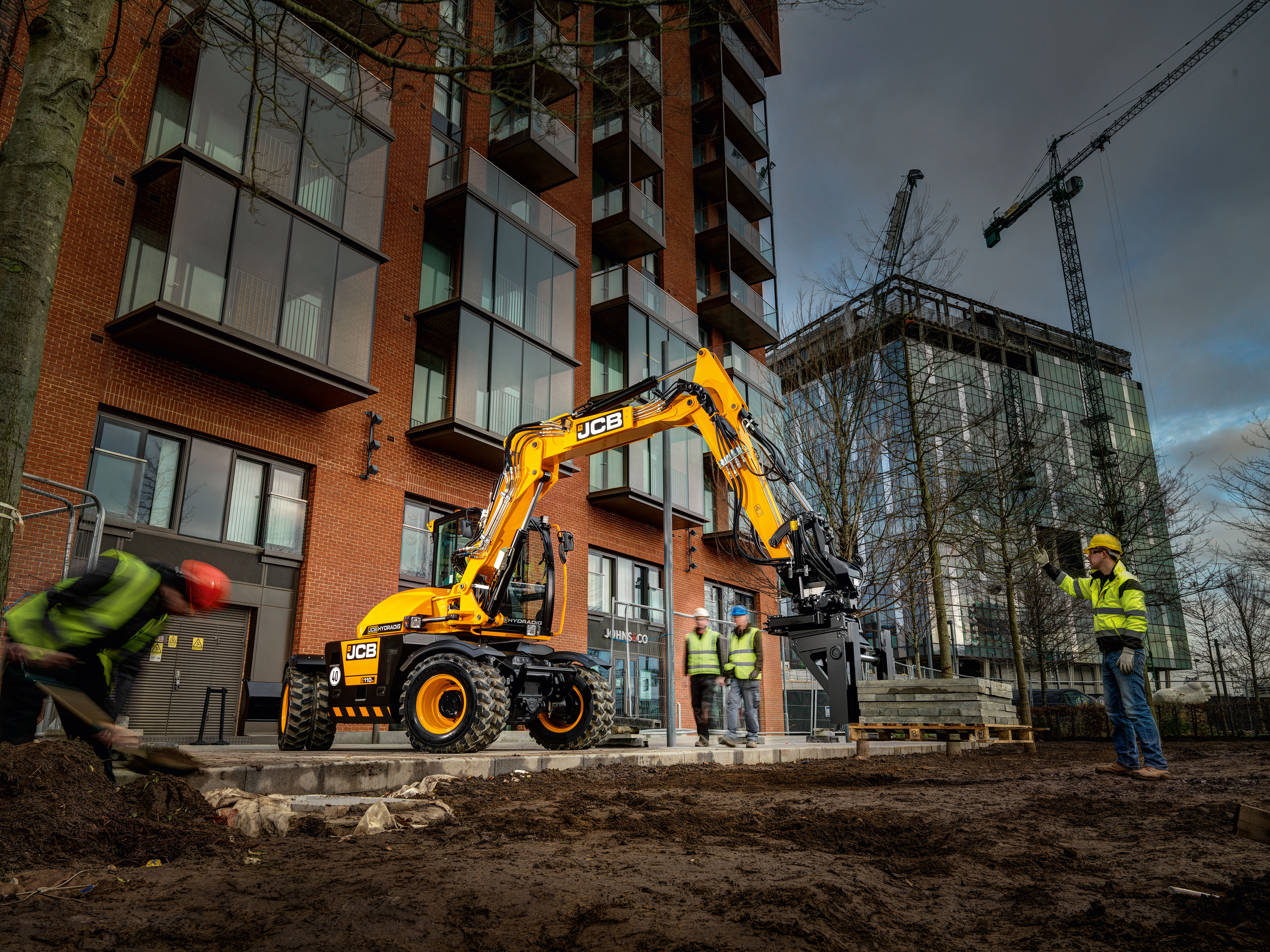

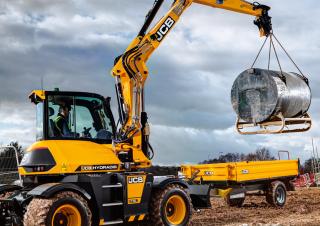

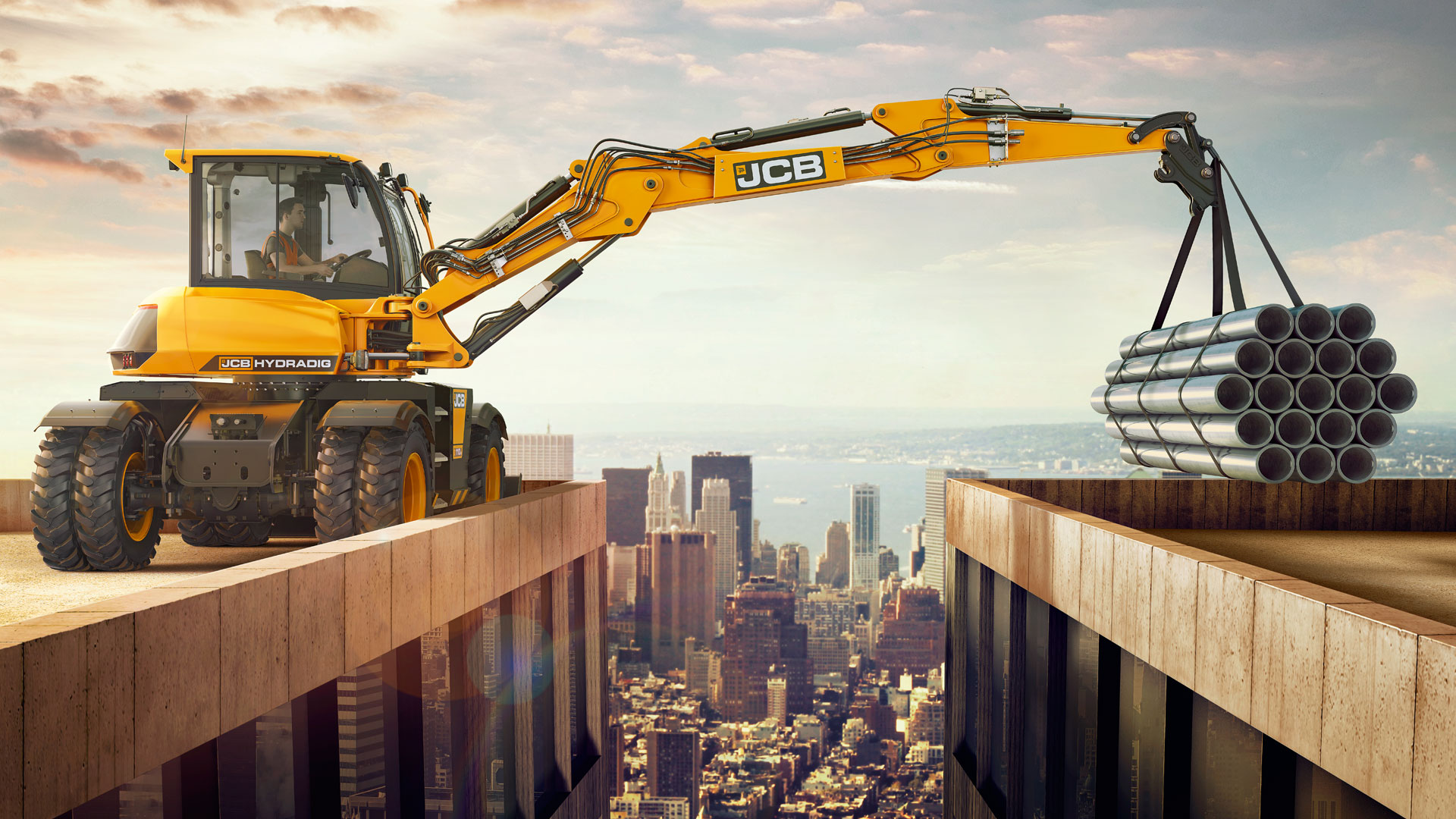

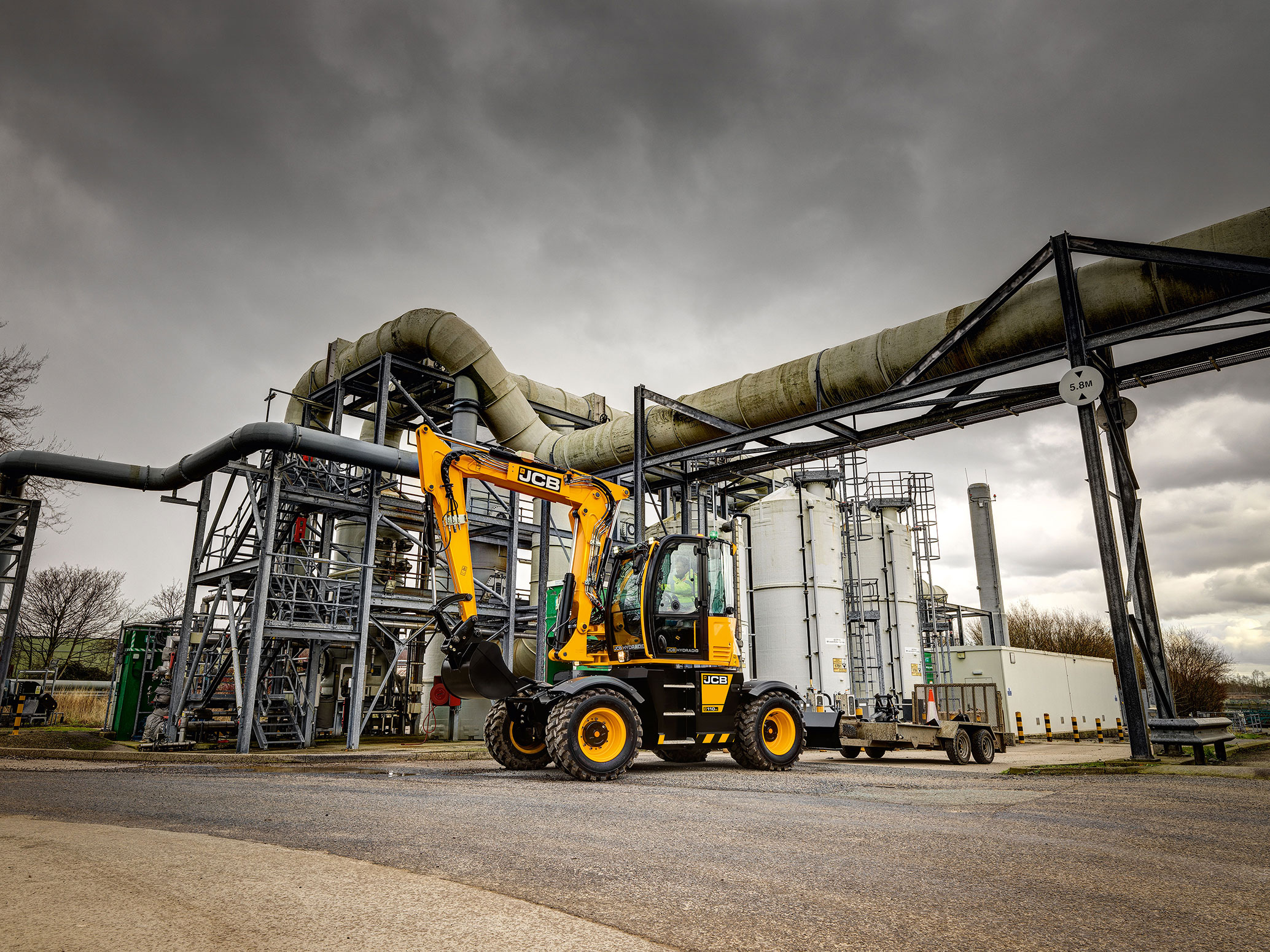

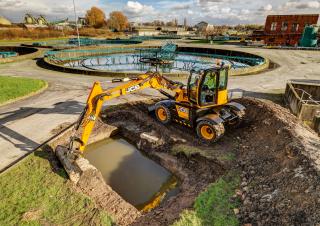

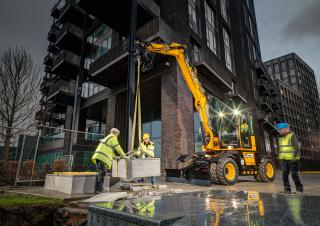

The JCB Hydradic 110 W is a 11.457t machine with JCB engine which powers this model with up to 81kW or 108 horse power. The Hydradic 110 W is categorised in the smallest machine segment in the wheel excavators category. The Hydradic 110 W’s size is 2.44m x 5.899m x 3.907m. The bucket of Hydradic 110 W has a capacity of 0.15m³ which is average for this type of machine.

Since 2017, this model has included Blade. Diesel particulate filter, Quick hitch mech. And Track guidance are not provided on this model as of 2017. There are more detailed specifications and machine descriptions available in the original JCB Hydradic 110 W specs data sheet.

JCB currently produces 9 other wheel excavators, which range from 11.2t up to 22t - the most visited on LECTURA Specs are JS 175 W, JS 200 W, JS 145 W. Want more detailed specifications? Download the latest JCB Hydradic 110 W specs data sheet on LECTURA Specs today!

Visit JCB live at

Hydradig 110W

Years of manufacture: 2017—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - Hydradig 110W JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 11.46 t

Standard tyres: 405/70x20 16 PR

Bucket capacity: 0.15 m³

Boom: VA

Outrigger stabilisers: 2 2/4-fold

Transport length: 7.73 m

Transport width: 2.42 m

Transport height: 3.44 m

Max. Reach horizontal: 7.78 m

Dredging depth: 4.41 m

Tear-out force: 39 kN

Bucket width: 0.5 m

Dipper length: 2.25 m

Turning radius outside: 4.51 m

Travel speed: 40 km/h

Model series: Hydradig

Engine manuf.: JCB

Engine type: 444 TCA 99

Engine power: 81 kW

Displacement: 4.4 l

Revolutions at max torque: 1500 rpm

Max. torque: 516 Nm

No. of cylinders: 4

Emission level: IV/T4f

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter: No
Blade: Yes
Cabin adjustment: No
Overload alert: No
Material Handling Excavator: No
Track guidance: No
Aircondition: No
Quick hitch hydr.: No
Quick hitch mech.: No

Download datasheets (PDF)

JCB Hydradig 110W FAQ

When was the JCB Hydradig 110W manufactured?

The JCB Hydradig 110W was manufactured from 2017 to 2021.

How much does the JCB Hydradig 110W weigh?

The JCB Hydradig 110W weighs 11.46 tons.

What are the transport dimensions of the JCB Hydradig 110W wheel excavator?

The JCB Hydradig 110W has a transport length of 7.73 meters, a transport width of 2.42 meters, and a transport height of 3.44 meters.

What is the travel speed of the JCB Hydradig 110W wheel excavator?

The JCB Hydradig 110W has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB Hydradig 110W wheel excavator?

The JCB Hydradig 110W is equipped with 405/70x20 16 PR standard tyres and has 2 outrigger stabilisers.

What is the outside turning radius of the JCB Hydradig 110W wheel excavator?

The JCB Hydradig 110W has an outside turning radius of 4.51 meters.

What are the excavation performance specifications of the JCB Hydradig 110W wheel excavator?

The JCB Hydradig 110W has an adjustable boom, a dredging depth of 4.41 meters, a maximum horizontal reach of 7.78 meters, and a dipper length of 2.25 meters.

What is the tear-out force of the JCB Hydradig 110W wheel excavator?

The JCB Hydradig 110W has a tear-out force of 39 kN.

What are the bucket specifications of the JCB Hydradig 110W wheel excavator?

The JCB Hydradig 110W has a bucket capacity of 0.15 cubic meters and a bucket width of 0.5 meters.

How much is a JCB Hydradig 110W Wheel excavator (2017u20132021) worth?

The residual value of the JCB Hydradig 110W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
