R210W-9 Hyundai Excavator Specs & Dimensions - (2019 - 2026)

Weight: 20.5t – Standard tyres: 10.00-20-16PR – Bucket capacity: 0.8m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport l…

Weight: 20.5t – Standard tyres: 10.00-20-16PR – Bucket capacity: 0.8m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 9.68m

Check out detailed dimensions, specifications, information and technical data for Hyundai R210W-9 excavator manufactured between 2019 - 2026. Get more in-depth insight with Hyundai R210W-9 digger specifications. See information, like: Weight: 20.5t – Standard tyres: 10.00-20-16PR – Bucket capacity: 0.8m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Transport length: 9.68m and more.

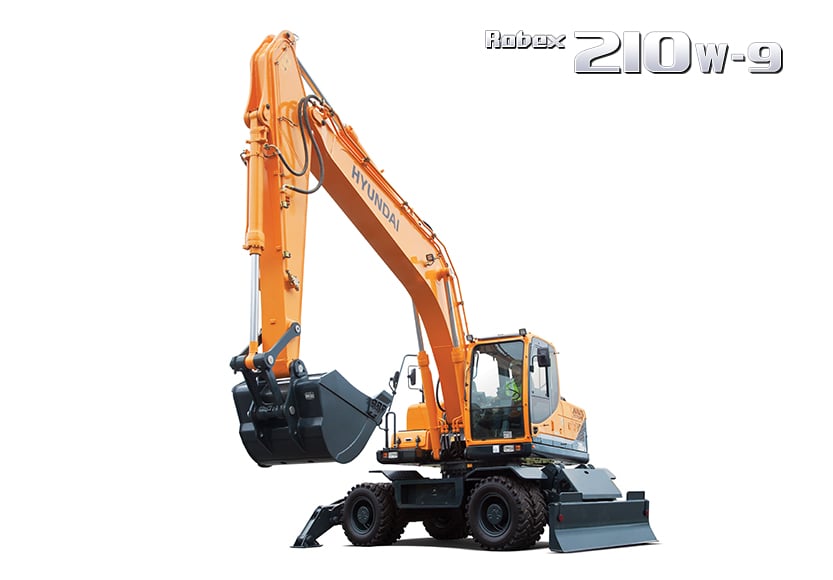

Wheel Excavators Hyundai R210W-9
Wheel Excavators Hyundai R210W-9
Wheel Excavators Hyundai R210W-9
Wheel Excavators Hyundai R210W-9

Visit Hyundai live at

Technical specs - R210W-9 Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.5 t
Standard tyres
10.00-20-16PR
Bucket capacity
0.8 m³
Boom
MB
Outrigger stabilisers
2 2/4-fold
Transport length
9.68 m
Transport width
2.53 m
Transport height
3.24 m
Max. Reach horizontal
8.87 m
Dredging depth
5.48 m
Tear-out force
133.4 kN
Bucket width
1.12 m
Turning radius outside
6.69 m
Travel speed
35 km/h
Model series
9
Engine manuf.
Hyundai
Engine type
HE6.7
Engine power
131 kW
Displacement
6.7 l
Revolutions at max torque
1400 rpm
Max. torque
798 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
T3

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hyundai R210W-9 FAQ

When was the Hyundai R210W-9 manufactured?

The Hyundai R210W-9 was first produced in 2019.

How much does the Hyundai R210W-9 wheel excavator weigh?

The Hyundai R210W-9 wheel excavator weighs 20.5 tons.

What are the transport dimensions of the Hyundai R210W-9 wheel excavator?

The Hyundai R210W-9 has a transport length of 9.68 meters, a transport width of 2.53 meters, and a transport height of 3.24 meters.

What is the travel speed of the Hyundai R210W-9 wheel excavator?

The Hyundai R210W-9 has a travel speed of 35 km/h.

What are the undercarriage specifications of the Hyundai R210W-9 wheel excavator?

The Hyundai R210W-9 is equipped with standard tyres sized 10.00-20-16PR and has 2 outrigger stabilisers.

What is the turning radius of the Hyundai R210W-9 wheel excavator?

The Hyundai R210W-9 has an outside turning radius of 6.69 meters.

What are the excavation performance specifications of the Hyundai R210W-9 wheel excavator?

The Hyundai R210W-9 has a dredging depth of 5.48 meters, a maximum horizontal reach of 8.87 meters, and is equipped with a Monobloc boom.

What is the tear-out force of the Hyundai R210W-9 wheel excavator?

The Hyundai R210W-9 wheel excavator has a tear-out force of 133.4 kN.

What are the bucket specifications of the Hyundai R210W-9 wheel excavator?

The Hyundai R210W-9 wheel excavator has a bucket capacity of 0.8 cubic meters and a bucket width of 1.12 meters.

How much is a Hyundai R210W-9 Wheel excavator (2019u20132025) worth?

The residual value of the Hyundai R210W-9 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
