R 130 WM Hyundai Excavator Specs & Dimensions - (1999 - 2000)

Hyundai is the manufacturer of the wheel excavator model R 130 WM. Find and download detailed specs and data sheets for this machi…

Hyundai is the manufacturer of the wheel excavator model R 130 WM. Find and download detailed specs and data sheets for this machine here.

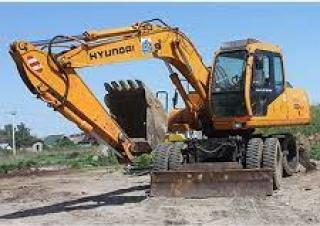

Equipped with a powerful Cummins engine, this R 130 WM 13t machine can provide 75kW or 100 horse power for the wheel excavator. The Hyundai R 130 WM can be grouped in the smallest machine segment in the wheel excavators category. The R 130 WM’s size is 2.49m x 7.95m x 3.59m. The bucket of R 130 WM has a capacity of 0,51m³ which is average for this type of machine.

Material Handling Excavator, Overload alert and Cabin adjustment are not provided on this model as of 2000. There are more detailed specifications and machine descriptions available in the original Hyundai R 130 WM specs data sheet.

This model can be acquired for a list price between €70000 and €89000. Production of the R 130 WM stopped in 2000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 5 other wheel excavators, which range from 13.9t up to 21.2t are produced by Hyundai. Of these, R 140 W 9 A, R 210 W 9 A and also R 180 W 9 A are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Hyundai R 130 WM specs data sheet on LECTURA Specs today!

Wheel Excavators Hyundai R 130 WM

Visit Hyundai live at

Technical specs - R 130 WM Hyundai

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13 t
Bucket capacity
0.51 m³
Transport length
7.95 m
Transport width
2.49 m
Transport height
3.59 m
Engine manuf.
Cummins
Engine type
B3.9C
Engine power
75 kW

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside...

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Hyundai R 130 WM FAQ

When was the Hyundai R 130 WM manufactured?

The Hyundai R 130 WM was manufactured from 1999 to 2000.

How much does the Hyundai R 130 WM wheel excavator weigh?

The Hyundai R 130 WM wheel excavator weighs 13 tons.

What are the transport dimensions of the Hyundai R 130 WM wheel excavator?

The Hyundai R 130 WM has a transport length of 7.95 meters, a transport width of 2.49 meters, and a transport height of 3.59 meters.

What is the bucket capacity of the Hyundai R 130 WM wheel excavator?

The Hyundai R 130 WM wheel excavator has a bucket capacity of 0.51 cubic meters.

How much is a Hyundai R 130 WM Wheel excavator (1999u20132000) worth?

The residual value of the Hyundai R 130 WM depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
