MX 20 G Hydrema Excavator Specs & Dimensions - (2021 - 2026)

Weight: 20.1t – Standard tyres: 10.00-20 – Bucket capacity max.: 1m³ – Boom: VA – Transport width: 2.53m – Transport height: 3.12m…

Weight: 20.1t – Standard tyres: 10.00-20 – Bucket capacity max.: 1m³ – Boom: VA – Transport width: 2.53m – Transport height: 3.12m

Check out detailed dimensions, specifications, information and technical data for Hydrema MX 20 G excavator manufactured between 2021 - 2026. Get more in-depth insight with Hydrema MX 20 G digger specifications. See information, like: Weight: 20.1t – Standard tyres: 10.00-20 – Bucket capacity max.: 1m³ – Boom: VA – Transport width: 2.53m – Transport height: 3.12m and more.

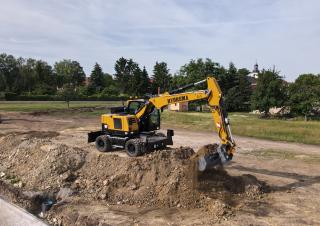

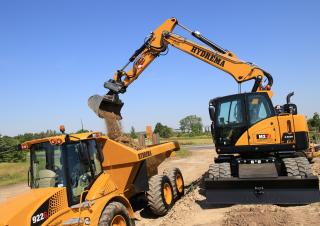

Wheel Excavators Hydrema MX 20 G
Wheel Excavators Hydrema MX 20 G
Wheel Excavators Hydrema MX 20 G
Wheel Excavators Hydrema MX 20 G

Visit Hydrema live at

Technical specs - MX 20 G Hydrema

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.1 t
Standard tyres
10.00-20
Bucket capacity max.
1 m³
Boom
VA
Transport width
2.53 m
Transport height
3.12 m
Max. Reach horizontal
10.22 m
Dredging depth
6.33 m
Tear-out force
97 kN
Model series
MX
Engine manuf.
Cummins
Engine type
B4.5
Engine power
129 kW
Displacement
4.5 l
Revolutions at max torque
1500 rpm
Max. torque
780 Nm
No. of cylinders
6
Cylinder bore x stroke
107x124 mm
Emission level
V

More technical details, like: bucket capacity, bucket capacity min., outrigger stabilisers, transport length, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hydrema MX 20 G FAQ

When was the Hydrema MX 20 G manufactured?

The Hydrema MX 20 G was first produced in 2021.

How much does the Hydrema MX 20 G weigh?

The Hydrema MX 20 G weighs 20.1 tons.

What are the transport dimensions of the Hydrema MX 20 G wheel excavator?

The Hydrema MX 20 G has a transport width of 2.53 meters and a transport height of 3.12 meters.

What are the undercarriage specifications of the Hydrema MX 20 G wheel excavator?

The Hydrema MX 20 G wheel excavator is equipped with standard tyres sized 10.00-20.

What are the excavation performance specifications of the Hydrema MX 20 G wheel excavator?

The Hydrema MX 20 G has a dredging depth of 6.33 meters, a maximum horizontal reach of 10.22 meters, and features an adjustable boom.

What is the tear-out force of the Hydrema MX 20 G wheel excavator?

The Hydrema MX 20 G wheel excavator has a tear-out force of 97 kN.

What is the maximum bucket capacity of the Hydrema MX 20 G wheel excavator?

The maximum bucket capacity of the Hydrema MX 20 G wheel excavator is 1 cubic meter.

How much is a Hydrema MX 20 G Wheel excavator (2021u20132025) worth?

The residual value of the Hydrema MX 20 G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
