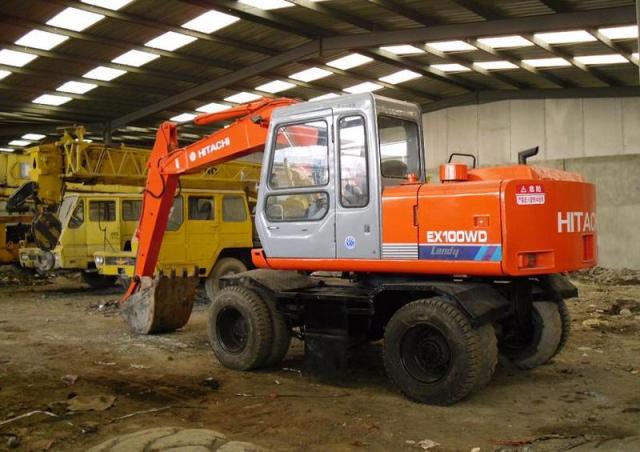

EX100WD Hitachi Excavator Specs & Dimensions - (1987 - 1993)

Weight: 10.7t – Standard tyres: 9.00-20-12PR – Bucket capacity: 0.59m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport l…

Weight: 10.7t – Standard tyres: 9.00-20-12PR – Bucket capacity: 0.59m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 7.08m

Check out detailed dimensions, specifications, information and technical data for Hitachi EX100WD excavator manufactured between 1987 - 1993. Get more in-depth insight with Hitachi EX100WD digger specifications. See information, like: Weight: 10.7t – Standard tyres: 9.00-20-12PR – Bucket capacity: 0.59m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 7.08m and more.

Wheel Excavators Hitachi EX100WD

Visit Hitachi live at

Technical specs - EX100WD Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.7 t
Standard tyres
9.00-20-12PR
Bucket capacity
0.59 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
7.08 m
Transport width
2.47 m
Transport height
3.7 m
Max. Reach horizontal
7.45 m
Dredging depth
4.71 m
Tear-out force
72 kN
Bucket width
1.07 m
Turning radius outside
6.5 m
Travel speed
34.5 km/h
Engine manuf.
Isuzu
Engine type
6BB1
Engine power
84 kW
Displacement
5.39 l
Revolutions at max torque
2800 rpm
Max. torque
335 Nm
No. of cylinders
6
Cylinder bore x stroke
102x110 mm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX100WD FAQ

When was the Hitachi EX100WD manufactured?

The Hitachi EX100WD was manufactured from 1987 to 1993.

How much does the Hitachi EX100WD wheel excavator weigh?

The Hitachi EX100WD wheel excavator weighs 10.7 tons.

What are the transport dimensions of the Hitachi EX100WD wheel excavator?

The Hitachi EX100WD has a transport length of 7.08 meters, a transport width of 2.47 meters, and a transport height of 3.7 meters.

What is the travel speed of the Hitachi EX100WD wheel excavator?

The Hitachi EX100WD has a travel speed of 34.5 km/h.

What are the undercarriage specifications of the Hitachi EX100WD wheel excavator?

The Hitachi EX100WD wheel excavator is equipped with 9.00-20-12PR standard tyres and has 2 outrigger stabilisers.

What is the turning radius of the Hitachi EX100WD wheel excavator?

The Hitachi EX100WD wheel excavator has an outside turning radius of 6.5 meters.

What are the excavation performance specifications of the Hitachi EX100WD wheel excavator?

The Hitachi EX100WD wheel excavator has a dredging depth of 4.71 meters, a maximum horizontal reach of 7.45 meters, and features an adjustable boom.

What is the tear-out force of the Hitachi EX100WD wheel excavator?

The Hitachi EX100WD wheel excavator has a tear-out force of 72 kN.

What are the bucket specifications of the Hitachi EX100WD wheel excavator?

The Hitachi EX100WD has a bucket capacity of 0.59 cubic meters and a bucket width of 1.07 meters.

How much is a Hitachi EX100WD Wheel excavator (1987u20131993) worth?

The residual value of the Hitachi EX100WD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
