EX100W Hitachi Excavator Specs & Dimensions - (1987 - 1993)

Weight: 10.4t – Standard tyres: 9.00-20-12PR – Bucket capacity: 0.59m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport l…

Weight: 10.4t – Standard tyres: 9.00-20-12PR – Bucket capacity: 0.59m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 7.08m

Check out detailed dimensions, specifications, information and technical data for Hitachi EX100W excavator manufactured between 1987 - 1993. Get more in-depth insight with Hitachi EX100W digger specifications. See information, like: Weight: 10.4t – Standard tyres: 9.00-20-12PR – Bucket capacity: 0.59m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 7.08m and more.

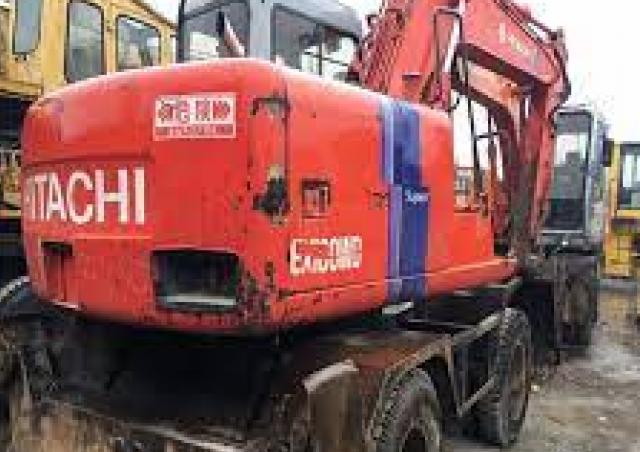

Wheel Excavators Hitachi EX100W

Visit Hitachi live at

Technical specs - EX100W Hitachi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.4 t
Standard tyres
9.00-20-12PR
Bucket capacity
0.59 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
7.08 m
Transport width
2.47 m
Transport height
3.7 m
Max. Reach horizontal
7.45 m
Dredging depth
4.71 m
Tear-out force
72 kN
Bucket width
1.07 m
Turning radius outside
6.5 m
Travel speed
34.5 km/h
Engine manuf.
Isuzu
Engine type
6BB1
Engine power
84 kW
Displacement
5.39 l
Revolutions at max torque
2800 rpm
Max. torque
335 Nm
No. of cylinders
6
Cylinder bore x stroke
102x110 mm

More technical details, like: bucket capacity min., bucket capacity max., dipper length, turning radius inside, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Hitachi EX100W FAQ

When was the Hitachi EX100W manufactured?

The Hitachi EX100W was manufactured from 1987 to 1993.

How much does the Hitachi EX100W wheel excavator weigh?

The Hitachi EX100W wheel excavator weighs 10.4 tons.

What are the transport dimensions of the Hitachi EX100W wheel excavator?

The Hitachi EX100W has a transport length of 7.08 meters, a transport width of 2.47 meters, and a transport height of 3.7 meters.

What is the travel speed of the Hitachi EX100W wheel excavator?

The Hitachi EX100W wheel excavator has a travel speed of 34.5 km/h.

What are the undercarriage specifications of the Hitachi EX100W wheel excavator?

The Hitachi EX100W wheel excavator is equipped with standard tyres sized 9.00-20-12PR and has 2 outrigger stabilisers.

What is the turning radius of the Hitachi EX100W wheel excavator?

The Hitachi EX100W wheel excavator has an outside turning radius of 6.5 meters.

What are the excavation performance specifications of the Hitachi EX100W wheel excavator?

The Hitachi EX100W wheel excavator has a dredging depth of 4.71 meters, a maximum horizontal reach of 7.45 meters, and features an adjustable boom.

What is the tear-out force of the Hitachi EX100W wheel excavator?

The Hitachi EX100W wheel excavator has a tear-out force of 72 kN.

What are the specifications of the primary work tool on the Hitachi EX100W wheel excavator?

The primary work tool of the Hitachi EX100W wheel excavator has a bucket capacity of 0.59 cubic meters and a bucket width of 1.07 meters.

How much is a Hitachi EX100W Wheel excavator (1987u20131993) worth?

The residual value of the Hitachi EX100W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

Hitachi EX100W overview

Undercarriage

Brakes

Service brake. Air-over hydraulic brake acting on all wheels: internal-expanding, leading-and-trailing-shoe type for all wheels. Brake lines are independent to front wheels and rear wheels. Digging brake. Acting on all wheels and oscillation (lever) lock cylinders for digging operation. Parking brake. Air-operated, spring-set/air-released, internal-expanding, duo-servo shoe type acting on horizontal propelling shaft.


Axles

Full-floating front axle is center-pin supported for oscillation. It can be locked by oscillation lock cylinders. Full-floating rear axle is fixed on the chassis.


Operator's cab

Operator Cab

Independent, 940 mm (37") wide 1 620 mm (64") high, roomy cab conforming to ISO Standard. 4-side reinforced glass windows give all-round visibility. Front windows (upper and lower) fully open and store in the cab. Fully adjustable reclining seat with armrests and shock absorber. Right and left control levers can be tilted fore and aft. Headguard and cab cooler are optionally available.


Swing system

Swing Mechanism

High-torque, axial piston motor with planetary reduction gear run in oil. The swing circle is a single-row, shear-type ball bearing with an induction-hardened internal gear. Both the internal gear and pinion gear are immersed in lubricant. Additionally, the swing parking brake is of spring-set/hydraulic-released disc type. The swing speed is 12.5 min-1 (12.5 rpm).
