M 805 B Eder Excavator Specs & Dimensions - (1991 - 1995)

Eder is the manufacturer of the wheel excavator model M 805 B. Find and download detailed specs and data sheets for this machine h…

Eder is the manufacturer of the wheel excavator model M 805 B. Find and download detailed specs and data sheets for this machine here.

The Eder M 805 B is a 12t machine with Perkins engine which powers this model with up to 70kW or 93 horse power. This Eder wheel excavator belongs to the smallest machine segment in the wheel excavators category. The bucket of M 805 B has a capacity of 0,6m³ which is average for this type of machine.

It has been sold without air Quick hitch mech., Track guidance and Overload alert as of 1995. There are more detailed specifications and machine descriptions available in the original Eder M 805 B specs data sheet.

This model can be acquired for a list price between €120000 and €153000. Production of the M 805 B stopped in 1995. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Eder currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest Eder M 805 B specs data sheet on LECTURA Specs today!

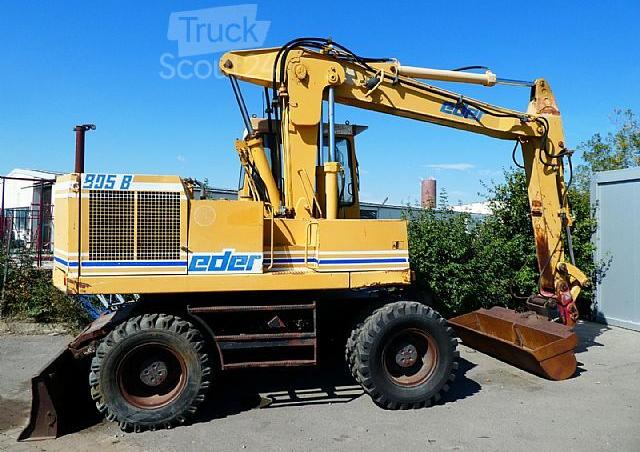

Wheel Excavators Eder M 805 B

Technical specs - M 805 B Eder

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12 t
Standard tyres
9.00-20
Bucket capacity
0.6 m³
Engine manuf.
Perkins
Engine type
1004.4T
Engine power
70 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Eder M 805 B FAQ

When was the Eder M 805 B manufactured?

The Eder M 805 B was manufactured from 1991 to 1995.

How much does the Eder M 805 B wheel excavator weigh?

The Eder M 805 B wheel excavator weighs 12 tons.

What are the undercarriage tyre specifications of the Eder M 805 B wheel excavator?

The Eder M 805 B wheel excavator is equipped with standard tyres sized 9.00-20.

What is the bucket capacity of the Eder M 805 B wheel excavator?

The bucket capacity of the Eder M 805 B wheel excavator is 0.6 cubic meters.

How much is a Eder M 805 B Wheel excavator (1991u20131995) worth?

The residual value of the Eder M 805 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
