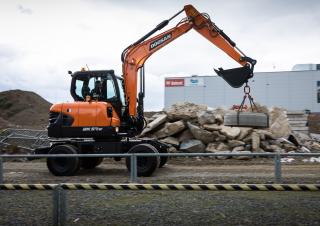

Wheel Excavators Doosan DX57W-7
Wheel Excavators Doosan DX57W-7
Wheel Excavators Doosan DX57W-7
Wheel Excavators Doosan DX57W-7
Wheel Excavators Doosan DX57W-7
Wheel Excavators Doosan DX57W-7
Wheel Excavators Doosan DX57W-7
Wheel Excavators Doosan DX57W-7
Wheel Excavators Doosan DX57W-7
Wheel Excavators Doosan DX57W-7
Wheel Excavators Doosan DX57W-7
Wheel Excavators Doosan DX57W-7

Technical specs - DX57W-7 Doosan

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.88 t
Standard tyres
12-16.5 12PR
Bucket capacity min.
0.18 m³
Transport length
6.1 m
Transport width
1.92 m
Transport height
2.86 m
Max. Reach horizontal
5.888 m
Dredging depth
3.495 m
Tear-out force
41.85 kN
Bucket width
0.724 m
Travel speed
30 km/h
Model series
DX
Engine manuf.
Doosan
Engine type
D24
Engine power
42.5 kW
Displacement
2.392 l
Revolutions at max torque
2400 rpm
No. of cylinders
4
Cylinder bore x stroke
90x94 mm
Emission level
V

More technical details, like: bucket capacity, bucket capacity max., boom, outrigger stabilisers, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Doosan DX57W-7 FAQ

When was the Doosan DX57W-7 manufactured?

The Doosan DX57W-7 was manufactured from 2021 to 2023.

How much does the Doosan DX57W-7 wheel excavator weigh?

The Doosan DX57W-7 wheel excavator weighs 5.88 tons.

What are the transport dimensions of the Doosan DX57W-7 wheel excavator?

The Doosan DX57W-7 has transport dimensions of 6.1 meters in length, 1.92 meters in width, and 2.86 meters in height.

What is the travel speed of the Doosan DX57W-7 wheel excavator?

The Doosan DX57W-7 has a travel speed of 30 km/h.

What are the undercarriage tyre specifications of the Doosan DX57W-7 wheel excavator?

The Doosan DX57W-7 wheel excavator is equipped with standard tyres sized 12-16.5 12PR.

What are the dredging depth and maximum horizontal reach of the Doosan DX57W-7 wheel excavator?

The Doosan DX57W-7 has a dredging depth of 3.495 meters and a maximum horizontal reach of 5.888 meters.

What is the power rating of the Doosan DX57W-7 wheel excavator?

There is no power rating data available for the Doosan DX57W-7 wheel excavator in the provided information.

What are the bucket specifications of the Doosan DX57W-7 wheel excavator?

The Doosan DX57W-7 wheel excavator has a minimum bucket capacity of 0.18 cubic meters and a bucket width of 0.724 meters.
