DX57W-7 Develon Excavator Specs & Dimensions - (2023 - 2026)

Weight: 5.8t – Standard tyres: 12-16.5 12PR – Bucket capacity: 0.175m³ – Bucket capacity min.: 0.07m³ – Bucket capacity max.: 0.19…

Weight: 5.8t – Standard tyres: 12-16.5 12PR – Bucket capacity: 0.175m³ – Bucket capacity min.: 0.07m³ – Bucket capacity max.: 0.19m³ – Boom: MB

Check out detailed dimensions, specifications, information and technical data for Develon DX57W-7 excavator manufactured between 2023 - 2026. Get more in-depth insight with Develon DX57W-7 digger specifications. See information, like: Weight: 5.8t – Standard tyres: 12-16.5 12PR – Bucket capacity: 0.175m³ – Bucket capacity min.: 0.07m³ – Bucket capacity max.: 0.19m³ – Boom: MB and more.

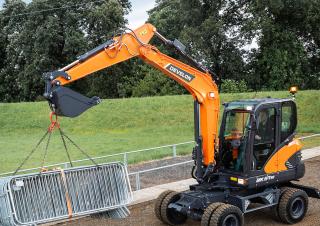

Wheel Excavators Develon DX57W-7
Wheel Excavators Develon DX57W-7
Wheel Excavators Develon DX57W-7
Wheel Excavators Develon DX57W-7

Visit Develon live at

Technical specs - DX57W-7 Develon

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
5.8 t
Standard tyres
12-16.5 12PR
Bucket capacity
0.175 m³
Bucket capacity min.
0.07 m³
Bucket capacity max.
0.19 m³
Boom
MB
Transport length
5.896 m
Transport width
1.947 m
Transport height
3.633 m
Max. Reach horizontal
5.888 m
Dredging depth
3.495 m
Bucket width
0.724 m
Dipper length
1.6 m
Turning radius outside
4.85 m
Travel speed
30 km/h
Model series
DX
Engine manuf.
Develon
Engine type
DM02VB
Engine power
42.5 kW
Dimension lxwxh
742x576x706  mm
Displacement
2.392 l
Revolutions at max torque
2400 rpm
Max. torque
206/1600 Nm
No. of cylinders
4
Cylinder bore x stroke
90x94 mm
Emission level
Stage V

More technical details, like: outrigger stabilisers, tear-out force, turning radius inside are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Develon DX57W-7 FAQ

When was the Develon DX57W-7 manufactured?

The Develon DX57W-7 was first produced in 2023.

How much does the Develon DX57W-7 weigh?

The Develon DX57W-7 weighs 5.8 tons.

What are the transport dimensions of the Develon DX57W-7 wheel excavator?

The Develon DX57W-7 has a transport length of 5.896 meters, a transport width of 1.947 meters, and a transport height of 3.633 meters.

What is the travel speed of the Develon DX57W-7 wheel excavator?

The Develon DX57W-7 has a travel speed of 30 km/h.

What are the undercarriage specifications of the Develon DX57W-7 wheel excavator?

The Develon DX57W-7 is equipped with standard tyres sized 12-16.5 12PR.

What is the turning radius of the Develon DX57W-7 wheel excavator?

The Develon DX57W-7 has an outside turning radius of 4.85 meters.

What are the excavation performance specifications of the Develon DX57W-7 wheel excavator?

The Develon DX57W-7 has a dredging depth of 3.495 meters, a maximum horizontal reach of 5.888 meters, features a monobloc boom, and has a dipper length of 1.6 meters.

What are the specifications of the primary work tool bucket on the Develon DX57W-7 wheel excavator?

The Develon DX57W-7 wheel excavator has a bucket with a capacity ranging from 0.07 to 0.19 cubic meters, a standard capacity of 0.175 cubic meters, and a bucket width of 0.724 meters.

How much is a Develon DX57W-7 Wheel excavator (2023u20132025) worth?

The residual value of the Develon DX57W-7 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
