M312 Caterpillar Excavator Specs & Dimensions - (1996 - 2007)

Weight: 13.69t – Standard tyres: 10.00-20 14PR/11.00-20 16PR – Bucket capacity min.: 0.24m³ – Bucket capacity max.: 0.86m³ – Boom:…

Weight: 13.69t – Standard tyres: 10.00-20 14PR/11.00-20 16PR – Bucket capacity min.: 0.24m³ – Bucket capacity max.: 0.86m³ – Boom: MB – Transport length: 8.09m

Check out detailed dimensions, specifications, information and technical data for Caterpillar M312 excavator manufactured between 1996 - 2007. Get more in-depth insight with Caterpillar M312 digger specifications. See information, like: Weight: 13.69t – Standard tyres: 10.00-20 14PR/11.00-20 16PR – Bucket capacity min.: 0.24m³ – Bucket capacity max.: 0.86m³ – Boom: MB – Transport length: 8.09m and more.

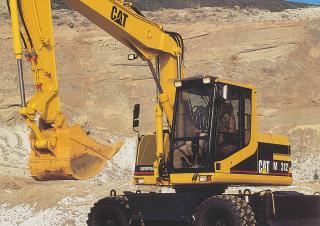

Wheel Excavators Caterpillar M312

Technical specs - M312 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.69 t
Standard tyres
10.00-20 14PR/11.00-20 16PR
Bucket capacity min.
0.24 m³
Bucket capacity max.
0.86 m³
Boom
MB
Transport length
8.09 m
Transport width
2.5 m
Transport height
3.29 m
Max. Reach horizontal
9.22 m
Dredging depth
6 m
Tear-out force
80 kN
Bucket width
1.2 m
Turning radius outside
16.4 m
Travel speed
34 km/h
Engine manuf.
Caterpillar
Engine type
3054 DITA
Engine power
81.1 kW
Displacement
3.99 l
No. of cylinders
4
Cylinder bore x stroke
100x127 mm

More technical details, like: bucket capacity, outrigger stabilisers, dipper length, turning radius inside, model series, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar M312 FAQ

When was the Caterpillar M312 manufactured?

The Caterpillar M312 was manufactured from 1996 to 2007.

How much does the Caterpillar M312 wheel excavator weigh?

The Caterpillar M312 wheel excavator weighs 13.69 tons.

What are the transport dimensions of the Caterpillar M312 wheel excavator?

The Caterpillar M312 has a transport length of 8.09 meters, a transport width of 2.5 meters, and a transport height of 3.29 meters.

What is the travel speed of the Caterpillar M312 wheel excavator?

The Caterpillar M312 wheel excavator has a travel speed of 34 km/h.

What are the undercarriage specifications of the Caterpillar M312 wheel excavator?

The Caterpillar M312 wheel excavator is equipped with standard tyres sized 10.00-20 14PR and 11.00-20 16PR.

What is the turning radius of the Caterpillar M312 wheel excavator?

The Caterpillar M312 wheel excavator has an outside turning radius of 16.4 meters.

What are the excavation performance specifications of the Caterpillar M312 wheel excavator?

The Caterpillar M312 wheel excavator has a dredging depth of 6 meters, a maximum horizontal reach of 9.22 meters, and features a monobloc boom.

What is the tear-out force of the Caterpillar M312 wheel excavator?

The Caterpillar M312 wheel excavator has a tear-out force of 80 kN.

What are the bucket specifications of the Caterpillar M312 wheel excavator?

The Caterpillar M312 wheel excavator has a bucket width of 1.2 meters, with a maximum capacity of 0.86 cubic meters and a minimum capacity of 0.24 cubic meters.

How much is a Caterpillar M312 Wheel excavator (1996u20132007) worth?

The residual value of the Caterpillar M312 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
