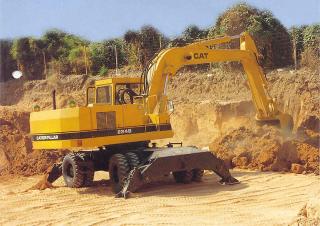

224 B Caterpillar Excavator Specs & Dimensions - (1991 - 1994)

Caterpillar is the manufacturer of the wheel excavator model 224 B. Find and download detailed specs and data sheets for this mach…

Caterpillar is the manufacturer of the wheel excavator model 224 B. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 100kW or 134 horse power, delivered from its powerful Caterpillar engine to the 20.3t 224 B machine. The 224 B is categorised in the biggest machine segment in the wheel excavators category. The model's dimensions are 9.34m x 2.66m x 3.19m. The bucket capacity of 224 B is 1,2m³, which is above average for this type of machine.

It has been sold without air Overload alert, Material Handling Excavator and Aircondition as of 1994. There are more detailed specifications and machine descriptions available in the original Caterpillar 224 B specs data sheet. Specification sheet is available for a free download in German - providing the machine descriptions and more detailed specs about this particular model.

This model can be acquired for a list price between €189000 and €241000. Production of the 224 B stopped in 1994. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 20 other wheel excavators, which range from 13.7t up to 39.5t are produced by Caterpillar. Of these, M 314 F, M 320 F and also M 318 F are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Caterpillar 224 B specs data sheet on LECTURA Specs today!

Wheel Excavators Caterpillar 224 B

Technical specs - 224 B Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.3 t
Standard tyres
18-19.5
Bucket capacity
1.2 m³
Transport length
9.34 m
Transport width
2.66 m
Transport height
3.19 m
Engine manuf.
Caterpillar
Engine type
3116 DIT
Engine power
100 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download specalog and datasheets (PDF)

Caterpillar 224 B FAQ

When was the Caterpillar 224 B wheel excavator manufactured?

The Caterpillar 224 B was manufactured from 1991 to 1994.

How much does the Caterpillar 224 B wheel excavator weigh?

The Caterpillar 224 B wheel excavator weighs 20.3 tons.

What are the transport dimensions of the Caterpillar 224 B wheel excavator?

The Caterpillar 224 B has a transport length of 9.34 meters, a transport width of 2.66 meters, and a transport height of 3.19 meters.

What are the undercarriage specifications of the Caterpillar 224 B wheel excavator?

The Caterpillar 224 B wheel excavator is equipped with standard tyres sized 18-19.5.

What is the bucket capacity of the Caterpillar 224 B wheel excavator?

The Caterpillar 224 B wheel excavator has a bucket capacity of 1.2 cubic meters.

How much is a Caterpillar 224 B Wheel excavator (1991u20131994) worth?

The residual value of the Caterpillar 224 B depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
