WX95 Case Excavator Specs & Dimensions - (2004 - 2019)

Weight: 10t – Standard tyres: 17 .5 x 25 L2 – Transport length: 6.97m – Transport width: 2.2m – Transport height: 3.02m – Max. Rea…

Weight: 10t – Standard tyres: 17 .5 x 25 L2 – Transport length: 6.97m – Transport width: 2.2m – Transport height: 3.02m – Max. Reach horizontal: 7.74m

Check out detailed dimensions, specifications, information and technical data for Case WX95 excavator manufactured between 2004 - 2019. Get more in-depth insight with Case WX95 digger specifications. See information, like: Weight: 10t – Standard tyres: 17 .5 x 25 L2 – Transport length: 6.97m – Transport width: 2.2m – Transport height: 3.02m – Max. Reach horizontal: 7.74m and more.

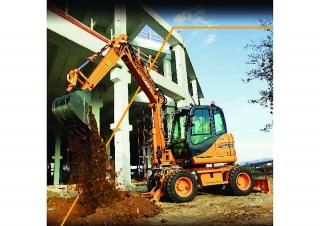

Wheel Excavators Case WX95

Technical specs - WX95 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10 t
Standard tyres
17 .5 x 25 L2
Transport length
6.97 m
Transport width
2.2 m
Transport height
3.02 m
Max. Reach horizontal
7.74 m
Dredging depth
3.95 m
Travel speed
33 km/h
Engine manuf.
Case
Engine type
439TC-M2
Engine power
74 kW
Displacement
3.9 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX95 FAQ

When was the Case WX95 wheel excavator manufactured?

The Case WX95 wheel excavator was manufactured from 2004 to 2019.

How much does the Case WX95 wheel excavator weigh?

The Case WX95 wheel excavator weighs 10 tons.

What are the transport dimensions of the Case WX95 wheel excavator?

The Case WX95 has a transport length of 6.97 meters, a transport width of 2.2 meters, and a transport height of 3.02 meters.

What is the travel speed of the Case WX95 wheel excavator?

The Case WX95 wheel excavator has a travel speed of 33 km/h.

What are the undercarriage specifications of the Case WX95 wheel excavator?

The Case WX95 wheel excavator is equipped with standard tyres sized 17.5 x 25 L2.

What are the excavation performance specifications of the Case WX95 wheel excavator?

The Case WX95 wheel excavator has a dredging depth of 3.95 meters and a maximum horizontal reach of 7.74 meters.
