WX125 S-2 Case Excavator Specs & Dimensions - (2007 - 2019)

Weight: 12.6t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.23m³ – Bucket capacity max.: 0.57m³ – Boom: MB – Transport…

Weight: 12.6t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.23m³ – Bucket capacity max.: 0.57m³ – Boom: MB – Transport length: 7.73m

Check out detailed dimensions, specifications, information and technical data for Case WX125 S-2 excavator manufactured between 2007 - 2019. Get more in-depth insight with Case WX125 S-2 digger specifications. See information, like: Weight: 12.6t – Standard tyres: 10.00-20 16PR – Bucket capacity min.: 0.23m³ – Bucket capacity max.: 0.57m³ – Boom: MB – Transport length: 7.73m and more.

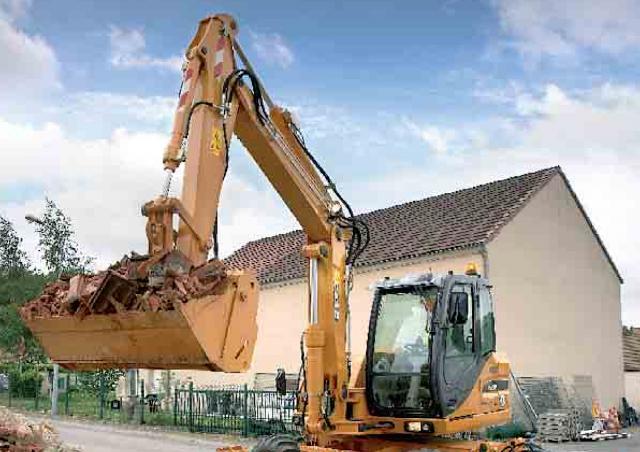

Wheel Excavators Case WX125 S-2

Technical specs - WX125 S-2 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.6 t
Standard tyres
10.00-20 16PR
Bucket capacity min.
0.23 m³
Bucket capacity max.
0.57 m³
Boom
MB
Transport length
7.73 m
Transport width
2.48 m
Transport height
3.09 m
Max. Reach horizontal
8.82 m
Dredging depth
4.84 m
Tear-out force
73 kN
Bucket width
0.9 m
Turning radius outside
8.4 m
Travel speed
33 km/h
Model series
S
Engine manuf.
Case
Engine type
F4GE9484H*J6
Engine power
84 kW
Displacement
4.5 l
Revolutions at max torque
1200 rpm
Max. torque
495 Nm
No. of cylinders
4
Cylinder bore x stroke
104x132 mm

More technical details, like: bucket capacity, outrigger stabilisers, dipper length, turning radius inside, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX125 S-2 FAQ

When was the Case WX125 S-2 manufactured?

The Case WX125 S-2 was manufactured from 2007 to 2019.

How much does the Case WX125 S-2 weigh?

The Case WX125 S-2 weighs 12.6 tons.

What are the transport dimensions of the Case WX125 S-2 wheel excavator?

The Case WX125 S-2 has a transport length of 7.73 meters, a transport width of 2.48 meters, and a transport height of 3.09 meters.

What is the travel speed of the Case WX125 S-2 wheel excavator?

The Case WX125 S-2 has a travel speed of 33 km/h.

What are the undercarriage specifications of the Case WX125 S-2 wheel excavator?

The Case WX125 S-2 is equipped with standard tyres sized 10.00-20 16PR.

What is the turning radius of the Case WX125 S-2 wheel excavator?

The Case WX125 S-2 has an outside turning radius of 8.4 meters.

What are the excavation performance specifications of the Case WX125 S-2 wheel excavator?

The Case WX125 S-2 has a dredging depth of 4.84 meters, a maximum horizontal reach of 8.82 meters, and is equipped with a monobloc boom.

What is the tear-out force of the Case WX125 S-2 wheel excavator?

The Case WX125 S-2 wheel excavator has a tear-out force of 73 kN.

What are the bucket specifications of the Case WX125 S-2 wheel excavator?

The Case WX125 S-2 has a bucket with a maximum capacity of 0.57 cubic meters, a minimum capacity of 0.23 cubic meters, and a width of 0.9 meters.
