WX125 Case Excavator Specs & Dimensions - (2004 - 2019)

Weight: 12.6t – Standard tyres: 17 .5 x 25 L2 – Transport length: 7.73m – Transport width: 2.48m – Transport height: 3.085m – Max.…

Weight: 12.6t – Standard tyres: 17 .5 x 25 L2 – Transport length: 7.73m – Transport width: 2.48m – Transport height: 3.085m – Max. Reach horizontal: 8.47m

Check out detailed dimensions, specifications, information and technical data for Case WX125 excavator manufactured between 2004 - 2019. Get more in-depth insight with Case WX125 digger specifications. See information, like: Weight: 12.6t – Standard tyres: 17 .5 x 25 L2 – Transport length: 7.73m – Transport width: 2.48m – Transport height: 3.085m – Max. Reach horizontal: 8.47m and more.

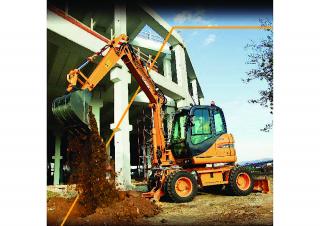

Wheel Excavators Case WX125

Technical specs - WX125 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.6 t
Standard tyres
17 .5 x 25 L2
Transport length
7.73 m
Transport width
2.48 m
Transport height
3.085 m
Max. Reach horizontal
8.47 m
Dredging depth
4.49 m
Travel speed
33 km/h
Engine manuf.
Case
Engine type
439TA-M2
Engine power
87 kW
Displacement
3.9 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., boom, outrigger stabilisers, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX125 FAQ

When was the Case WX125 manufactured?

The Case WX125 was manufactured from 2004 to 2019.

How much does the Case WX125 wheel excavator weigh?

The Case WX125 wheel excavator weighs 12.6 tons.

What are the transport dimensions of the Case WX125 wheel excavator?

The Case WX125 has a transport length of 7.73 meters, a transport width of 2.48 meters, and a transport height of 3.09 meters.

What is the travel speed of the Case WX125 wheel excavator?

The Case WX125 wheel excavator has a travel speed of 33 km/h.

What are the undercarriage specifications of the Case WX125?

The Case WX125 is equipped with standard tyres sized 17.5 x 25 L2.

What are the excavation performance specifications of the Case WX125 wheel excavator?

The Case WX125 has a dredging depth of 4.49 meters and a maximum horizontal reach of 8.47 meters.

How much is a Case WX125 Wheel excavator (2004u20132019) worth?

The residual value of the Case WX125 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
