WX 95 Case Excavator Specs & Dimensions - (2005 - 2008)

The WX 95 wheel excavator model is manufactured by case. Find and download detailed specs and data sheets for this machine here. …

The WX 95 wheel excavator model is manufactured by case. Find and download detailed specs and data sheets for this machine here.

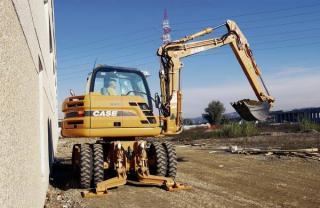

The case WX 95 is a 9.5t machine with case engine which powers this model with up to 74kW or 99 horse power. The WX 95 is categorised in the smallest machine segment in the wheel excavators category. The model's dimensions are 6.97m x 2.2m x 3.025m. The bucket of WX 95 has a capacity of 0,8m³ which is average for this type of machine.

The case WX 95 has been equipped and sold with Aircondition. It does not include Material Handling Excavator, Overload alert and Track guidance. There are more detailed specifications and machine descriptions available in the original case WX 95 specs data sheet. Available in German and Chinese, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €86000 and €109000. Production of the WX 95 stopped in 2008. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Case currently produces 4 other wheel excavators, which range from 15.4t up to 20.8t - the most visited on LECTURA Specs are WX 188, WX 168, WX 148. Currently, 4 models of the WX 95 wheel excavator exist, at an average sale value of €25500 at 10 years of age. Want more detailed specifications? Download the latest case WX 95 specs data sheet on LECTURA Specs today!

Wheel Excavators Case WX 95

Technical specs - WX 95 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.5 t
Standard tyres
8.25-20
Bucket capacity
0.8 m³
Boom
VA
Transport length
6.97 m
Transport width
2.2 m
Transport height
3.025 m
Max. Reach horizontal
8.4 m
Dredging depth
4.3 m
Tear-out force
40.1 kN
Bucket width
0.35 m
Engine manuf.
Case
Engine type
439TC-M2
Engine power
74 kW
Displacement
3.9 l
Revolutions at max torque
2100 rpm

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, dipper length, turning radius inside, turning radius outside, travel speed, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case WX 95 FAQ

When was the Case WX 95 manufactured?

The Case WX 95 was manufactured from 2005 to 2008.

How much does the Case WX 95 wheel excavator weigh?

The Case WX 95 wheel excavator weighs 9.5 tons.

What are the transport dimensions of the Case WX 95 wheel excavator?

The Case WX 95 has a transport length of 6.97 meters, a transport width of 2.2 meters, and a transport height of 3.03 meters.

What are the undercarriage specifications of the Case WX 95 wheel excavator?

The Case WX 95 wheel excavator is equipped with standard tyres sized 8.25-20.

What are the excavation performance specifications of the Case WX 95 wheel excavator?

The Case WX 95 wheel excavator has a dredging depth of 4.3 meters, a maximum horizontal reach of 8.4 meters, and features an adjustable boom.

What is the tear-out force of the Case WX 95?

The Case WX 95 has a tear-out force of 40.1 kN.

What are the bucket specifications of the Case WX 95 wheel excavator?

The Case WX 95 wheel excavator has a bucket capacity of 0.8 cubic meters and a bucket width of 0.35 meters.

How much is a Case WX 95 Wheel excavator (2005u20132008) worth?

The residual value of the Case WX 95 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
