688 P 2A Case Poclain Excavator Specs & Dimensions - (1989 - 1993)

Case Poclain is the manufacturer of the wheel excavator model 688 P 2A. Find and download detailed specs and data sheets for this …

Case Poclain is the manufacturer of the wheel excavator model 688 P 2A. Find and download detailed specs and data sheets for this machine here.

The Case Poclain 688 P 2A is a 13.5t machine with case engine which powers this model with up to 65kW or 87 horse power. The 688 P 2A is categorised in the smallest machine segment in the wheel excavators category. The 688 P 2A’s size is 2.49m x 7.65m x 3.23m. The bucket of 688 P 2A has a capacity of 0,7m³ which is average for this type of machine.

It has been sold without air Aircondition, Cabin adjustment and Quick hitch mech. As of 1993. There are more detailed specifications and machine descriptions available in the original Case Poclain 688 P 2A specs data sheet.

This model can be acquired for a list price between €133000 and €169000. Production of the 688 P 2A stopped in 1993. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Case Poclain models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest Case Poclain 688 P 2A specs data sheet on LECTURA Specs today!

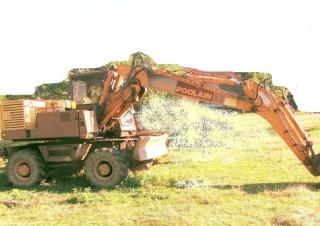

Wheel Excavators Case Poclain 688 P 2A

Technical specs - 688 P 2A Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.5 t
Standard tyres
10.00-20
Bucket capacity
0.7 m³
Transport length
7.65 m
Transport width
2.49 m
Transport height
3.23 m
Model series
P
Engine manuf.
Case
Engine type
4T 390
Engine power
65 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Case Poclain 688 P 2A FAQ

When was the Case Poclain 688 P 2A manufactured?

The Case Poclain 688 P 2A was manufactured from 1989 to 1993.

How much does the Case Poclain 688 P 2A weigh?

The Case Poclain 688 P 2A weighs 13.5 tons.

What are the transport dimensions of the Case Poclain 688 P 2A wheel excavator?

The Case Poclain 688 P 2A has a transport length of 7.65 meters, a transport width of 2.49 meters, and a transport height of 3.23 meters.

What are the undercarriage specifications of the Case Poclain 688 P 2A?

The Case Poclain 688 P 2A is equipped with standard tyres sized 10.00-20.

What is the bucket capacity of the Case Poclain 688 P 2A wheel excavator?

The Case Poclain 688 P 2A has a bucket capacity of 0.7 cubic meters.

How much is a Case Poclain 688 P 2A Wheel excavator (1989u20131993) worth?

The residual value of the Case Poclain 688 P 2A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
