688 B P2A Case Poclain Excavator Specs & Dimensions - (1993 - 1995)

The 688 B P2A wheel excavator model is manufactured by Case Poclain. Find and download detailed specs and data sheets for this mac…

The 688 B P2A wheel excavator model is manufactured by Case Poclain. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 65kW or 87 horse power, delivered from its powerful case engine to the 13.5t 688 B P2A machine. This Case Poclain wheel excavator belongs to the smallest machine segment in the wheel excavators category. The model's dimensions are 7.65m x 2.49m x 3.23m. The bucket capacity of 688 B P2A is 0,7m³, which is above average for this type of machine.

It has been sold without air Overload alert, Quick hitch mech. And Blade as of 1995. There are more detailed specifications and machine descriptions available in the original Case Poclain 688 B P2A specs data sheet. You can download it for free in German on LECTURA Specs.

The production stopped in 1995, where this 688 B P2A was available at a new list price between €145000 and €184000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Case Poclain models of this type on LECTURA Specs are the, and other wheel excavators, which currently range from up to are also available. Want more detailed specifications? Download the latest Case Poclain 688 B P2A specs data sheet on LECTURA Specs today!

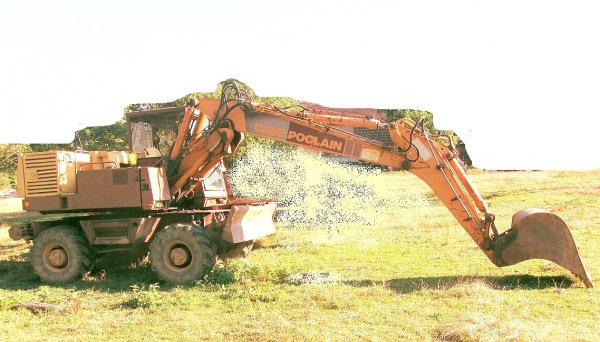

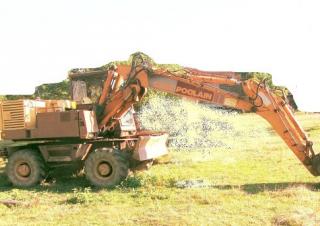

Wheel Excavators Case Poclain 688 B P2A

Technical specs - 688 B P2A Case Poclain

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.5 t
Standard tyres
10.00-20
Bucket capacity
0.7 m³
Transport length
7.65 m
Transport width
2.49 m
Transport height
3.23 m
Model series
B
Engine manuf.
Case
Engine type
4T 390
Engine power
65 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case Poclain 688 B P2A FAQ

When was the Case Poclain 688 B P2A manufactured?

The Case Poclain 688 B P2A was manufactured from 1993 to 1995.

How much does the Case Poclain 688 B P2A weigh?

The Case Poclain 688 B P2A weighs 13.5 tons.

What are the transport dimensions of the Case Poclain 688 B P2A wheel excavator?

The Case Poclain 688 B P2A has a transport length of 7.65 meters, a transport width of 2.49 meters, and a transport height of 3.23 meters.

What are the undercarriage specifications of the Case Poclain 688 B P2A?

The Case Poclain 688 B P2A is equipped with standard tyres sized 10.00-20.

What is the bucket capacity of the Case Poclain 688 B P2A wheel excavator?

The bucket capacity of the Case Poclain 688 B P2A wheel excavator is 0.7 cubic meters.

How much is a Case Poclain 688 B P2A Wheel excavator (1993u20131995) worth?

The residual value of the Case Poclain 688 B P2A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
