ZM70 Zeppelin Excavator Specs & Dimensions - (2018 - 2020)

Weight: 6.9t – Standard tyres: 7.50-15/14PR – Bucket capacity: 0.32m³ – Transport length: 6.22m – Transport width: 2.088m – Transp…

Weight: 6.9t – Standard tyres: 7.50-15/14PR – Bucket capacity: 0.32m³ – Transport length: 6.22m – Transport width: 2.088m – Transport height: 2.775m

Check out detailed dimensions, specifications, information and technical data for Zeppelin ZM70 excavator manufactured between 2018 - 2020. Get more in-depth insight with Zeppelin ZM70 digger specifications. See information, like: Weight: 6.9t – Standard tyres: 7.50-15/14PR – Bucket capacity: 0.32m³ – Transport length: 6.22m – Transport width: 2.088m – Transport height: 2.775m and more.

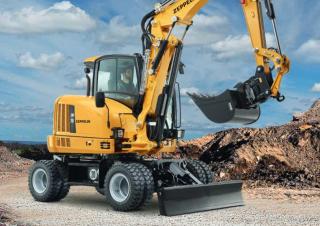

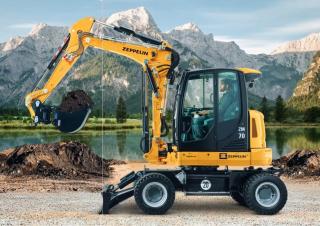

Wheel Excavators Zeppelin ZM70
Wheel Excavators Zeppelin ZM70
Wheel Excavators Zeppelin ZM70
Wheel Excavators Zeppelin ZM70

Visit Zeppelin live at

Technical specs - ZM70 Zeppelin

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.9 t
Standard tyres
7.50-15/14PR
Bucket capacity
0.32 m³
Transport length
6.22 m
Transport width
2.088 m
Transport height
2.775 m
Max. Reach horizontal
6.406 m
Dredging depth
3.596 m
Tear-out force
30.8 kN
Travel speed
20 km/h
Model series
ZM
Engine manuf.
Perkins
Engine type
404D-22T
Engine power
36.2 kW
Displacement
2.216 l
No. of cylinders
4
Emission level
IIIA

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Zeppelin ZM70 FAQ

When was the Zeppelin ZM70 manufactured?

The Zeppelin ZM70 was manufactured from 2018 to 2020.

How much does the Zeppelin ZM70 wheel excavator weigh?

The Zeppelin ZM70 wheel excavator weighs 6.9 tons.

What are the transport dimensions of the Zeppelin ZM70 wheel excavator?

The Zeppelin ZM70 has a transport length of 6.22 meters, a transport width of 2.09 meters, and a transport height of 2.78 meters.

What is the travel speed of the Zeppelin ZM70 wheel excavator?

The Zeppelin ZM70 wheel excavator has a travel speed of 20 km/h.

What are the undercarriage specifications of the Zeppelin ZM70 wheel excavator?

The Zeppelin ZM70 wheel excavator is equipped with standard tyres sized 7.50-15/14PR.

What are the excavation performance specifications of the Zeppelin ZM70 wheel excavator?

The Zeppelin ZM70 wheel excavator has a dredging depth of 3.596 meters and a maximum horizontal reach of 6.406 meters.

What is the tear-out force of the Zeppelin ZM70 wheel excavator?

The Zeppelin ZM70 wheel excavator has a tear-out force of 30.8 kN.

What is the bucket capacity of the Zeppelin ZM70 wheel excavator?

The bucket capacity of the Zeppelin ZM70 wheel excavator is 0.32 cubic meters.

How much is a Zeppelin ZM70 Wheel excavator (2018u20132020) worth?

The residual value of the Zeppelin ZM70 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
