B110W Yanmar Excavator Specs & Dimensions - (2019 - 2024)

Weight: 12.5t – Standard tyres: 9.00-20. 14 PR – Bucket capacity: 0.477m³ – Transport length: 7.9m – Transport width: 2.5m – Trans…

Weight: 12.5t – Standard tyres: 9.00-20. 14 PR – Bucket capacity: 0.477m³ – Transport length: 7.9m – Transport width: 2.5m – Transport height: 2.9m

Check out detailed dimensions, specifications, information and technical data for Yanmar B110W excavator manufactured between 2019 - 2024. Get more in-depth insight with Yanmar B110W digger specifications. See information, like: Weight: 12.5t – Standard tyres: 9.00-20. 14 PR – Bucket capacity: 0.477m³ – Transport length: 7.9m – Transport width: 2.5m – Transport height: 2.9m and more.

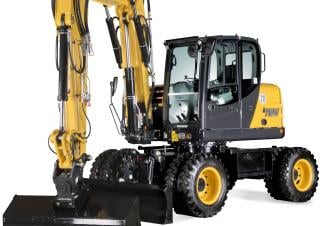

Wheel Excavators Yanmar B110W

Technical specs - B110W Yanmar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.5 t
Standard tyres
9.00-20. 14 PR
Bucket capacity
0.477 m³
Transport length
7.9 m
Transport width
2.5 m
Transport height
2.9 m
Max. Reach horizontal
8.09 m
Dredging depth
4.44 m
Tear-out force
72 kN
Turning radius outside
7.2 m
Model series
B
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
85 kW
Displacement
3.6 l
Revolutions at max torque
1600 rpm
Max. torque
460 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, travel speed, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Yanmar B110W FAQ

When was the Yanmar B110W manufactured?

The Yanmar B110W was manufactured from 2019 to 2024.

How much does the Yanmar B110W wheel excavator weigh?

The Yanmar B110W wheel excavator weighs 12.5 tons.

What are the transport dimensions of the Yanmar B110W wheel excavator?

The Yanmar B110W has a transport length of 7.9 meters, a transport width of 2.5 meters, and a transport height of 2.9 meters.

What are the undercarriage specifications of the Yanmar B110W wheel excavator?

The Yanmar B110W wheel excavator is equipped with standard tyres sized 9.00-20 with 14 PR.

What is the outside turning radius of the Yanmar B110W wheel excavator?

The Yanmar B110W has an outside turning radius of 7.2 meters.

What are the excavation performance specifications of the Yanmar B110W wheel excavator?

The Yanmar B110W wheel excavator has a dredging depth of 4.44 meters and a maximum horizontal reach of 8.09 meters.

What is the tear-out force of the Yanmar B110W wheel excavator?

The Yanmar B110W wheel excavator has a tear-out force of 72 kN.

What is the bucket capacity of the Yanmar B110W wheel excavator?

The Yanmar B110W wheel excavator has a bucket capacity of 0.477 cubic meters.

How much is a Yanmar B110W Wheel excavator (2019u20132024) worth?

The residual value of the Yanmar B110W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
