XE210WLL XCMG Excavator Specs & Dimensions - (2022 - 2026)

Weight: 20.6t – Bucket capacity: 0.5m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Tear-out force: 80kN – Travel speed: 31km/h…

Weight: 20.6t – Bucket capacity: 0.5m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Tear-out force: 80kN – Travel speed: 31km/h

Check out detailed dimensions, specifications, information and technical data for XCMG XE210WLL excavator manufactured between 2022 - 2026. Get more in-depth insight with XCMG XE210WLL digger specifications. See information, like: Weight: 20.6t – Bucket capacity: 0.5m³ – Boom: MB – Outrigger stabilisers: 22/4-fold – Tear-out force: 80kN – Travel speed: 31km/h and more.

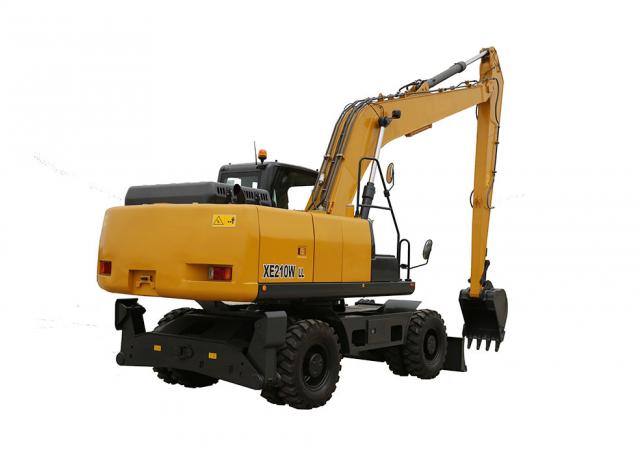

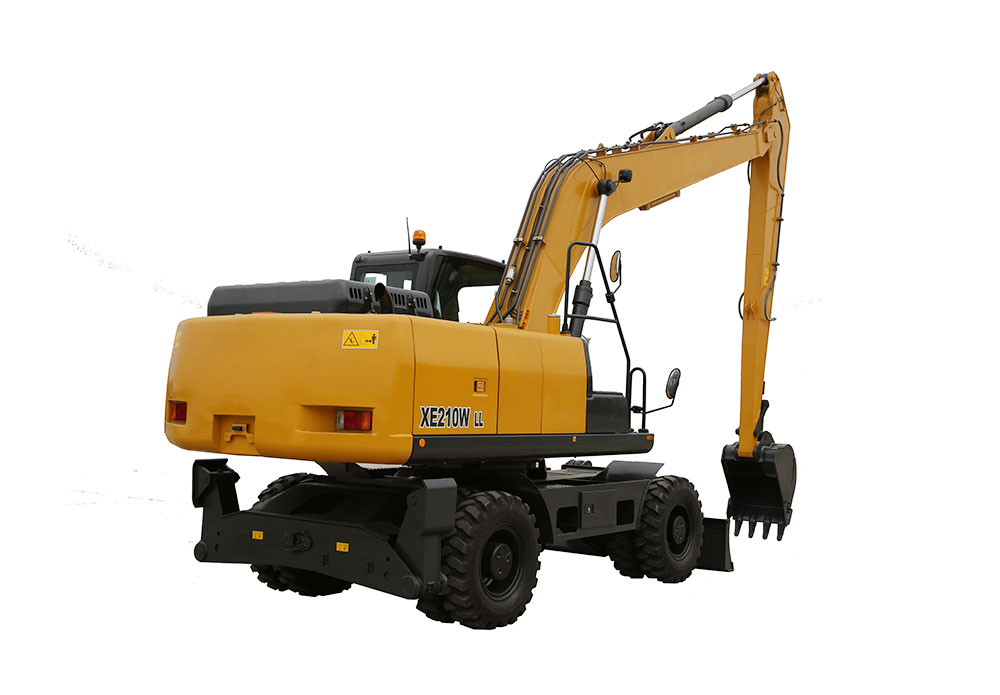

Wheel Excavators XCMG XE210WLL

Visit XCMG live at

Technical specs - XE210WLL XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
20.6 t
Bucket capacity
0.5 m³
Boom
MB
Outrigger stabilisers
2 2/4-fold
Tear-out force
80 kN
Travel speed
31 km/h
Model series
XE
Engine manuf.
Cummins
Engine type
6B5.9
Engine power
133 kW
Displacement
5.9 l
Revolutions at max torque
2000 rpm
Max. torque
708/1500 Nm

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., transport length, transport width, transport height, max. reach horizontal, dredging depth, bucket width, dipper length, turning radius inside, turning radius outside...

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., transport length, transport width, transport height, max. reach horizontal, dredging depth, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

XCMG XE210WLL FAQ

When was the XCMG XE210WLL manufactured?

The XCMG XE210WLL was first produced in 2022.

How much does the XCMG XE210WLL wheel excavator weigh?

The XCMG XE210WLL wheel excavator weighs 20.6 tons.

What is the travel speed of the XCMG XE210WLL wheel excavator?

The XCMG XE210WLL has a travel speed of 31 km/h.

What type of outrigger stabilisers does the XCMG XE210WLL wheel excavator have?

The XCMG XE210WLL wheel excavator is equipped with 2-fold outrigger stabilisers.

What power rating is specified for the XCMG XE210WLL wheel excavator?

No power rating data is available for the XCMG XE210WLL wheel excavator in the provided source.

What is the bucket capacity of the XCMG XE210WLL wheel excavator?

The bucket capacity of the XCMG XE210WLL wheel excavator is 0.5 cubic meters.

How much is a XCMG XE210WLL Wheel excavator (2022u20132025) worth?

The residual value of the XCMG XE210WLL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
