215W Sinomach Excavator Specs & Dimensions - (2023 - 2026)

Weight: 22t – Bucket capacity: 0.9m³ – Bucket capacity min.: 0.9m³ – Bucket capacity max.: 1m³ – Transport length: 9.524m – Transp…

Weight: 22t – Bucket capacity: 0.9m³ – Bucket capacity min.: 0.9m³ – Bucket capacity max.: 1m³ – Transport length: 9.524m – Transport width: 3.608m

Check out detailed dimensions, specifications, information and technical data for Sinomach 215W excavator manufactured between 2023 - 2026. Get more in-depth insight with Sinomach 215W digger specifications. See information, like: Weight: 22t – Bucket capacity: 0.9m³ – Bucket capacity min.: 0.9m³ – Bucket capacity max.: 1m³ – Transport length: 9.524m – Transport width: 3.608m and more.

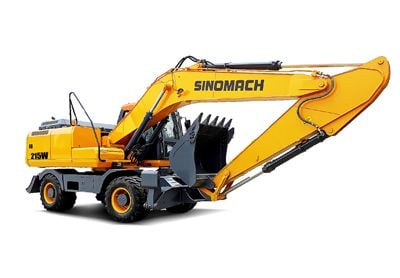

Wheel Excavators Sinomach 215W

Technical specs - 215W Sinomach

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
22 t
Bucket capacity
0.9 m³
Bucket capacity min.
0.9 m³
Bucket capacity max.
1 m³
Transport length
9.524 m
Transport width
3.608 m
Transport height
2.47 m
Max. Reach horizontal
10.638 m
Dredging depth
6.437 m
Tear-out force
152 kN
Model series
W
Engine manuf.
Yuchai
Engine type
YC6A190Z-T20
Engine power
140 kW

More technical details, like: standard tyres, boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque...

More technical details, like: standard tyres, boom, outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Sinomach 215W FAQ

When was the Sinomach 215W manufactured?

The Sinomach 215W was first produced in 2023.

How much does the Sinomach 215W wheel excavator weigh?

The Sinomach 215W wheel excavator weighs 22 tons.

What are the transport dimensions of the Sinomach 215W wheel excavator?

The Sinomach 215W has a transport length of 9.52 meters, a transport width of 3.61 meters, and a transport height of 2.47 meters.

What are the excavation performance specifications of the Sinomach 215W wheel excavator?

The Sinomach 215W wheel excavator has a dredging depth of 6.437 meters and a maximum horizontal reach of 10.638 meters.

What is the power-related specification available for the Sinomach 215W wheel excavator?

The Sinomach 215W wheel excavator does not have a specified power rating in the provided data, but it has a tear-out force of 152 kN.

What are the bucket capacity specifications of the Sinomach 215W wheel excavator?

The Sinomach 215W wheel excavator has a bucket capacity ranging from 0.9 to 1 cubic meters, with a standard bucket capacity of 0.9 cubic meters.

How much is a Sinomach 215W Wheel excavator (2023u20132025) worth?

The residual value of the Sinomach 215W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
