835 M Sennebogen Excavator Specs & Dimensions - (2008 - 2010)

Sennebogen is the manufacturer of the wheel excavator model 835 M. Find and download detailed specs and data sheets for this machi…

Sennebogen is the manufacturer of the wheel excavator model 835 M. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful Deutz engine, this 835 M 44t machine can provide 186kW or 249 horse power for the wheel excavator. The 835 M is categorised in the biggest machine segment in the wheel excavators category. The 835 M’s size is 3m x 15m x 3.45m.

Since 2008, this model has included Aircondition, Material Handling Excavator and Cabin adjustment. It does not include Diesel particulate filter, Quick hitch mech. And Quick hitch hydr.. There are more detailed specifications and machine descriptions available in the original Sennebogen 835 M specs data sheet.

This model can be acquired for a list price between €466000 and €592000. Production of the 835 M stopped in 2010. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Sennebogen currently produces 14 other wheel excavators, which range from 16.9t up to 165t - the most visited on LECTURA Specs are 821 M, 825 M, 850 M. Want more detailed specifications? Download the latest Sennebogen 835 M specs data sheet on LECTURA Specs today!

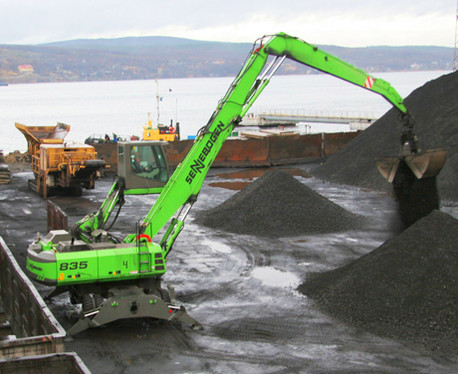

Wheel Excavators Sennebogen 835 M

Visit Sennebogen live at

Technical specs - 835 M Sennebogen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
44 t
Standard tyres
12.00-20
Boom
VA/UA
Outrigger stabilisers
2/4 2/4-fold
Transport length
15 m
Transport width
3 m
Transport height
3.45 m
Max. Reach horizontal
17 m
Travel speed
20 km/h
Model series
M
Engine manuf.
Deutz
Engine type
TCD2013 L06 2V
Engine power
186 kW
Displacement
7.1 l
Revolutions at max torque
2000 rpm

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders...

More technical details, like: bucket capacity, bucket capacity min., bucket capacity max., dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
Yes
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
No
Quick hitch mech.
No

Sennebogen 835 M FAQ

When was the Sennebogen 835 M manufactured?

The Sennebogen 835 M was manufactured from 2008 to 2010.

How much does the Sennebogen 835 M weigh?

The Sennebogen 835 M weighs 44 tons.

What are the transport dimensions of the Sennebogen 835 M wheel excavator?

The Sennebogen 835 M has a transport length of 15 meters, a width of 3 meters, and a height of 3.45 meters.

What is the travel speed of the Sennebogen 835 M wheel excavator?

The Sennebogen 835 M has a travel speed of 20 km/h.

What are the undercarriage specifications of the Sennebogen 835 M wheel excavator?

The Sennebogen 835 M wheel excavator is equipped with 12.00-20 standard tyres and has 2/4-fold outrigger stabilisers.

What are the excavation performance specifications of the Sennebogen 835 M?

The Sennebogen 835 M has a maximum horizontal reach of 17 meters and features a Material handling boom and an Adjustable boom.

How much is a Sennebogen 835 M Wheel excavator (2008u20132010) worth?

The residual value of the Sennebogen 835 M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
