830 M Sennebogen Excavator Specs & Dimensions - (1996 - 2007)

Sennebogen is the manufacturer of the wheel excavator model 830 M. Find and download detailed specs and data sheets for this machi…

Sennebogen is the manufacturer of the wheel excavator model 830 M. Find and download detailed specs and data sheets for this machine here.

This wheel excavator is built to provide up to 148kW or 198 horse power, delivered from its powerful Deutz engine to the 36t 830 M machine. The 830 M is categorised in the biggest machine segment in the wheel excavators category. The bucket capacity of 830 M is 0,6m³, which is above average for this type of machine.

Since 1996, this model has included Overload alert and Material Handling Excavator. It does not include Track guidance, Quick hitch mech. And Blade. There are more detailed specifications and machine descriptions available in the original Sennebogen 830 M specs data sheet. Available in English, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €300000 and €382000. Production of the 830 M stopped in 2007. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

The most commonly viewed Sennebogen models of this type on LECTURA Specs are the 821 M, 825 M and 850 M, and 14 other wheel excavators, which currently range from 16.9t up to 165t are also available. Want more detailed specifications? Download the latest Sennebogen 830 M specs data sheet on LECTURA Specs today!

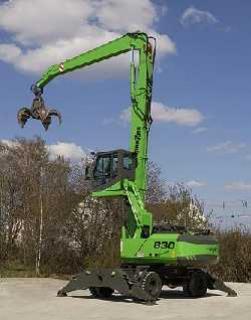

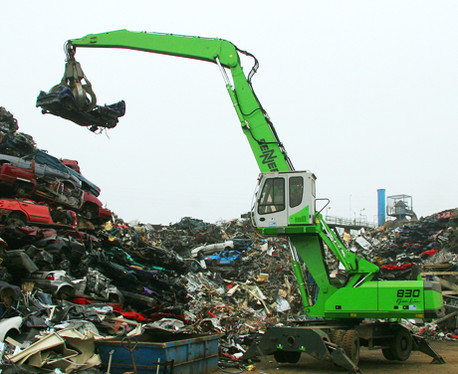

Wheel Excavators Sennebogen 830 M
Wheel Excavators Sennebogen 830 M
Wheel Excavators Sennebogen 830 M
Wheel Excavators Sennebogen 830 M

Visit Sennebogen live at

Technical specs - 830 M Sennebogen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
36 t
Standard tyres
12.00-20
Bucket capacity
0.6 m³
Boom
UA
Outrigger stabilisers
2/4 2/4-fold
Travel speed
20 km/h
Model series
M
Engine manuf.
Deutz
Engine type
TCD2013 L06 2V
Engine power
148 kW

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside...

More technical details, like: bucket capacity min., bucket capacity max., transport length, transport width, transport height, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Sennebogen 830 M FAQ

When was the Sennebogen 830 M manufactured?

The Sennebogen 830 M was manufactured from 1996 to 2007.

How much does the Sennebogen 830 M weigh?

The Sennebogen 830 M weighs 36 tons.

What is the travel speed of the Sennebogen 830 M wheel excavator?

The Sennebogen 830 M has a travel speed of 20 km/h.

What are the undercarriage specifications of the Sennebogen 830 M wheel excavator?

The Sennebogen 830 M wheel excavator is equipped with 12.00-20 standard tyres and has 2/4-fold outrigger stabilisers.

What type of boom does the Sennebogen 830 M have?

The Sennebogen 830 M has a material handling boom.

What is the bucket capacity of the Sennebogen 830 M wheel excavator?

The Sennebogen 830 M wheel excavator has a bucket capacity of 0.6 cubic meters.

How much is a Sennebogen 830 M Wheel excavator (1996u20132007) worth?

The residual value of the Sennebogen 830 M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
