REX75W RHINO Excavator Specs & Dimensions - (2017 - 2026)

Weight: 7.5t – Standard tyres: 14-17.5 – Bucket capacity: 0.26m³ – Boom: MB – Transport length: 6.5m – Transport width: 2.2m…

Weight: 7.5t – Standard tyres: 14-17.5 – Bucket capacity: 0.26m³ – Boom: MB – Transport length: 6.5m – Transport width: 2.2m

Check out detailed dimensions, specifications, information and technical data for RHINO REX75W excavator manufactured between 2017 - 2026. Get more in-depth insight with RHINO REX75W digger specifications. See information, like: Weight: 7.5t – Standard tyres: 14-17.5 – Bucket capacity: 0.26m³ – Boom: MB – Transport length: 6.5m – Transport width: 2.2m and more.

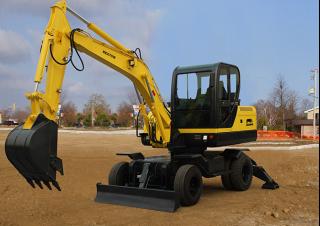

Wheel Excavators RHINO REX75W

Technical specs - REX75W RHINO

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.5 t
Standard tyres
14-17.5
Bucket capacity
0.26 m³
Boom
MB
Transport length
6.5 m
Transport width
2.2 m
Transport height
3 m
Max. Reach horizontal
5.67 m
Dredging depth
3.45 m
Tear-out force
60 kN
Model series
REX
Engine manuf.
RHINO
Engine type
RE51360
Engine power
51 kW
Displacement
3 l
No. of cylinders
4
Emission level
Tier 2

More technical details, like: bucket capacity min., bucket capacity max., outrigger stabilisers, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

RHINO REX75W FAQ

When was the RHINO REX75W manufactured?

The RHINO REX75W was first produced in 2017.

How much does the RHINO REX75W wheel excavator weigh?

The RHINO REX75W wheel excavator weighs 7.5 tons.

What are the transport dimensions of the RHINO REX75W wheel excavator?

The RHINO REX75W has a transport length of 6.5 meters, a transport width of 2.2 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the RHINO REX75W wheel excavator?

The RHINO REX75W wheel excavator is equipped with standard tyres sized 14-17.5.

What are the excavation performance specifications of the RHINO REX75W wheel excavator?

The RHINO REX75W wheel excavator has a dredging depth of 3.45 meters, a maximum horizontal reach of 5.67 meters, and features a monobloc boom.

What power rating information is available for the RHINO REX75W wheel excavator?

There is no power rating data available for the RHINO REX75W wheel excavator in the provided source data.

What is the bucket capacity of the RHINO REX75W wheel excavator?

The RHINO REX75W wheel excavator has a bucket capacity of 0.26 cubic meters.

How much is a RHINO REX75W Wheel excavator (2017u20132025) worth?

The residual value of the RHINO REX75W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
