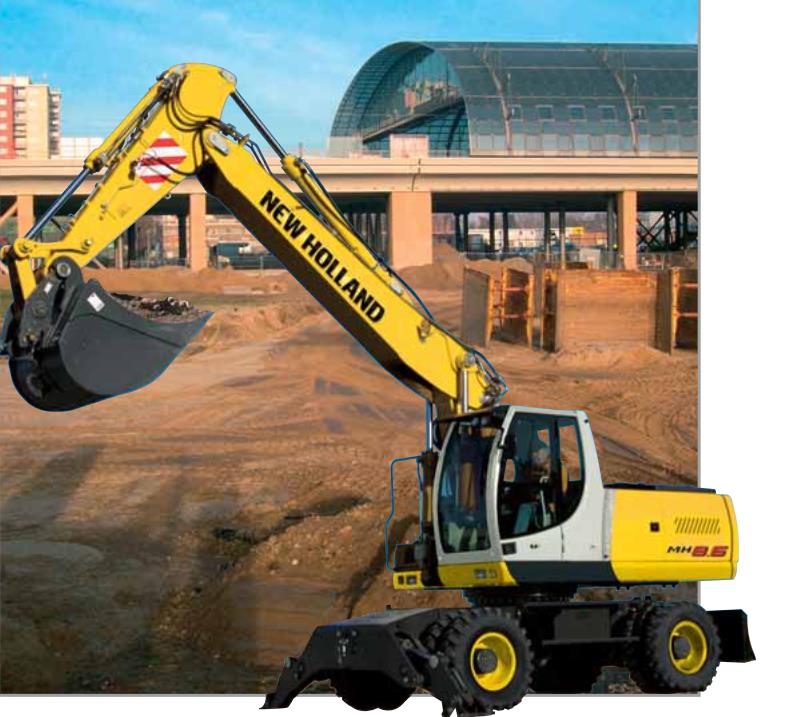

O&K MH 8.6 Specifications & Technical Data (2003-2005)

Model 2003-2005 (Other machines by O&K)

O&K is the manufacturer of the wheel excavator model MH 8.6. Find and download detailed specs and data sheets for this machine here.

Equipped with a powerful CNH engine, this MH 8.6 22.7t machine can provide 118kW or 158 horse power for the wheel excavator. The MH 8.6 is categorised in the biggest machine segment in the wheel excavators category. The MH 8.6’s size is 4.125m x 4.886m x 3.13m. The bucket capacity of MH 8.6 is 0,7m³, which is above average for this type of machine.

It does not include Aircondition, Track guidance and Overload alert. There are more detailed specifications and machine descriptions available in the original O&K MH 8.6 specs data sheet. Available in German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €219000 and €278000. Production of the MH 8.6 stopped in 2005. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

O&K currently produces other wheel excavators, which range from up to - the most visited on LECTURA Specs are. Want more detailed specifications? Download the latest O&K MH 8.6 specs data sheet on LECTURA Specs today!

Show more Show less

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Download 250 detailed technical specs & competitive intelligence data for O&K MH 8.6

See 2 datasheets

Need a reliable price for this machine?

LECTURA Valuation tool can help! Fill in this form to get the price of your specific machine.
This one-time service costs € 9,90.

Individual Valuation of O&K MH 8.6

Year * Select a year

Usage

A calculated price certificate will be sent to you shortly.

* I agree with LECTURA's Terms & Conditions.

Visa or Mastercard

Paypal

* Required

for €9.90

SSL military grade encryption

MH 8.6 O&K - Technical specs

Weight	22.7 t
Standard tyres	10.00-20
Bucket capacity	0,7 m³
Boom	MB
Transport length	4.886 m
Transport width	4.125 m
Transport height	3.13 m
Max. Reach horizontal	10,1 m
Dredging depth	5,7 m
Tear-out force	139,1 kN
Bucket width	0,9 m
Engine manuf.	CNH
Engine type	F4BE 0684A
Engine power	118 kW
Displacement	5.9 l
Outrigger stabilisers	###
Dipper length	###
Turning radius inside	###
Turning radius outside	###
Travel speed	###
Engine power	###
Dimension lxwxh	###
Revolutions at max torque	###
Max. torque	###
No. of cylinders	###
Cylinder bore x stroke	###
Weight	###
Emission level	###
Number Of Mono Booms	###
Total Number Of Dippers - Mono	###
Number Of Articulated Booms	###
Engine Manufacturer	###
Engine Model	###
Rated Speed	###
Engine Output - Net	###
Transmission Type	###
Tyre Size - Standard	###
Number Of Tyres - Standard	###
Maximum Transport Length - Mono Boom	###
Transport Height - Over Mono Boom	###
Overall Width	###
Wheelbase	###
Rear Axle To Slew Centre	###
Cab Height	###
Ground Clearance	###
Machine Width - Maximum	###
Overall Width - Stabilisers Down	###
Mono Boom Size	###
Standard Dipper Length	###
Longest Dipper Length	###
Ground Level Reach - Mono Boom	###
Maximum Dig Height - Mono Boom	###
Dump Clearance Height - Mono Boom	###
Dig Depth - Mono Boom	###
Dig Depth - Articulated Boom	###
Dozer Blade - Width	###
Fuel Tank	###
Slew Speed	###
Max bucket breakout, Mono Boom	###
Boom Pressure	###
Operating Weight	###
