7MWR Mecalac Excavator Specs & Dimensions - (2017 - 2021)

Weight: 6.92t – Standard tyres: 365/70-18 – Bucket capacity: 0.24m³ – Outrigger stabilisers: 22/4-fold – Transport length: 3.73m –…

Weight: 6.92t – Standard tyres: 365/70-18 – Bucket capacity: 0.24m³ – Outrigger stabilisers: 22/4-fold – Transport length: 3.73m – Transport width: 2.18m

Check out detailed dimensions, specifications, information and technical data for Mecalac 7MWR excavator manufactured between 2017 - 2021. Get more in-depth insight with Mecalac 7MWR digger specifications. See information, like: Weight: 6.92t – Standard tyres: 365/70-18 – Bucket capacity: 0.24m³ – Outrigger stabilisers: 22/4-fold – Transport length: 3.73m – Transport width: 2.18m and more.

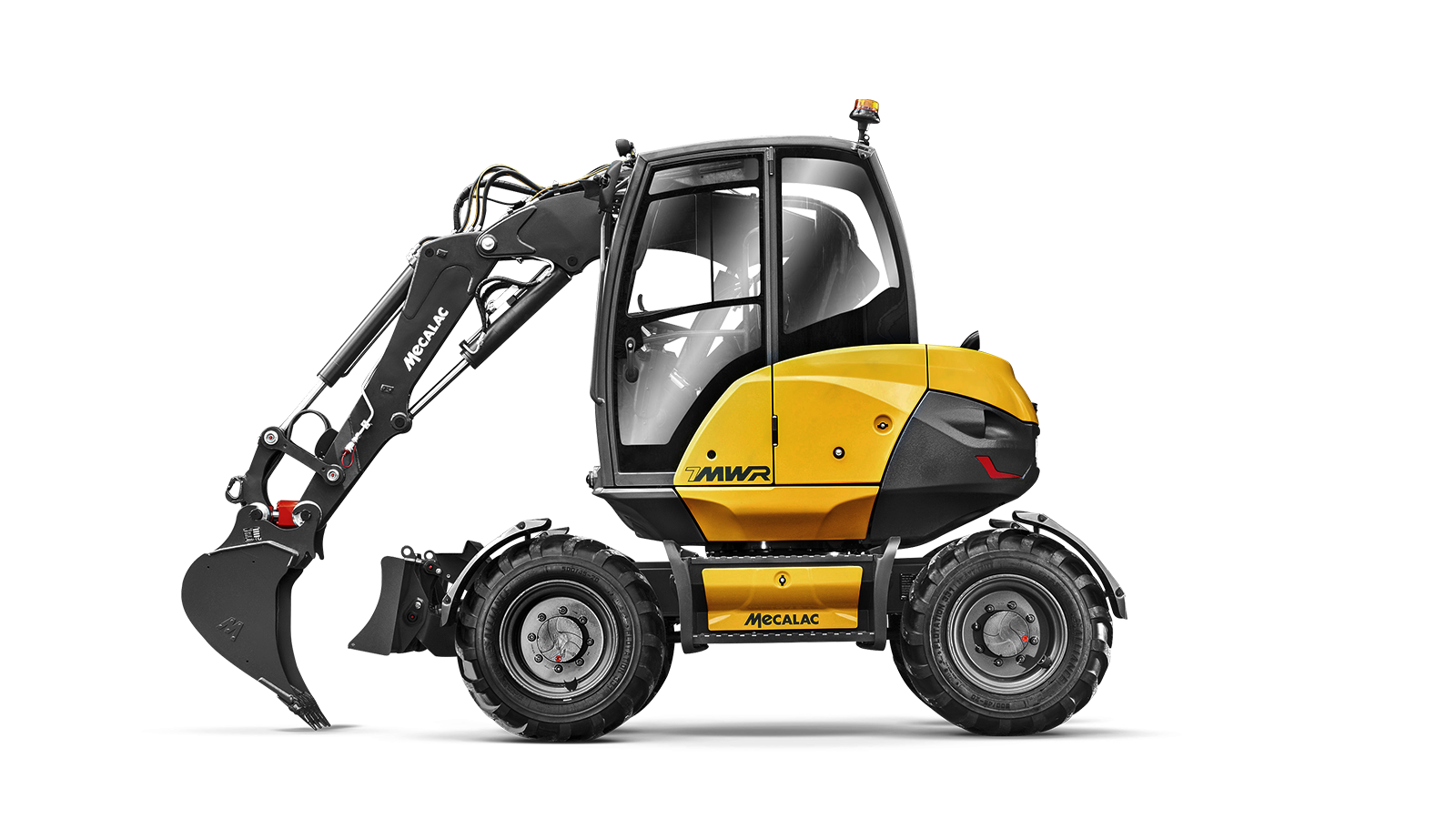

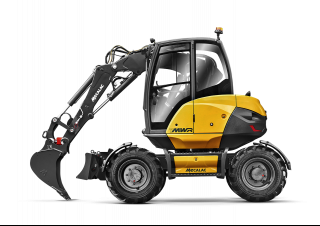

Wheel Excavators Mecalac 7MWR

Technical specs - 7MWR Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.92 t
Standard tyres
365/70-18
Bucket capacity
0.24 m³
Outrigger stabilisers
2 2/4-fold
Transport length
3.73 m
Transport width
2.18 m
Transport height
2.82 m
Max. Reach horizontal
6.22 m
Dredging depth
3.03 m
Tear-out force
25 kN
Bucket width
0.9 m
Turning radius outside
3.52 m
Travel speed
30 km/h
Model series
MWR
Engine manuf.
Deutz
Engine type
TCD2.9 L4
Engine power
55.4 kW
Revolutions at max torque
2600 rpm
Max. torque
300/1600 Nm
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: bucket capacity min., bucket capacity max., boom, dipper length, turning radius inside, dimension lxwxh, displacement, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
Yes
Quick hitch mech.
No

Download datasheets (PDF)

Mecalac 7MWR FAQ

When was the Mecalac 7MWR manufactured?

The Mecalac 7MWR was manufactured from 2017 to 2021.

How much does the Mecalac 7MWR wheel excavator weigh?

The Mecalac 7MWR wheel excavator weighs 6.92 tons.

What are the transport dimensions of the Mecalac 7MWR wheel excavator?

The Mecalac 7MWR has a transport length of 3.73 meters, a transport width of 2.18 meters, and a transport height of 2.82 meters.

What is the travel speed of the Mecalac 7MWR wheel excavator?

The Mecalac 7MWR has a travel speed of 30 km/h.

What are the undercarriage specifications of the Mecalac 7MWR wheel excavator?

The Mecalac 7MWR wheel excavator has standard tyres sized 365/70-18 and is equipped with 2 outrigger stabilisers.

What is the turning radius of the Mecalac 7MWR wheel excavator?

The Mecalac 7MWR has an outside turning radius of 3.52 meters.

What are the excavation performance specifications of the Mecalac 7MWR wheel excavator?

The Mecalac 7MWR wheel excavator has a dredging depth of 3.03 meters and a maximum horizontal reach of 6.22 meters.

What is the tear-out force of the Mecalac 7MWR wheel excavator?

The Mecalac 7MWR wheel excavator has a tear-out force of 25 kN.

What are the specifications of the primary work tool bucket on the Mecalac 7MWR wheel excavator?

The primary work tool bucket of the Mecalac 7MWR has a capacity of 0.24 cubic meters and a width of 0.9 meters.
