11 CXi Mecalac Excavator Specs & Dimensions - (1989 - 1997)

Mecalac is the manufacturer of the wheel excavator model 11 CXi. Find and download detailed specs and data sheets for this machine…

Mecalac is the manufacturer of the wheel excavator model 11 CXi. Find and download detailed specs and data sheets for this machine here.

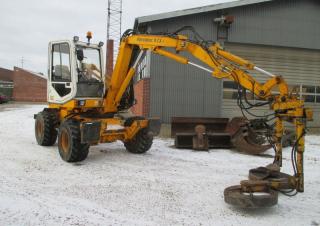

The Mecalac 11 CXi is a 7.96t machine with Deutz engine which powers this model with up to 56kW or 75 horse power. This Mecalac wheel excavator belongs to the smallest machine segment in the wheel excavators category. The model's dimensions are 4.9m x 2.3m x 2.95m. The bucket of 11 CXi has a capacity of 0,7m³ which is average for this type of machine.

Diesel particulate filter, Material Handling Excavator and Quick hitch hydr. Are not provided on this model as of 1997. There are more detailed specifications and machine descriptions available in the original Mecalac 11 CXi specs data sheet.

The production stopped in 1997, where this 11 CXi was available at a new list price between €90000 and €114000. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

Mecalac currently produces 2 other wheel excavators, which range from 9.7t up to 13.3t - the most visited on LECTURA Specs are 714 MW e, 12 MTX. Want more detailed specifications? Download the latest Mecalac 11 CXi specs data sheet on LECTURA Specs today!

Wheel Excavators Mecalac 11 CXi

Technical specs - 11 CXi Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.96 t
Standard tyres
400/70-20
Bucket capacity
0.7 m³
Transport length
4.9 m
Transport width
2.3 m
Transport height
2.95 m
Model series
CX
Engine manuf.
Deutz
Engine type
F4L913
Engine power
56 kW

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed...

More technical details, like: bucket capacity min., bucket capacity max., boom, outrigger stabilisers, max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, number of travel speeds, service brake type, width, ground clearance, reach from slew pivot - non-extending dipper, loading height - non-extending dipper, dump height - general purpose, fuel tank, bucket tearout - non-extending dipper, shovel breakout - general purpose are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Mecalac 11 CXi FAQ

When was the Mecalac 11 CXi manufactured?

The Mecalac 11 CXi was manufactured from 1989 to 1997.

How much does the Mecalac 11 CXi wheel excavator weigh?

The Mecalac 11 CXi wheel excavator weighs 7.96 tons.

What are the transport dimensions of the Mecalac 11 CXi wheel excavator?

The Mecalac 11 CXi has a transport length of 4.9 meters, a transport width of 2.3 meters, and a transport height of 2.95 meters.

What is the standard tyre size of the Mecalac 11 CXi wheel excavator?

The Mecalac 11 CXi has standard tyres sized 400/70-20.

What is the bucket capacity of the Mecalac 11 CXi wheel excavator?

The Mecalac 11 CXi wheel excavator has a bucket capacity of 0.7 cubic meters.

How much is a Mecalac 11 CXi Wheel excavator (1989u20131997) worth?

The residual value of the Mecalac 11 CXi depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
