A 922 Liebherr Excavator Specs & Dimensions - (1984 - 1994)

Weight: 21t – Bucket capacity: 0.6m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 9.486m – Transport width: 2…

Weight: 21t – Bucket capacity: 0.6m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 9.486m – Transport width: 2.59m

Check out detailed dimensions, specifications, information and technical data for Liebherr A 922 excavator manufactured between 1984 - 1994. Get more in-depth insight with Liebherr A 922 digger specifications. See information, like: Weight: 21t – Bucket capacity: 0.6m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 9.486m – Transport width: 2.59m and more.

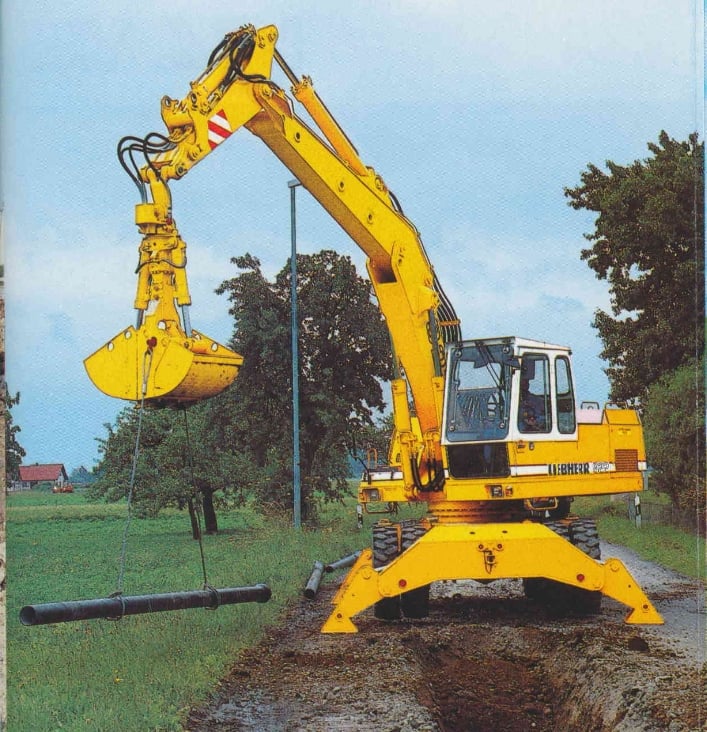

Wheel Excavators Liebherr A 922

Visit Liebherr live at

Technical specs - A 922 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21 t
Bucket capacity
0.6 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
9.486 m
Transport width
2.59 m
Transport height
3.23 m
Max. Reach horizontal
10.8 m
Dredging depth
7.4 m
Bucket width
1.35 m
Turning radius inside
4.18 m
Turning radius outside
7.4 m
Engine manuf.
Liebherr
Engine type
D904 T
Engine power
130 kW
Revolutions at max torque
2650 rpm

More technical details, like: standard tyres, bucket capacity min., bucket capacity max., tear-out force, dipper length, travel speed, model series, dimension lxwxh, displacement, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Liebherr A 922 FAQ

When was the Liebherr A 922 manufactured?

The Liebherr A 922 was manufactured from 1984 to 1994.

How much does the Liebherr A 922 wheel excavator weigh?

The Liebherr A 922 wheel excavator weighs 21 tons.

What are the transport dimensions of the Liebherr A 922 wheel excavator?

The Liebherr A 922 wheel excavator has a transport length of 9.49 meters, a transport width of 2.59 meters, and a transport height of 3.23 meters.

How many folds do the outrigger stabilisers of the Liebherr A 922 have?

The Liebherr A 922 has 2-fold outrigger stabilisers.

What are the outside and inside turning radius specifications of the Liebherr A 922 wheel excavator?

The Liebherr A 922 wheel excavator has an outside turning radius of 7.4 meters and an inside turning radius of 4.18 meters.

What are the excavation performance specifications of the Liebherr A 922 wheel excavator?

The Liebherr A 922 wheel excavator has a dredging depth of 7.4 meters, a maximum horizontal reach of 10.8 meters, and features an adjustable boom.

What are the bucket specifications of the Liebherr A 922 wheel excavator?

The Liebherr A 922 wheel excavator has a bucket capacity of 0.6 cubic meters and a bucket width of 1.35 meters.

How much is a Liebherr A 922 Wheel excavator (1984u20131994) worth?

The residual value of the Liebherr A 922 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
