A 912 Compact Litronic G6.1 Liebherr Excavator Specs & Dimensions - (2020 - 2026)

Weight: 13t – Standard tyres: 9.00-20 – Bucket capacity: 0.33m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: …

Weight: 13t – Standard tyres: 9.00-20 – Bucket capacity: 0.33m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.4m

Check out detailed dimensions, specifications, information and technical data for Liebherr A 912 Compact Litronic G6.1 excavator manufactured between 2020 - 2026. Get more in-depth insight with Liebherr A 912 Compact Litronic G6.1 digger specifications. See information, like: Weight: 13t – Standard tyres: 9.00-20 – Bucket capacity: 0.33m³ – Boom: VA – Outrigger stabilisers: 22/4-fold – Transport length: 8.4m and more.

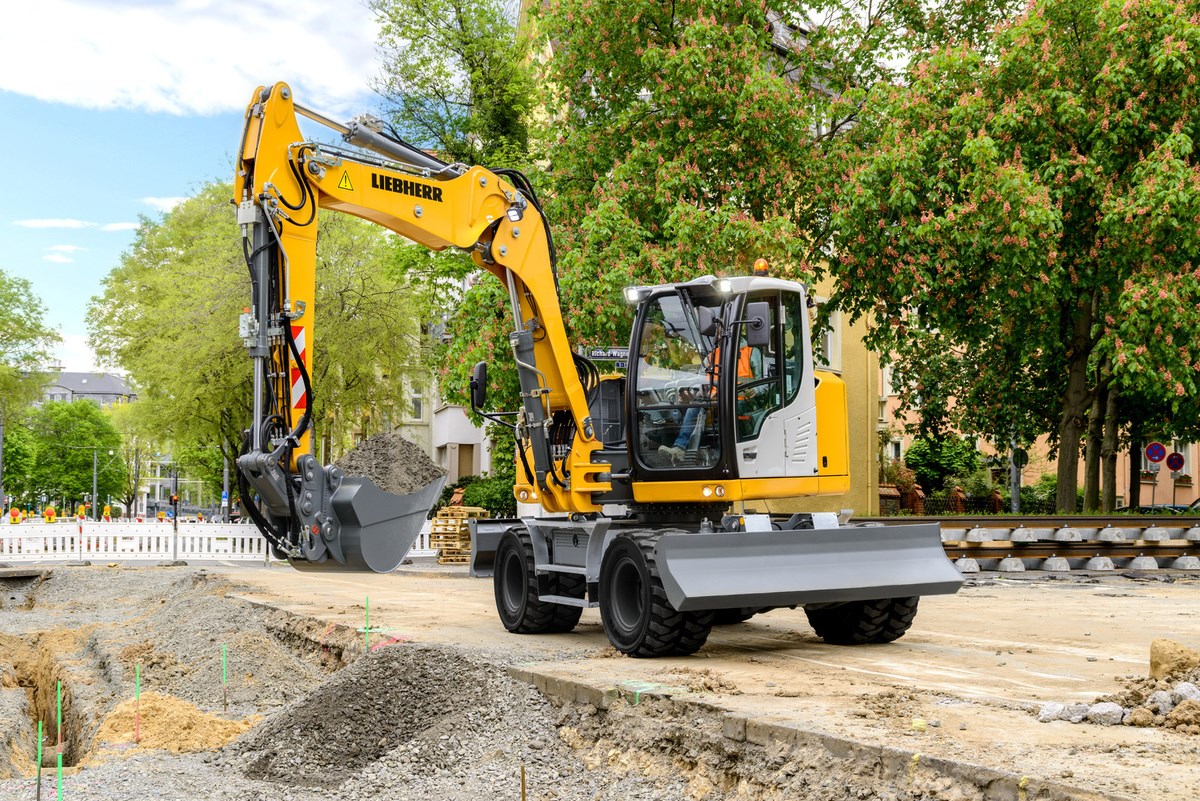

Wheel Excavators Liebherr A 912 Compact Litronic G6.1

Visit Liebherr live at

Technical specs - A 912 Compact Litronic G6.1 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13 t
Standard tyres
9.00-20
Bucket capacity
0.33 m³
Boom
VA
Outrigger stabilisers
2 2/4-fold
Transport length
8.4 m
Transport width
2.55 m
Transport height
3.15 m
Max. Reach horizontal
8.5 m
Dredging depth
4.35 m
Tear-out force
70.8 kN
Bucket width
0.75 m
Dipper length
2.05 m
Turning radius outside
4.29 m
Travel speed
30 km/h
Engine manuf.
Deutz
Engine type
TCD3.6 L4
Engine power
90 kW
Displacement
3.6 l
Revolutions at max torque
1800 rpm
No. of cylinders
4
Cylinder bore x stroke
98x120 mm
Emission level
V

More technical details, like: bucket capacity min., bucket capacity max., turning radius inside, model series, dimension lxwxh, max. torque are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Liebherr A 912 Compact Litronic G6.1 FAQ

When was the Liebherr A 912 Compact Litronic manufactured?

The Liebherr A 912 Compact Litronic was first produced in 2020.

How much does the Liebherr A 912 Compact Litronic weigh?

The Liebherr A 912 Compact Litronic weighs 13 tons.

What are the transport dimensions of the Liebherr A 912 Compact Litronic wheel excavator?

The Liebherr A 912 Compact Litronic has a transport length of 8.4 meters, a transport width of 2.55 meters, and a transport height of 3.15 meters.

What is the travel speed of the Liebherr A 912 Compact Litronic wheel excavator?

The Liebherr A 912 Compact Litronic has a travel speed of 30 km/h.

What are the undercarriage specifications of the Liebherr A 912 Compact Litronic wheel excavator?

The Liebherr A 912 Compact Litronic is equipped with 9.00-20 standard tyres and has 2 outrigger stabilisers.

What is the turning radius of the Liebherr A 912 Compact Litronic wheel excavator?

The Liebherr A 912 Compact Litronic has an outside turning radius of 4.29 meters.

What are the excavation performance specifications of the Liebherr A 912 Compact Litronic wheel excavator?

The Liebherr A 912 Compact Litronic has an adjustable boom, a dredging depth of 4.35 meters, a maximum horizontal reach of 8.5 meters, and a dipper length of 2.05 meters.

What is the tear-out force of the Liebherr A 912 Compact Litronic?

The Liebherr A 912 Compact Litronic has a tear-out force of 70.8 kN.

What are the bucket specifications of the Liebherr A 912 Compact Litronic wheel excavator?

The Liebherr A 912 Compact Litronic has a bucket capacity of 0.33 cubic meters and a bucket width of 0.75 meters.

How much is a Liebherr A 912 Compact Litronic Wheel excavator (2020u20132025) worth?

The residual value of the Liebherr A 912 Compact Litronic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
