PW220-7MH Komatsu Excavator Specs & Dimensions - (2006 - 2007)

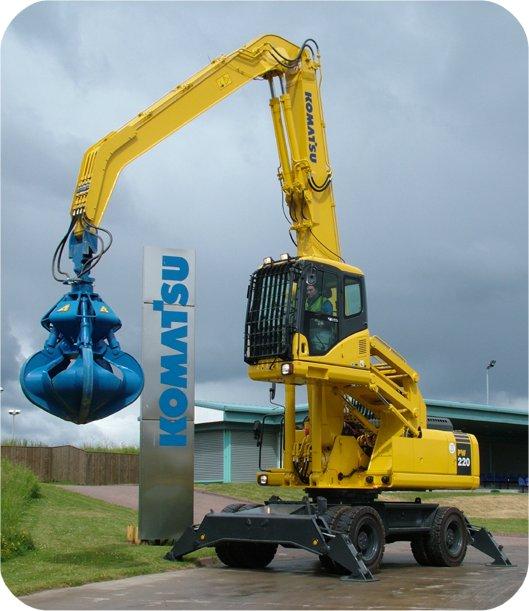

Manufactured by Komatsu, this is the PW 220-7 MH wheel excavator. Find and download detailed specs and data sheets for this machin…

Manufactured by Komatsu, this is the PW 220-7 MH wheel excavator. Find and download detailed specs and data sheets for this machine here.

The Komatsu PW 220-7 MH is a 23.3t machine with Komatsu engine which powers this model with up to 118kW or 158 horse power. This Komatsu wheel excavator belongs to the biggest machine segment in the wheel excavators category. The PW 220-7 MH’s size is 3.94m x 9.83m x 3m. The bucket capacity of PW 220-7 MH is 1,2m³, which is above average for this type of machine.

The PW 220-7 MH is manufactured and distributed with Material Handling Excavator and Overload alert. It has been sold without air Quick hitch mech., Aircondition and Track guidance as of 2007. There are more detailed specifications and machine descriptions available in the original Komatsu PW 220-7 MH specs data sheet. Available in Spanish, German, English and French, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

This model can be acquired for a list price between €249000 and €317000. Production of the PW 220-7 MH stopped in 2007. For more detailed information about pricing and current residual values, check out the LECTURA Valuation system.

At present, 9 other wheel excavators, which range from 10t up to 18.6t are produced by Komatsu. Of these, PW 160-10, PW 98 MR 8 and also PW 118 MR 8 are the most frequently visited on LECTURA Specs. Want more detailed specifications? Download the latest Komatsu PW 220-7 MH specs data sheet on LECTURA Specs today!

Wheel Excavators Komatsu PW220-7MH

Visit Komatsu live at

Technical specs - PW220-7MH Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
23.3 t
Standard tyres
11.00-20
Bucket capacity
1.2 m³
Boom
MB/VA
Outrigger stabilisers
2/4 2/4-fold
Transport length
9.83 m
Transport width
3.94 m
Transport height
3 m
Model series
PW
Engine manuf.
Komatsu
Engine type
SAA6D102E-2
Engine power
118 kW
Displacement
5.88 l
Revolutions at max torque
1950 rpm

More technical details, like: bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque...

More technical details, like: bucket capacity min., bucket capacity max., max. reach horizontal, dredging depth, tear-out force, bucket width, dipper length, turning radius inside, turning radius outside, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, number of mono booms, total number of dippers - mono, number of articulated booms, engine manufacturer, engine model, rated speed, engine output - net, transmission type, number of tyres - standard, tyre size - standard, maximum transport length - mono boom, transport height - over mono boom, overall width, machine width - maximum, wheelbase, rear axle to slew centre, tailswing radius, cab height, ground clearance, overall width - stabilisers down, mono boom size, standard dipper length, longest dipper length, ground level reach - mono boom, maximum dig height - mono boom, dump clearance height - mono boom, dig depth - mono boom, ground level reach - articulated boom, maximum dig height - articulated boom, dump clearance height - articulated boom, dig depth - articulated boom, dozer blade - width, fuel tank, slew speed, dipper standard, boost tearout mono, max bucket breakout, mono boom, number of main pumps, main pumps - maximum flow, boom pressure, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
No
Blade
No
Cabin adjustment
No
Overload alert
Yes
Material Handling Excavator
Yes
Track guidance
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Komatsu PW220-7MH FAQ

When was the Komatsu PW220-7MH manufactured?

The Komatsu PW220-7MH was manufactured from 2006 to 2007.

How much does the Komatsu PW220-7MH weigh?

The Komatsu PW220-7MH weighs 23.3 tons.

What are the transport dimensions of the Komatsu PW220-7MH wheel excavator?

The Komatsu PW220-7MH has a transport length of 9.83 meters, a transport width of 3.94 meters, and a transport height of 3 meters.

What are the undercarriage specifications of the Komatsu PW220-7MH wheel excavator?

The Komatsu PW220-7MH is equipped with standard tyres sized 11.00-20 and features 2/4-fold outrigger stabilisers.

What type of boom does the Komatsu PW220-7MH wheel excavator use?

The Komatsu PW220-7MH wheel excavator uses a monobloc boom and an adjustable boom.

What is the bucket capacity of the Komatsu PW220-7MH wheel excavator?

The Komatsu PW220-7MH wheel excavator has a bucket capacity of 1.2 cubic meters.

How much is a Komatsu PW220-7MH Wheel excavator (2006u20132007) worth?

The residual value of the Komatsu PW220-7MH depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
