210C W John Deere Construction Excavator Specs & Dimensions - (2005 - 2009)

Weight: 21.12t – Bucket capacity: 0.73m³ – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 0.99m³ – Boom: MB – Outrigger stab…

Weight: 21.12t – Bucket capacity: 0.73m³ – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 0.99m³ – Boom: MB – Outrigger stabilisers: 42/4-fold

Check out detailed dimensions, specifications, information and technical data for John Deere Construction 210C W excavator manufactured between 2005 - 2009. Get more in-depth insight with John Deere Construction 210C W digger specifications. See information, like: Weight: 21.12t – Bucket capacity: 0.73m³ – Bucket capacity min.: 0.45m³ – Bucket capacity max.: 0.99m³ – Boom: MB – Outrigger stabilisers: 42/4-fold and more.

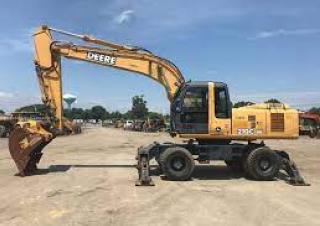

Wheel Excavators John Deere Construction 210C W

Technical specs - 210C W John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.12 t
Bucket capacity
0.73 m³
Bucket capacity min.
0.45 m³
Bucket capacity max.
0.99 m³
Boom
MB
Outrigger stabilisers
4 2/4-fold
Transport length
9.81 m
Transport width
2.5 m
Transport height
3.11 m
Max. Reach horizontal
10.15 m
Dredging depth
6.42 m
Tear-out force
102 kN
Bucket width
0.915 m
Travel speed
25 km/h
Model series
G
Engine manuf.
John Deere
Engine type
6BG1T
Engine power
110 kW
Displacement
6.494 l
Max. torque
550 Nm
No. of cylinders
6
Emission level
EPA Tier II

More technical details, like: standard tyres, dipper length, turning radius inside, turning radius outside, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, FOPS, standard boom and standard bucket

Special equipment

Diesel particulate filter
Yes
Blade
Yes
Cabin adjustment
Yes
Overload alert
No
Material Handling Excavator
No
Track guidance
No
Aircondition
Yes
Quick hitch hydr.
Yes
Quick hitch mech.
Yes

Download datasheets (PDF)

John Deere Construction 210C W FAQ

When was the John Deere Construction 210C W manufactured?

The John Deere Construction 210C W was manufactured from 2005 to 2009.

How much does the John Deere Construction 210C W weigh?

The John Deere Construction 210C W weighs 21.12 tons.

What are the transport dimensions of the John Deere Construction 210C W wheel excavator?

The John Deere Construction 210C W has a transport length of 9.81 meters, a transport width of 2.5 meters, and a transport height of 3.11 meters.

What is the travel speed of the John Deere Construction 210C W wheel excavator?

The John Deere Construction 210C W wheel excavator has a travel speed of 25 km/h.

How many outrigger stabilisers (2/4-fold) does the John Deere Construction 210C W have?

The John Deere Construction 210C W has 4 outrigger stabilisers (2/4-fold).

What are the excavation performance specifications of the John Deere Construction 210C W wheel excavator?

The John Deere Construction 210C W wheel excavator has a dredging depth of 6.42 meters, a maximum horizontal reach of 10.15 meters, and features a monobloc boom.

What is the tear-out force of the John Deere Construction 210C W wheel excavator?

The John Deere Construction 210C W wheel excavator has a tear-out force of 102 kN.

What are the bucket specifications of the John Deere Construction 210C W wheel excavator?

The John Deere Construction 210C W has a bucket capacity of 0.73 mu00b3, with a maximum capacity of 0.99 mu00b3 and a minimum capacity of 0.45 mu00b3, and a bucket width of 0.915 meters.

How much is a John Deere Construction 210C W Wheel excavator (2005u20132009) worth?

The residual value of the John Deere Construction 210C W depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
